Single Furrow Plough
- Regular price Price ex VAT: £255.00
- Regular price Price inc VAT: £255.00
The single plough is suitable for ploughing previously cultivated ground and is ideal for "wintering over" once the crop has been lifted.

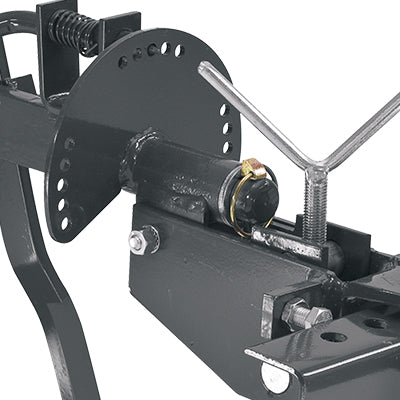

The digging depth is easily adjustable by rotating the Y-shaped lever to raise or lower the plough and at the end of each row the plough can be easily pivoted so that the operator is working in a single furrow.

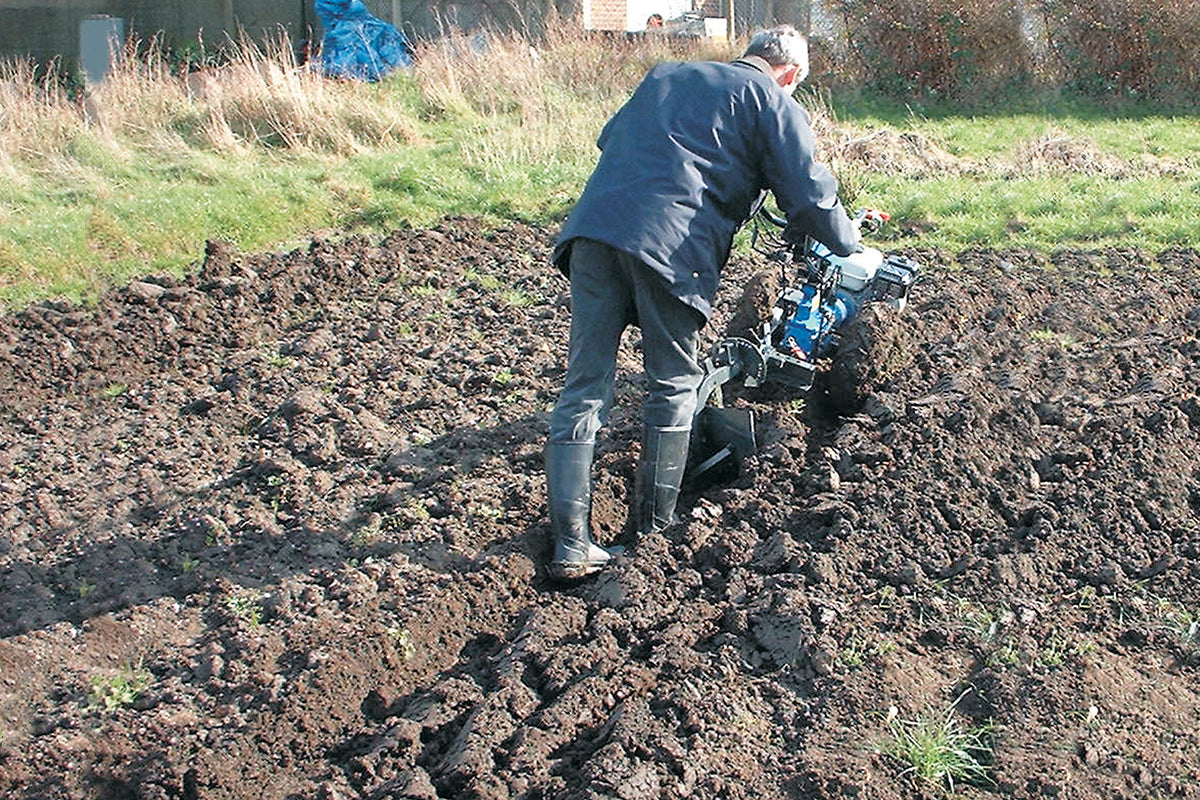

This plough relies on the traction of the power unit to pull it through the ground and therefore the optional spade lug wheels can be very beneficial for providing additional traction. Wheel weights are also available as an option.
| Single Furrow Plough | |
| Working Depth | Adjustable |
| Dimensions (L W H) | 86 x 42 x 46cm |
| Weight | 16kg |
Which power units will the single furrow plough fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | ✔ |
| BCS 740 | ✔ |
| BCS 750 | ✔ |
| BCS 770HY | ✔ |
| BCS 614 | |
| BCS 615 | |
| BCS 618 | |
| BCS 630 | |
| BCS 630WS | |
| BCS 660HY |
What are the minimum power unit requirements?
8.4hp petrol or 6.1hp diesel engine.
Three working speeds.
Locking differential.
4.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then a Blank Coupler will be required.
Is there anything else required?
Spade lug wheels may be beneficial and/or wheel weights if extra traction is needed.
Parts Diagrams
 |
BCS Single Furrow Plough Diagram |
Operating Manuals
|
Operating BCS Single Furrow Plough |
 |
Original BCS Ploughs and Ridgers Owner's Manual |
- Features
-

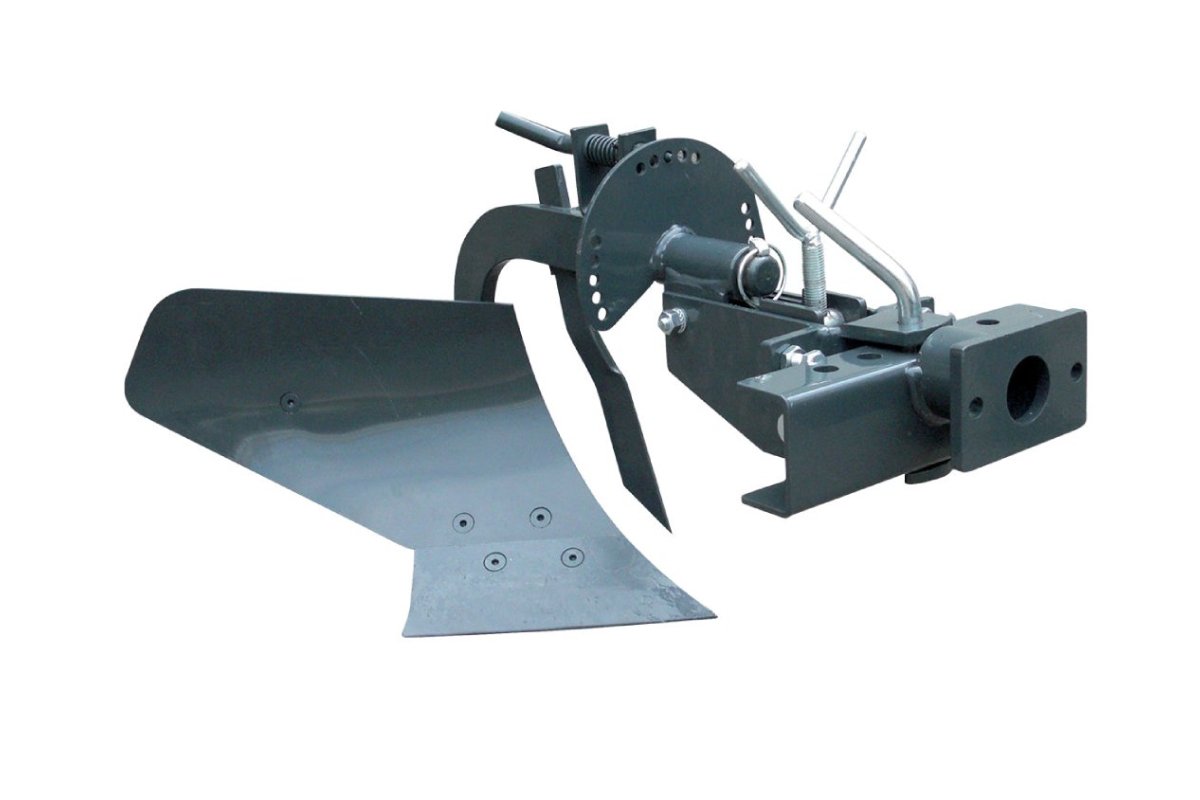

The single plough is similar to a traditional plough in that it has a single solid mouldboard tipped with a ploughshare, which rolls the soil up and off to the right hand side. In front of the mouldboard is a coulter, or knife, which cuts the soil first.
The digging depth is easily adjustable by rotating the Y-shaped lever to raise or lower the plough and at the end of each row the plough can be easily pivoted so that the operator is working in a single furrow.
This plough relies on the traction of the power unit to pull it through the ground and therefore the optional spade lug wheels can be very beneficial for providing additional traction. Wheel weights are also available as an option.
- SPECIFICATION
-
Single Furrow Plough Working Depth Adjustable Dimensions (L W H) 86 x 42 x 46cm Weight 16kg - COMPATIBILITY
-
Which power units will the single furrow plough fit to?
BCS 710 BCS 728 BCS 738 ✔ BCS 740 ✔ BCS 750 ✔ BCS 770HY ✔ BCS 614 BCS 615 BCS 618 BCS 630 BCS 630WS BCS 660HY What are the minimum power unit requirements?
8.4hp petrol or 6.1hp diesel engine.
Three working speeds.
Locking differential.
4.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then a Blank Coupler will be required.
Is there anything else required?
Spade lug wheels may be beneficial and/or wheel weights if extra traction is needed.
- VIDEOS
-
- DOWNLOADS
-
Parts Diagrams
BCS Single Furrow Plough Diagram Operating Manuals
Operating BCS Single Furrow Plough Original BCS Ploughs and Ridgers Owner's Manual
