CAMON EXPERTISE

UK manufacturer CAMON is a specialist in the design of scarifiers and they have been using their experience to create hard working and reliable machines for over 25 years. All of the rotors are designed using specialist materials such as spring steel for the standard tines and the HardEdge tipping of blades when extra hardness is required. The feedback from customers over the many years of production has led to a process of continued improvement and to the manufacture of scarifiers that won't let you down.

SPECIFICATION

Engine	Honda GX160 Petrol
Working Width	42cm (17")
Cartridge Options	Free swinging blades (30 blades)
	Verticutter blades (36 blades)
	Spring rake (30 springs)
	Fixed blades (15 blades)
	Renovation blades (15 blades)
	'Stay Sharp' blades (36 blades)
Wheels	Narrow solid wheels fitted with wheel scrapers (rear wheels)
Wheels	Wider solid wheels (no wheel scrapers)
Collection Bag	Optional (55L)
Weight	68kg
Dimensions (L W H)	120cm x 59cm x 98cm
Warranty	Domestic use - 3 years
Warranty	Commercial use - 2 years

FEATURES

Fine Height Adjustment

Improved height adjustment knob speeds up and simplifies blade adjustment.

Angled Back Flap

Allows for efficient discharge of moss and thatch.

Simple Operation

A safe, yet simple, two-step system for operating the Scarifier.

Anti-Vibration Handlebars

Fitted as standard with anti-vibration rubbers in the handlebars.

Optional Anti-Vibration Mounts

Optional anti-vibration mounts to further reduce vibration.

Fixed Front Axle

Determines the height of the blades for precise scarification.

Honda Petrol Engine

The LS42 is powered by the reliable Honda GX160 engine.

Puncture Proof Wheels

Solid wheels mean no punctures and so minimises machine down-time.

Quick Folding Handlebars

Fitted with simple, quick folding handlebars for convenience.

Collection Bag

This optional 55L collection bag will collect the moss and thatch as you scarify.

Narrow Width

At just 59cm wide the LS42B1 can easily get through standard garden gates.

Choice of Wheels

Choose from narrow wheels fitted with wheel scrapers, or wider profile wheels.

CARTRIDGE OPTIONS

Free Swinging Blade Cartridge
Our most popular cartridge has independently sprung free-swinging ‘waisted’ blades with a staggered layout for maximum efficiency.

• 30 "waisted" blades
• 1.6mm thick
• Staggered layout
• Free swinging
• Seasonal scarifying

Verticutter Cartridge
The blades are close together in a staggered layout for removing weed grass and grooming lawns all year round.

• 36 blades with 9 tips
• 1.0mm thick
• Staggered layout
• Fixed position
• Grooming and removing weed grasses

Fixed Blade Cartridge
For lawns where slitting is required, this cartridge is mounted with heavy-duty 2mm thick fixed blades which will perform deep scarification to improve drainage and allow for overseeding.

• 15 blades
• 2.0mm thick with HardEdge option
• Alternate layout
• Fixed position
• For slitting/overseeding

Spring Rake Cartridge
Durable free-swinging springs effortlessly clean lawns of unwanted moss and thatch without aggressively disrupting the healthy growing grass allowing for all year round scarification.

• 30 springs
• 2.5mm thick
• Staggered layout
• Free swinging
• All-year round scarifying

Renovation Cartridge
Where complete renovation is required, this cartridge is mounted with heavy-duty 2mm thick fixed blades which will rip out the old grass allowing for renewal.

• 15 blades
• 2.0mm thick with HardEdge option
• Alternate layout
• Fixed position
• For lawn renewal

'Stay Sharp' Cartridge
For the toughest conditions, these blades are made of 3mm Hardox® to keep sharp for longer and provide great results.

• 15 blades
• 3.0mm thick
• Staggered layout
• Free swinging
• For extra tough conditions

OTHER CAMON SCARIFIERS

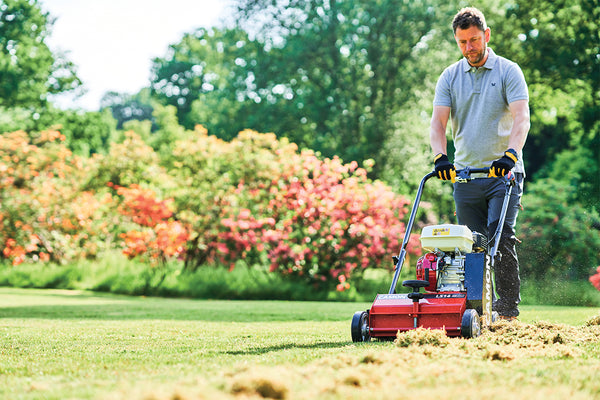

CAMON LS14B1 Lawn Scarifier

• 42cm working width
• Honda GP160 or GX160 engine

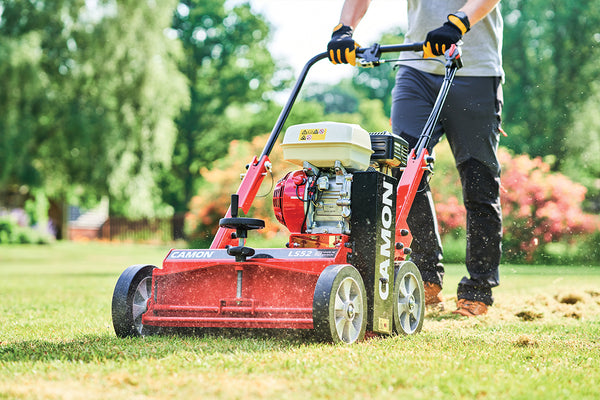

CAMON LS52 Lawn Scarifier

• 52cm working width
• Honda GX200 engine

LS42B1 DOWNLOADS

• Go to Parts Diagrams download page
• Go to Operating Manuals download page
• Go to Technical Bulletins download page

Back to CAMON Lawn Scarifiers

CAMON Products

LANDSCAPE MACHINERY YOU CAN TRUST.

CAMON LS14 Lawn Scarifier

CAMON LS42 Lawn Scarifier

CAMON LS52 Lawn Scarifier

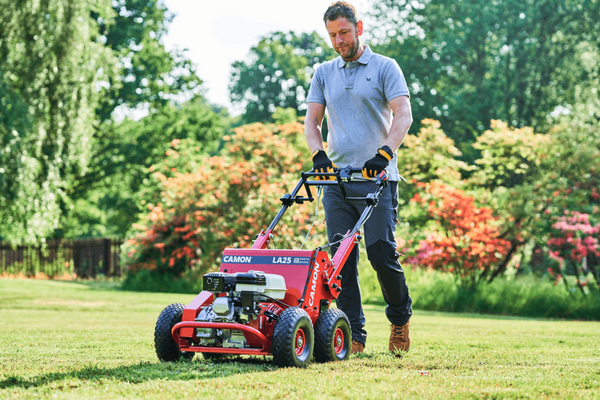

CAMON LA25 Lawn Aerator

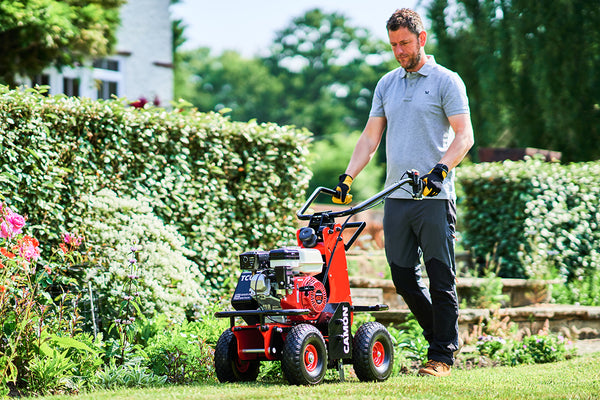

CAMON TC07 Turf Cutter

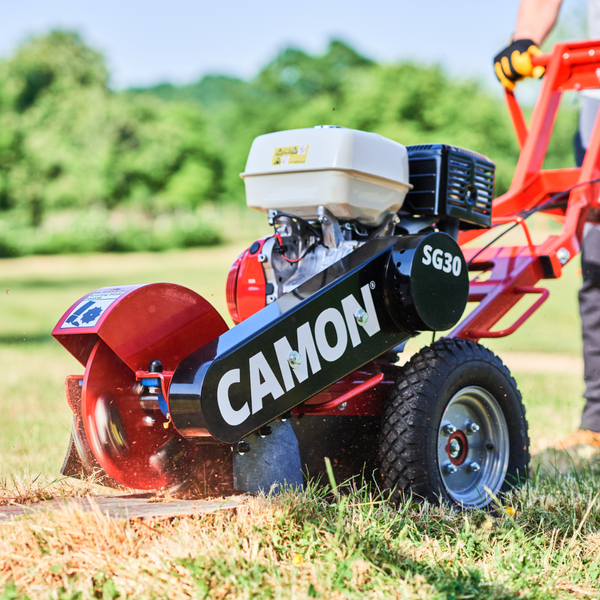

CAMON SG30 Stump Grinder
