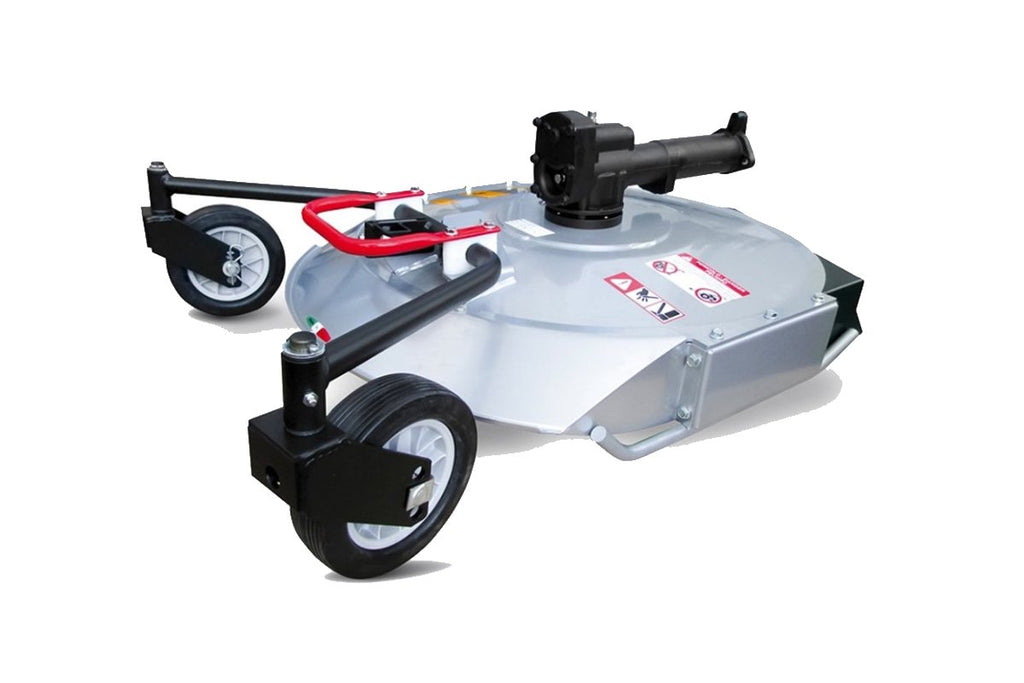

The BCS mulching mower is 80cm (32”) wide and is ideal for cutting areas where collection isn’t necessary and that would be too much for a traditional rotary mower.
This superb mower features a floating front axle which enables the deck to follow ground contours, and retractable castor wheels so the mower can run on the side skids if the vegetation is particularly thick.
The cutting height is adjusted via spacers on the blade and the front castor wheels can be adjusted for different power units.

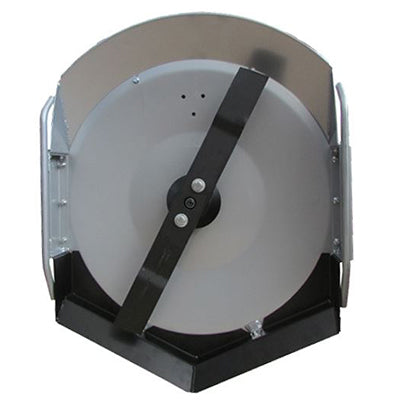

The mower has transmission with oil bath gears, and a solid steel structure which ensures durability over time. The ¼" thick cutting blade can be easily sharpened.
| Mulching Mower | ||
| Cutting Width | 80cm (32") | |
| Cutting Height | Adjustable | |
| Cutting Blades | 1 | |
| Dimensions (L W H) | 90 x 82 x 38cm | |
| Weight | 70kg | |
Which power units will the mulching mower fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | ✔ |
| BCS 740 | ✔ |
| BCS 750 | ✔ |
| BCS 770HY | ✔ |
| BCS 614 | |
| BCS 615 | |
| BCS 618 | |
| BCS 630 | ✔ |
| BCS 630WS | ✔ |
| BCS 660HY | ✔ |
What are the minimum power unit requirements?
8.4hp petrol or 6.1hp diesel engine.
Two working speeds.
Locking differential.
4.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.
Please note: The BCS 660HY and 750 power units have their own specific coupler.
Is there anything else required?
If the machine is being used on a slope then twin wheels or steel bank wheels may be beneficial for improved traction and stability.
