Stump Grinder
- Regular price Price ex VAT: £1,645.00
- Regular price Price inc VAT: £1,645.00

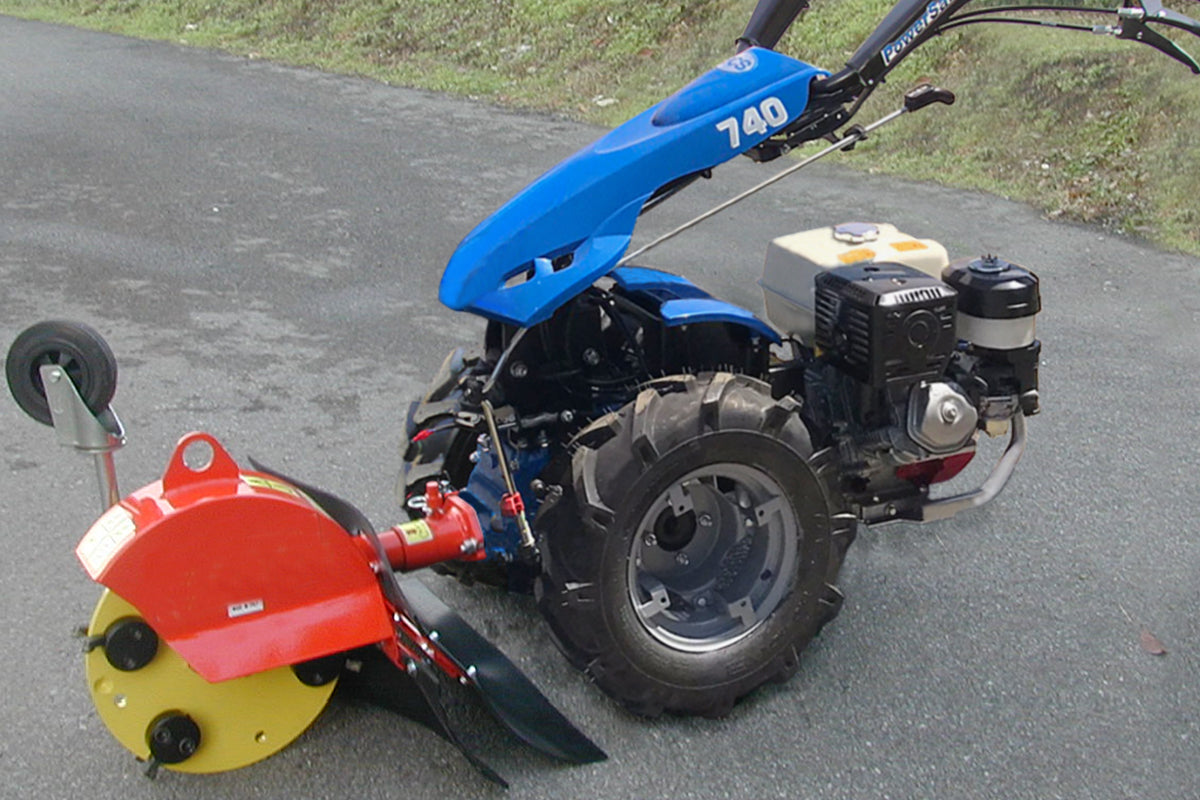

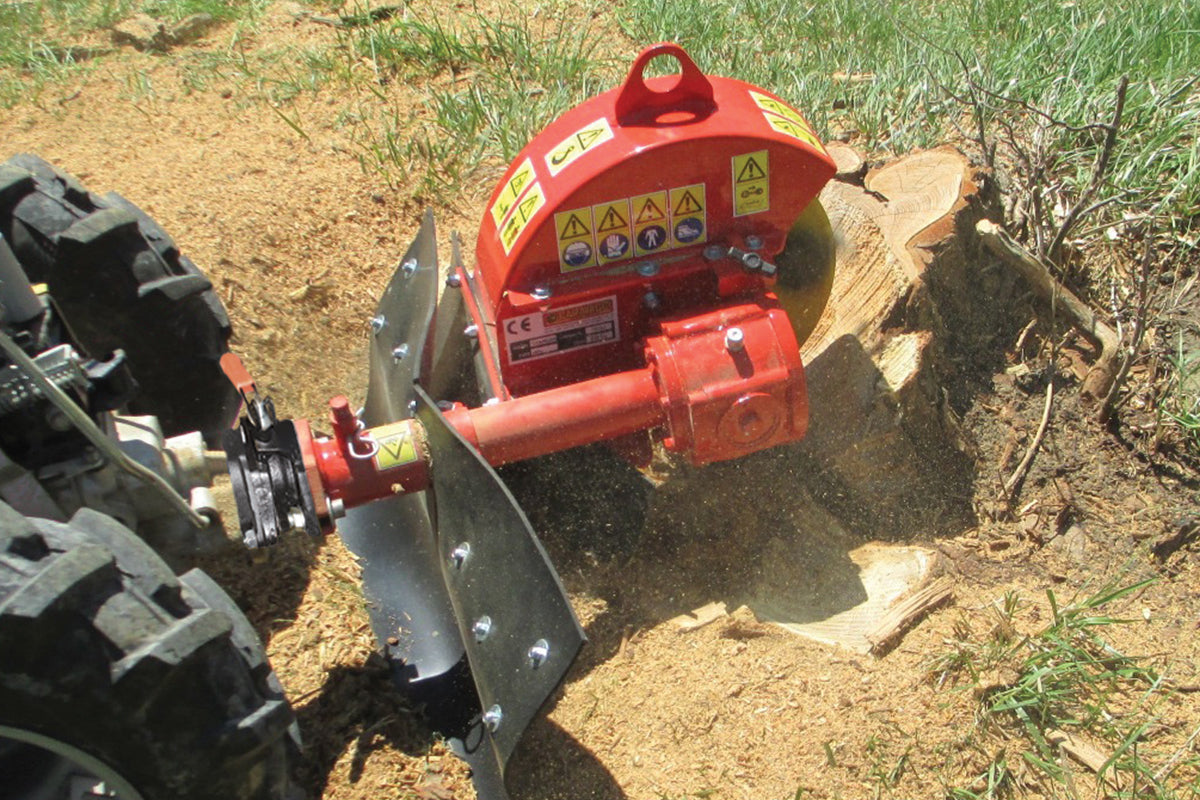

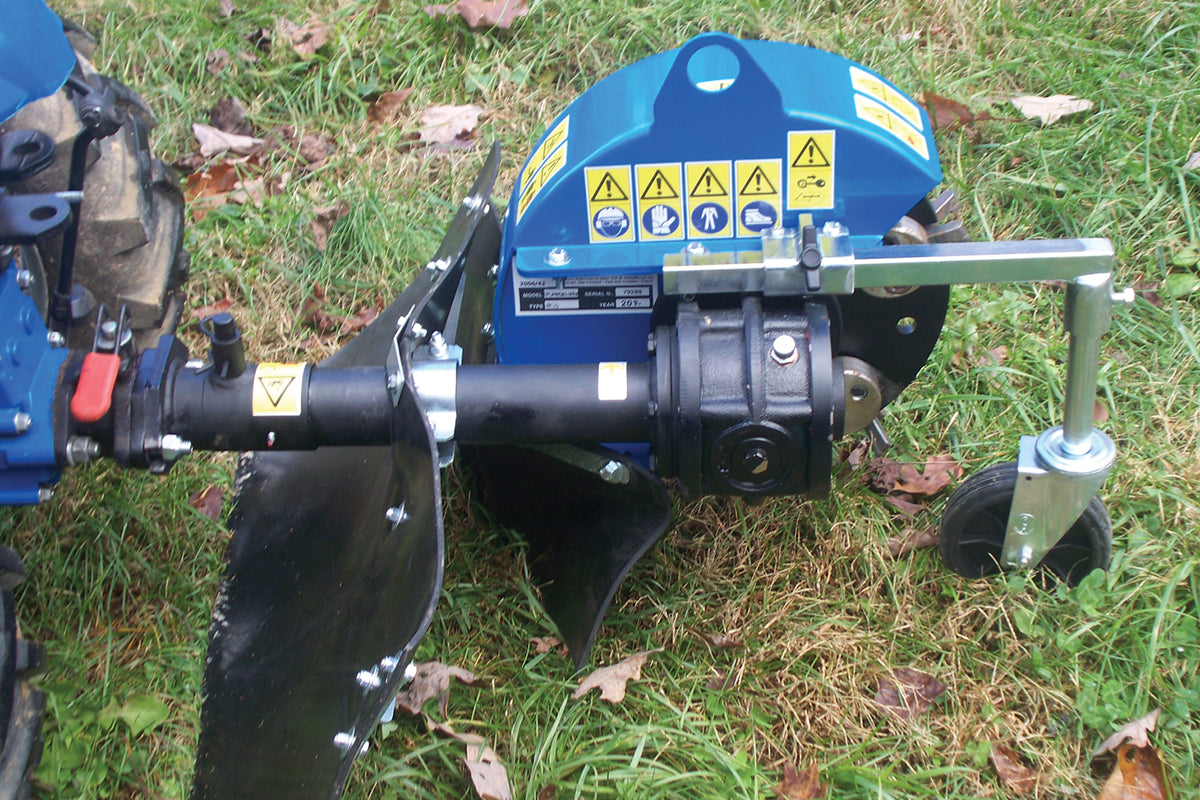

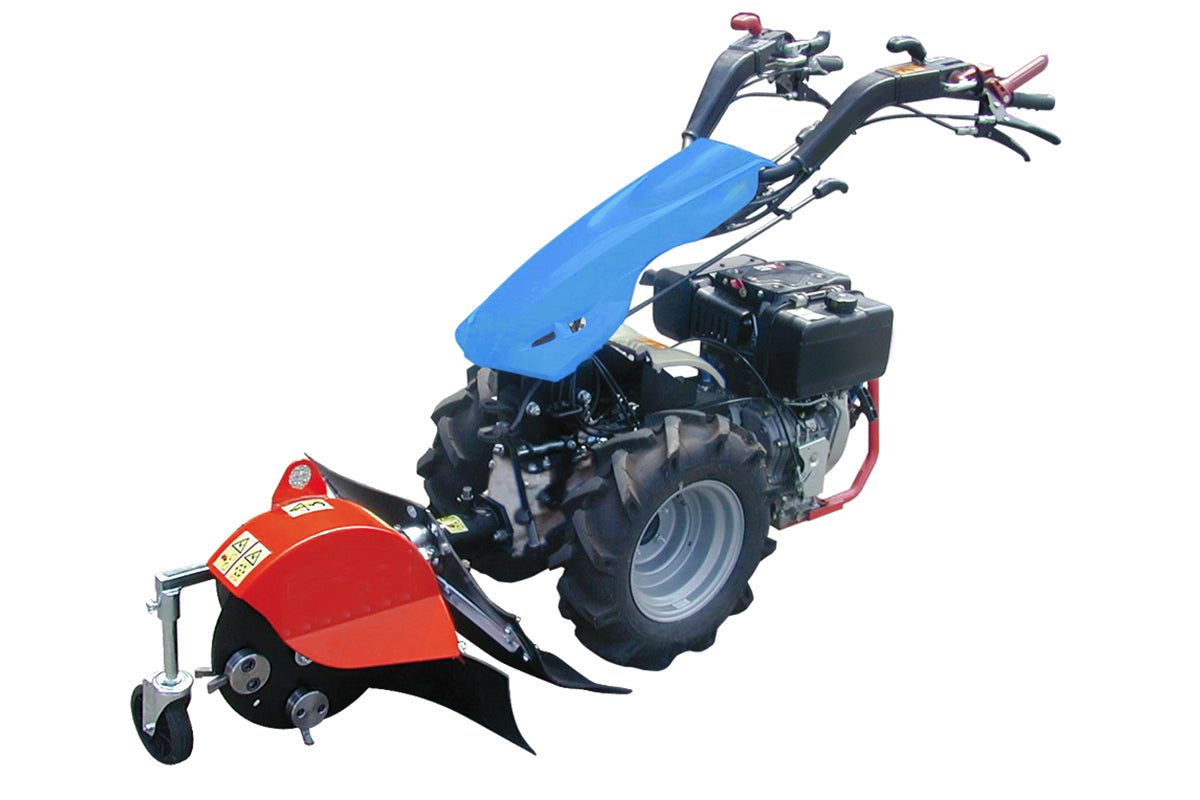

Grind stumps of any diameter with the fantastic Two Wheel Tractor stump grinder attachment.

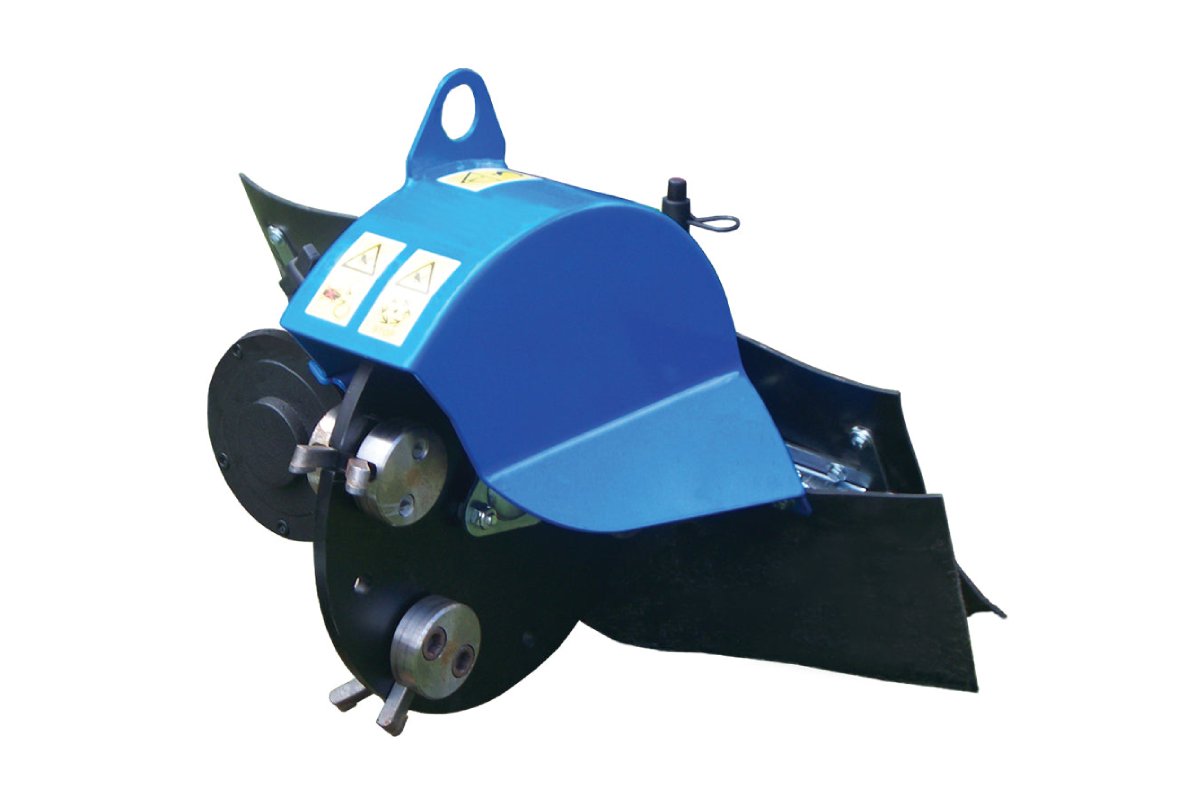

The ½" wide steel grinding disc measures 14" in diameter and is fitted with 8 heavy-duty replaceable carbide cutting teeth.
Locking one of the power unit's wheel brakes effectively enables the stump grinder to pivot from side to side over the stump.
For easy manoeuvrability the stump grinder is fitted with a removable transport wheel.
| PTO Stump Grinder | |
| Grinding Disc Diameter | 35½cm (14") |
| Grinding Disc Thickness | 1¼cm (½") |
| No of Teeth | 8 |
| Grinding Above Ground | 23cm (9") |
| Grinding Below Ground | 23cm (9") |
| Dimensions (L W H) | 88 x 73 x 55cm |
| Weight | 100kg |
Which power units will the stump grinder fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | |
| BCS 740 | ✔ |
| BCS 750 | ✔ |
| BCS 770HY | ✔ |
| BCS 614 | |
| BCS 615 | |
| BCS 618 | ✔* |
| BCS 630 | ✔ |
| BCS 630WS | |
| BCS 660HY |
* GX200 engine only.
What are the minimum power unit requirements?
8.4hp petrol or 6.1hp diesel engine.
Two working speeds.
Locking differential.
4.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.
Please note: The BCS 750 power unit has its own specific coupler.
Is there anything else required?
We can also supply a Modular Guard with Hazard Kit, which is effectively a portable screen which sits around the stump to protect passers by from flying objects.
Parts Diagrams
BCS Implements & Attachments Diagrams
Operating Manuals
BCS Implements & Attachments Operating Manuals
Technical Bulletins
- Features
-

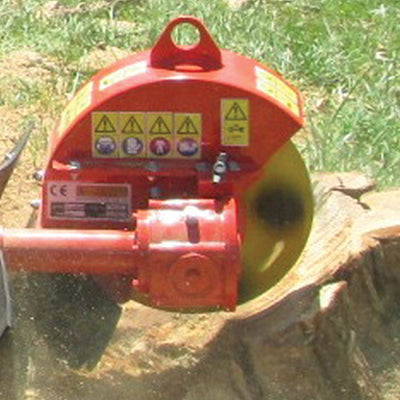

This extremely tough stump grinder, manufactured by Caravaggi s.r.l., features a cast-iron gearbox with fully hardened gears and shafts supported by ball bearings in a full oil bath.
The ½" wide steel grinding disc measures 14" in diameter and is fitted with 8 heavy-duty replaceable carbide cutting teeth.
Locking one of the power unit's wheel brakes effectively enables the stump grinder to pivot from side to side over the stump.
For easy manoeuvrability the stump grinder is fitted with a removable transport wheel.
- SPECIFICATION
-
PTO Stump Grinder Grinding Disc Diameter 35½cm (14") Grinding Disc Thickness 1¼cm (½") No of Teeth 8 Grinding Above Ground 23cm (9") Grinding Below Ground 23cm (9") Dimensions (L W H) 88 x 73 x 55cm Weight 100kg - COMPATIBILITY
-
Which power units will the stump grinder fit to?
BCS 710 BCS 728 BCS 738 BCS 740 ✔ BCS 750 ✔ BCS 770HY ✔ BCS 614 BCS 615 BCS 618 ✔* BCS 630 ✔ BCS 630WS BCS 660HY * GX200 engine only.
What are the minimum power unit requirements?
8.4hp petrol or 6.1hp diesel engine.
Two working speeds.
Locking differential.
4.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.
Please note: The BCS 750 power unit has its own specific coupler.
Is there anything else required?
We can also supply a Modular Guard with Hazard Kit, which is effectively a portable screen which sits around the stump to protect passers by from flying objects.
