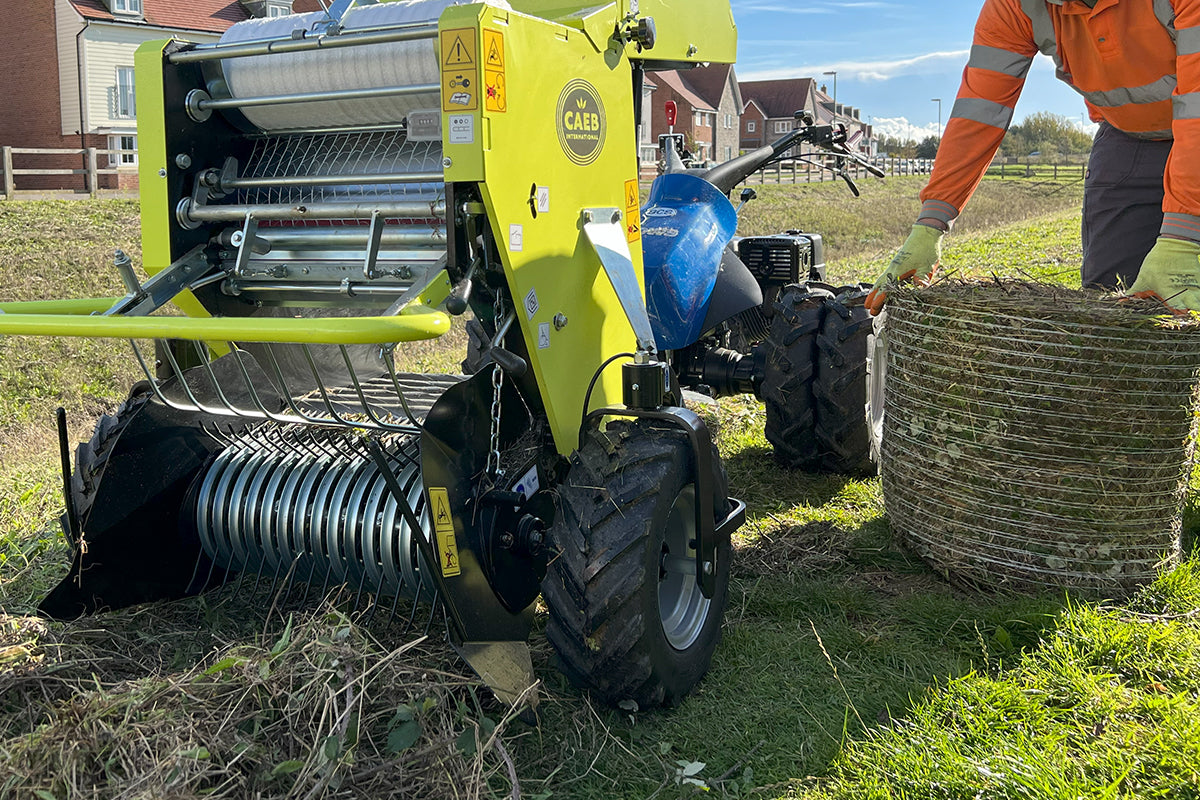

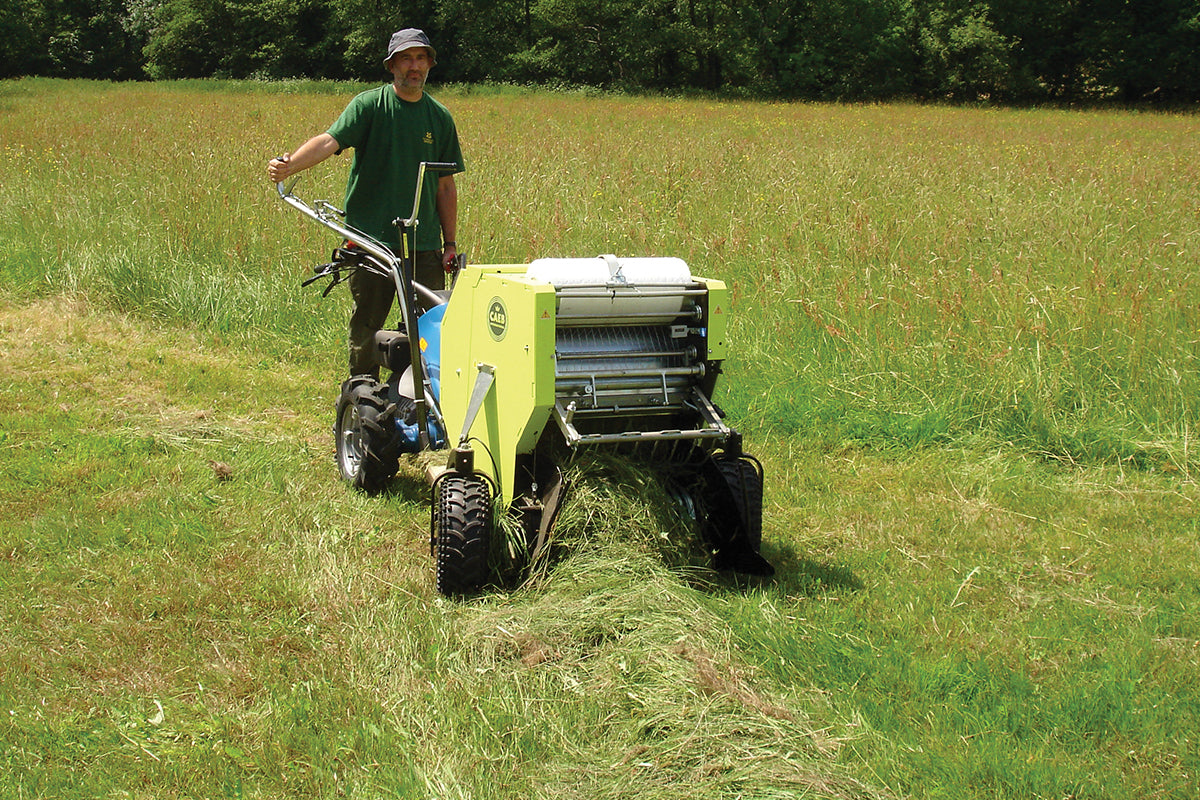

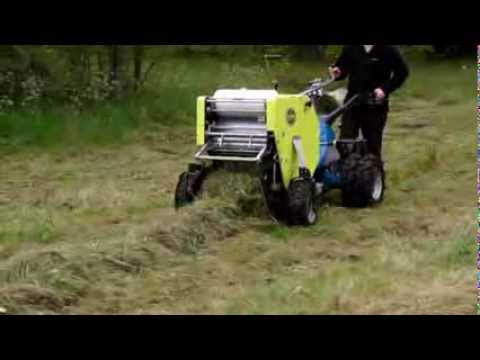

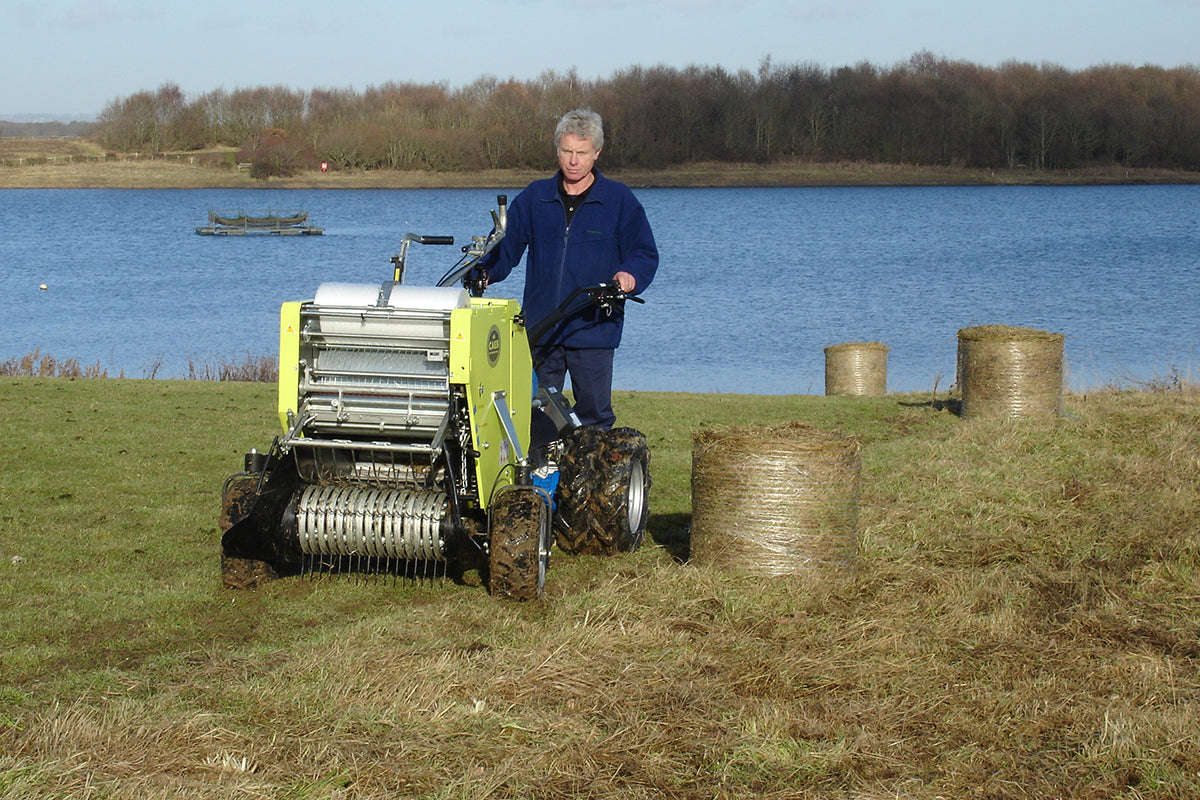

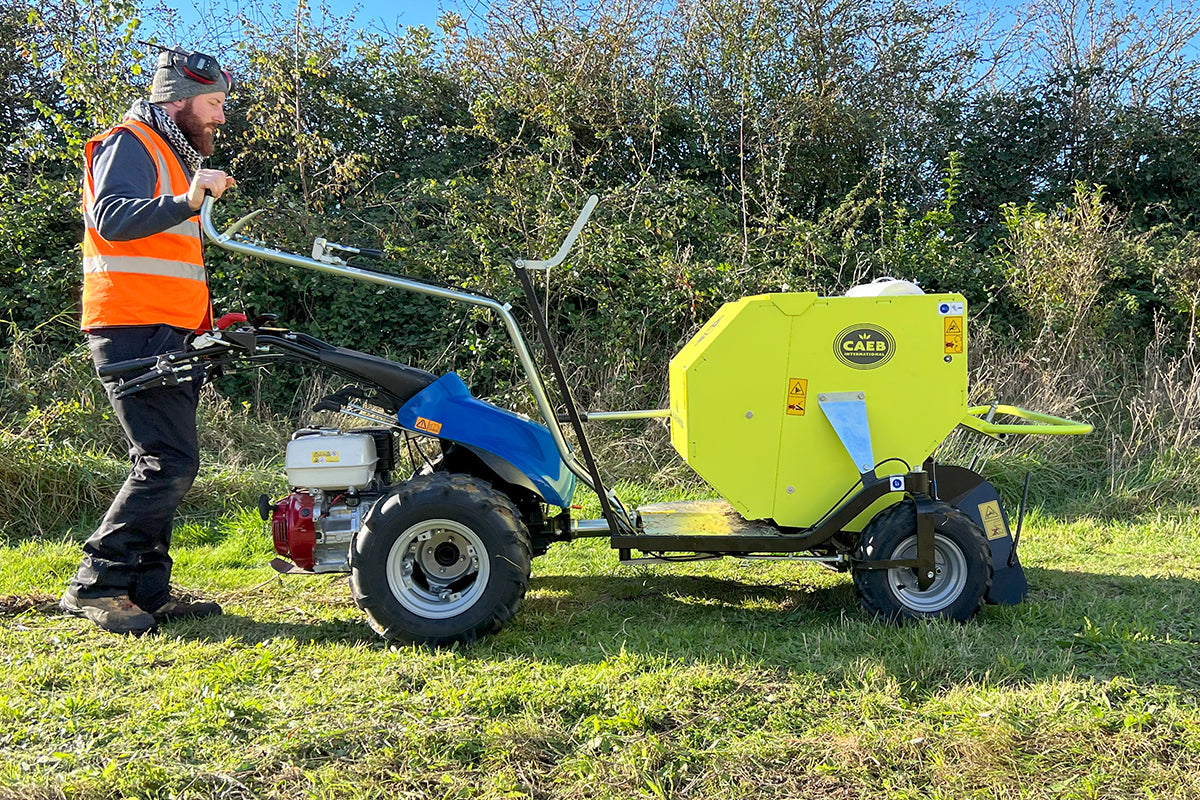

Create mini round bales from vegetation that has been previously cut with the disc mower or scythe cutter bar quickly and easily with the mini baler attachment.

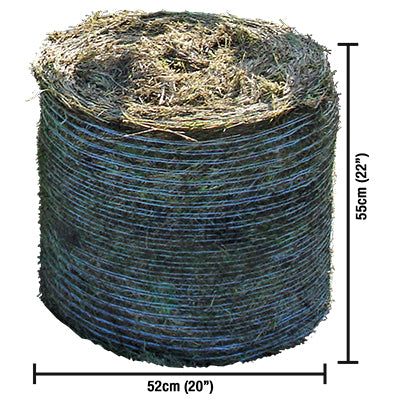

Manufactured by CAEB International s.r.l., the mini baler can easily bale up to 1.2 tons in good conditions, producing round bales just 52cm (20”) x 55cm (22”) in size and weighing between 20-25kg.
The bale is bound with a net wrap (supplied in a 1500m roll) which takes just a few seconds to wrap.
Each bale takes roughly 40 seconds to produce and the machine has a total output of approximately 1,500kg per hour. A bale counter helps you keep track of the number of bales produced and can be reset as required.
The bale core is less pressed than the outer to allow the hay to breathe and avoid mould forming. The outer is pressed to create a water-repellent protective layer.

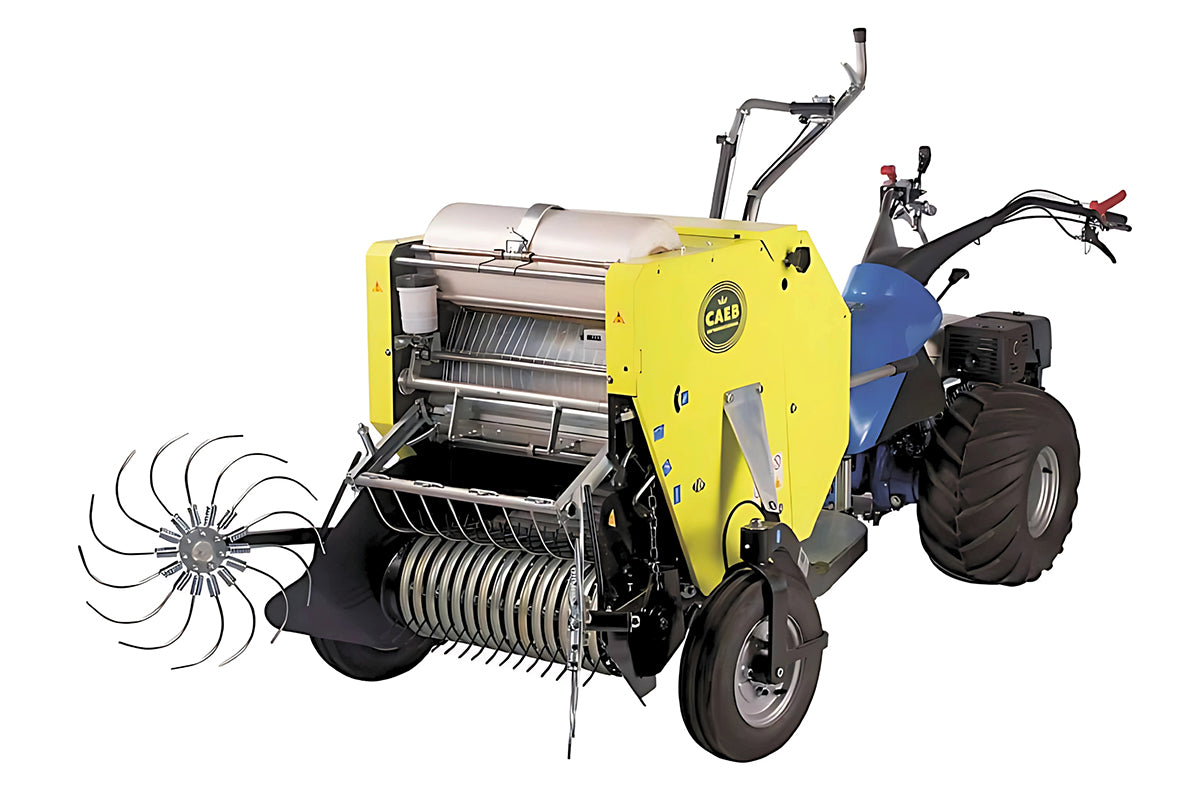

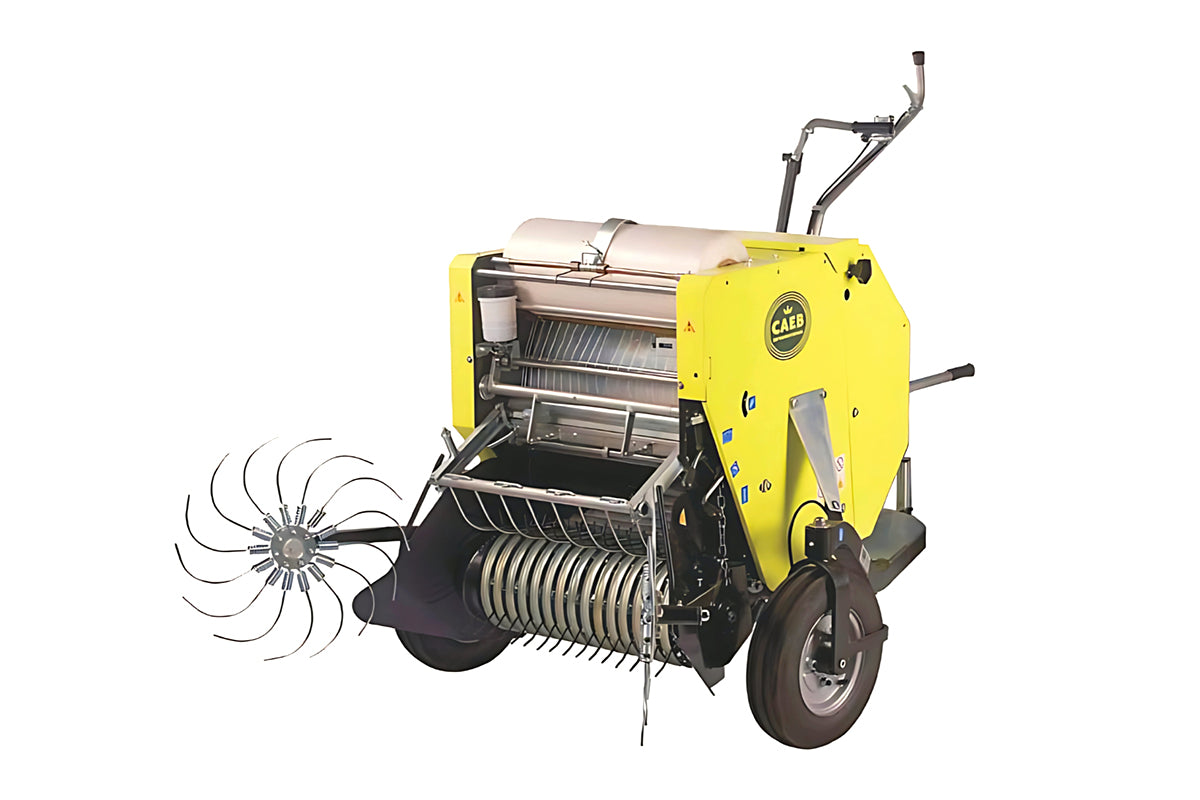

Gathering wheels are available as an optional extra. These help to gather "stray" grass, effectively widening the gathering width of the machine.
| Mini Baler | |
| Baling Width | 70cm (28") without optional gathering wheels |
| 105cm (42") with optional gathering wheels | |
| Bale Dimensions | 52cm (20") x 55cm (22") |
| No of Bales Per Hour | 50 to 80 |
| Net Wrap | 1500m long (included) |
| Pick Up Teeth | 2 rows of 16 teeth |
| Max Weight of Bale | 25kg (hay) |
| 18kg (straw) | |
| Min Working Speed | 2.5 km/hr |
| Dimensions (L W H) | 165 x 110 x 120cm |
| Weight | 255kg (280kg with hay bale) |
Which power units will the mini baler fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | |
| BCS 740 | ✔ |
| BCS 750 | ✔ |
| BCS 770HY | ✔ |
| BCS 614 | |
| BCS 615 | |
| BCS 618 | |
| BCS 630 | |
| BCS 630WS | ✔ |
| BCS 660HY | ✔ |
* GX200 engine only.
What are the minimum power unit requirements?
11.7hp petrol or 9.0hp diesel engine.
Three working speeds.
Steering brakes.
5.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
The mini baler is supplied complete with its own inbuilt coupling so nothing else is required, unless it is being fitted to the BCS 660HY or 750 in which case a specific coupler is required.
Is there anything else required?
If the machine is being used on a slope then twin wheels or steel bank wheels may be beneficial to help improve traction and stability.
Parts Diagrams
 |
Mini Baler Diagram - COMING SOON |
Operating Manuals
|
Operating Mini Baler - COMING SOON |
