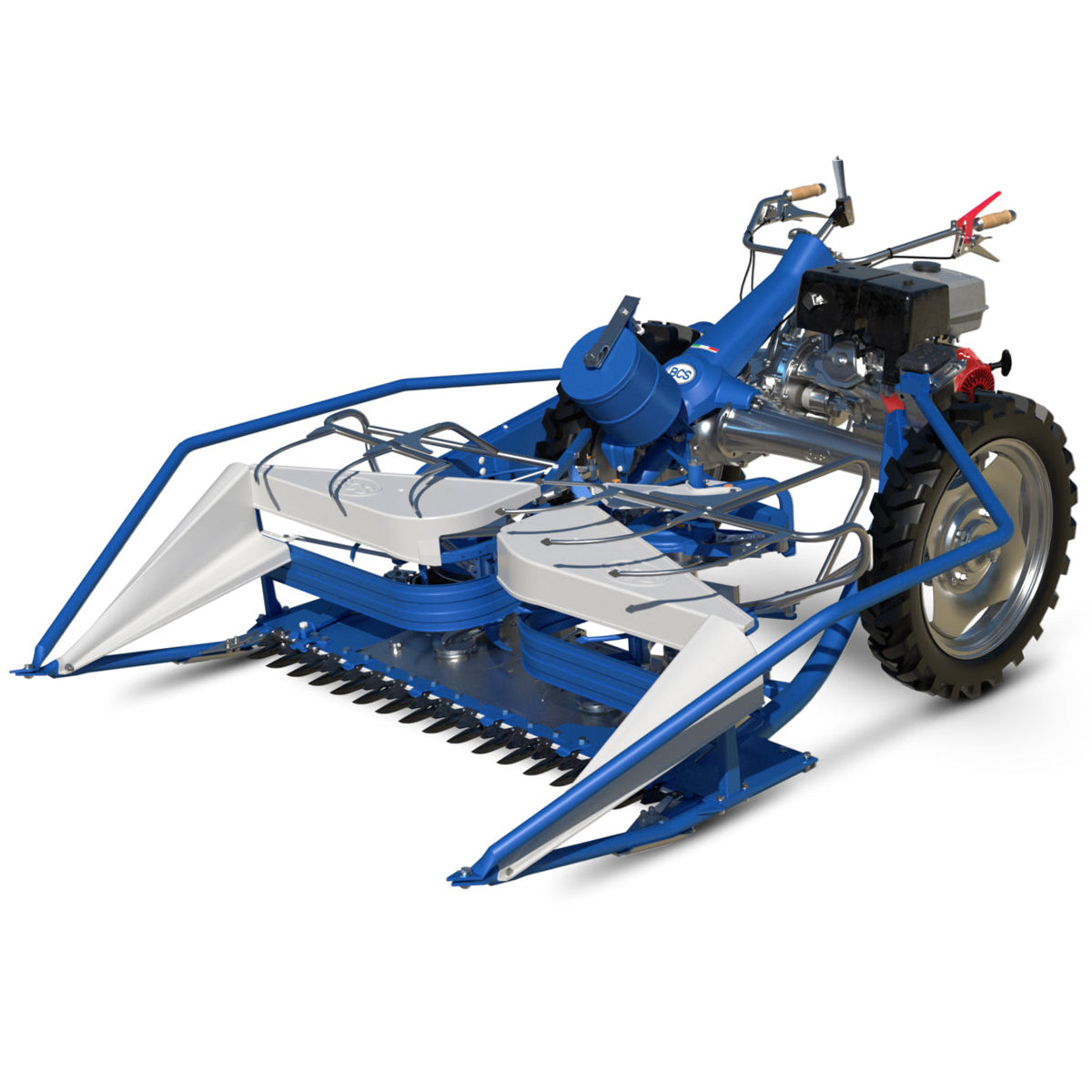

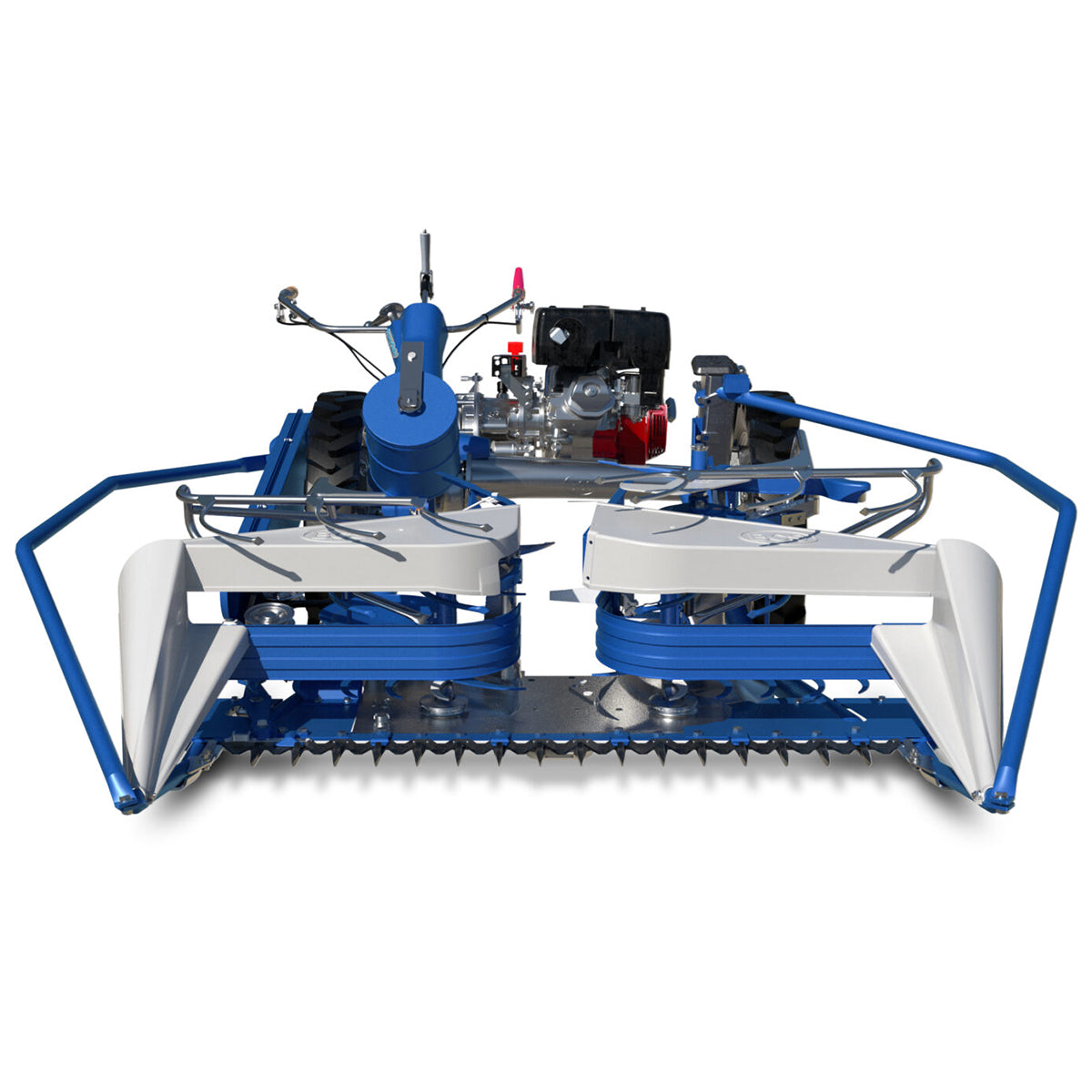

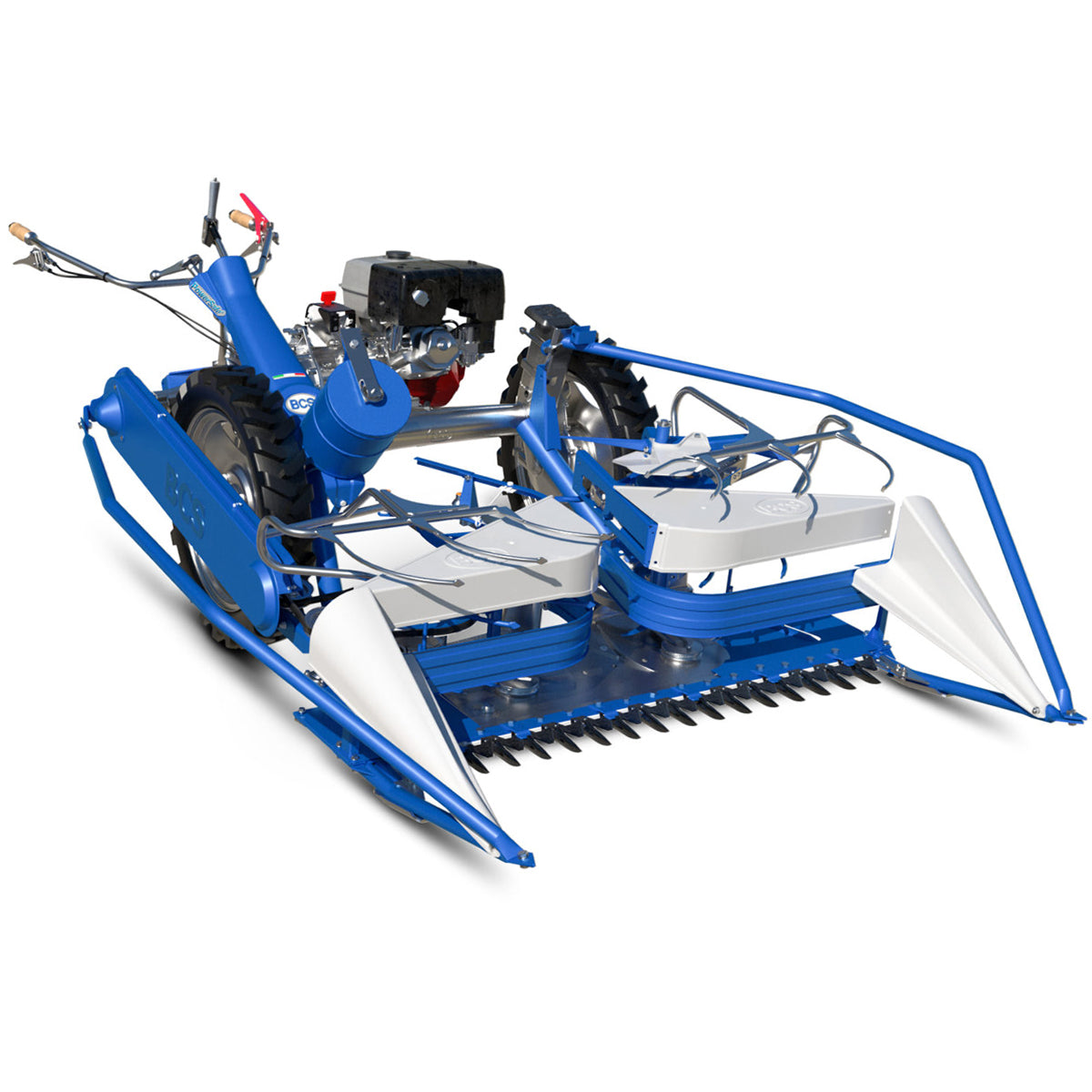

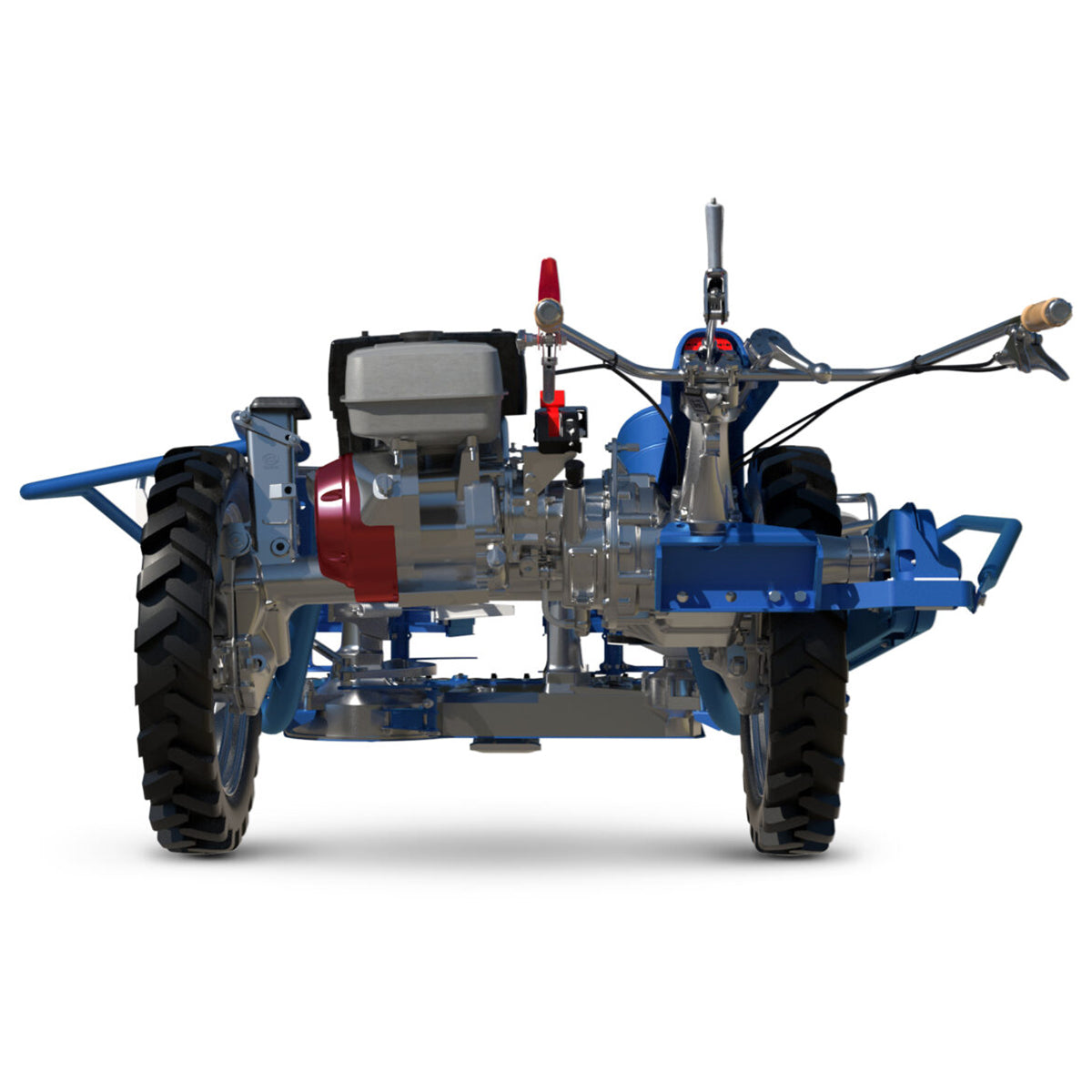

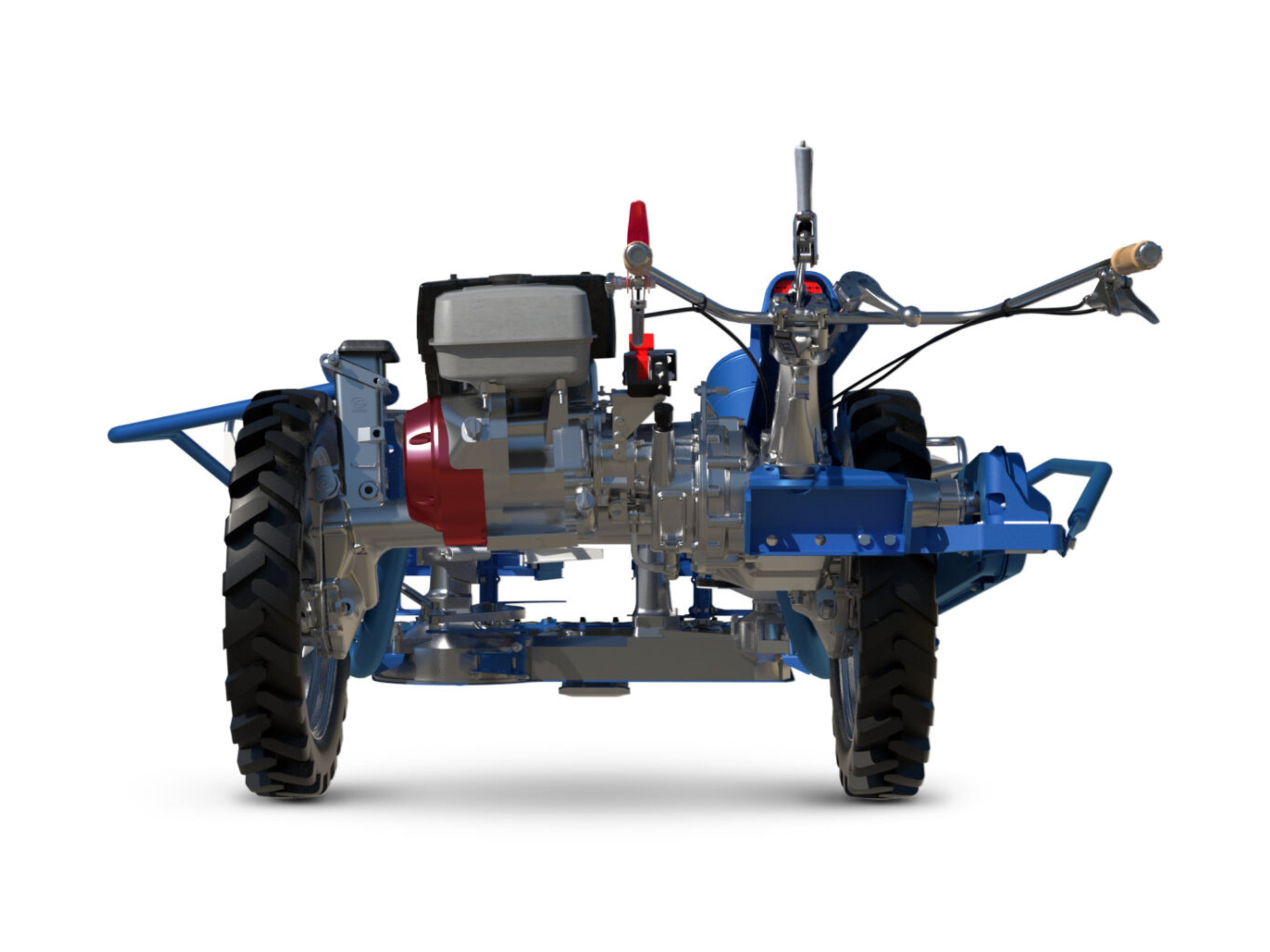

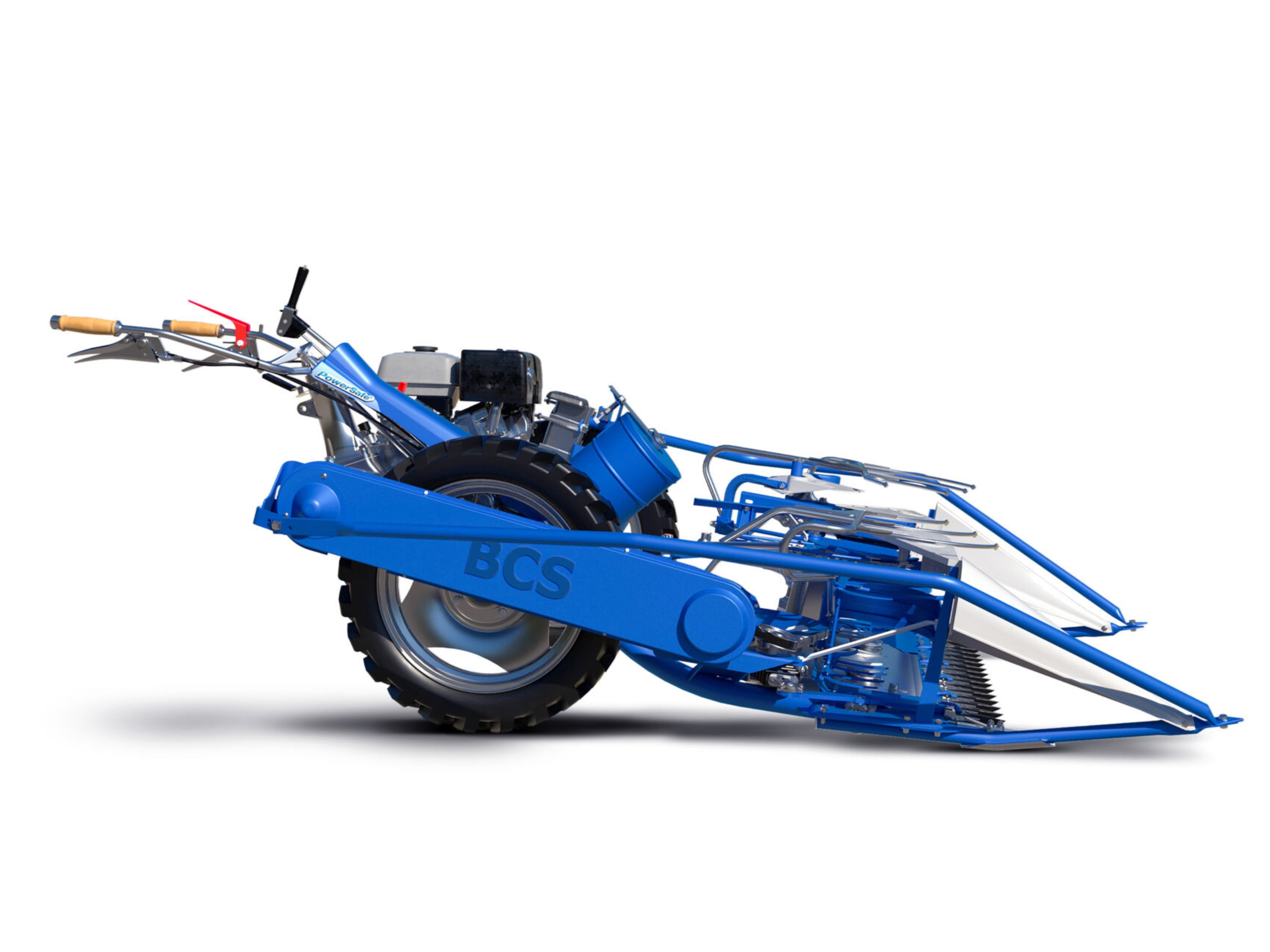

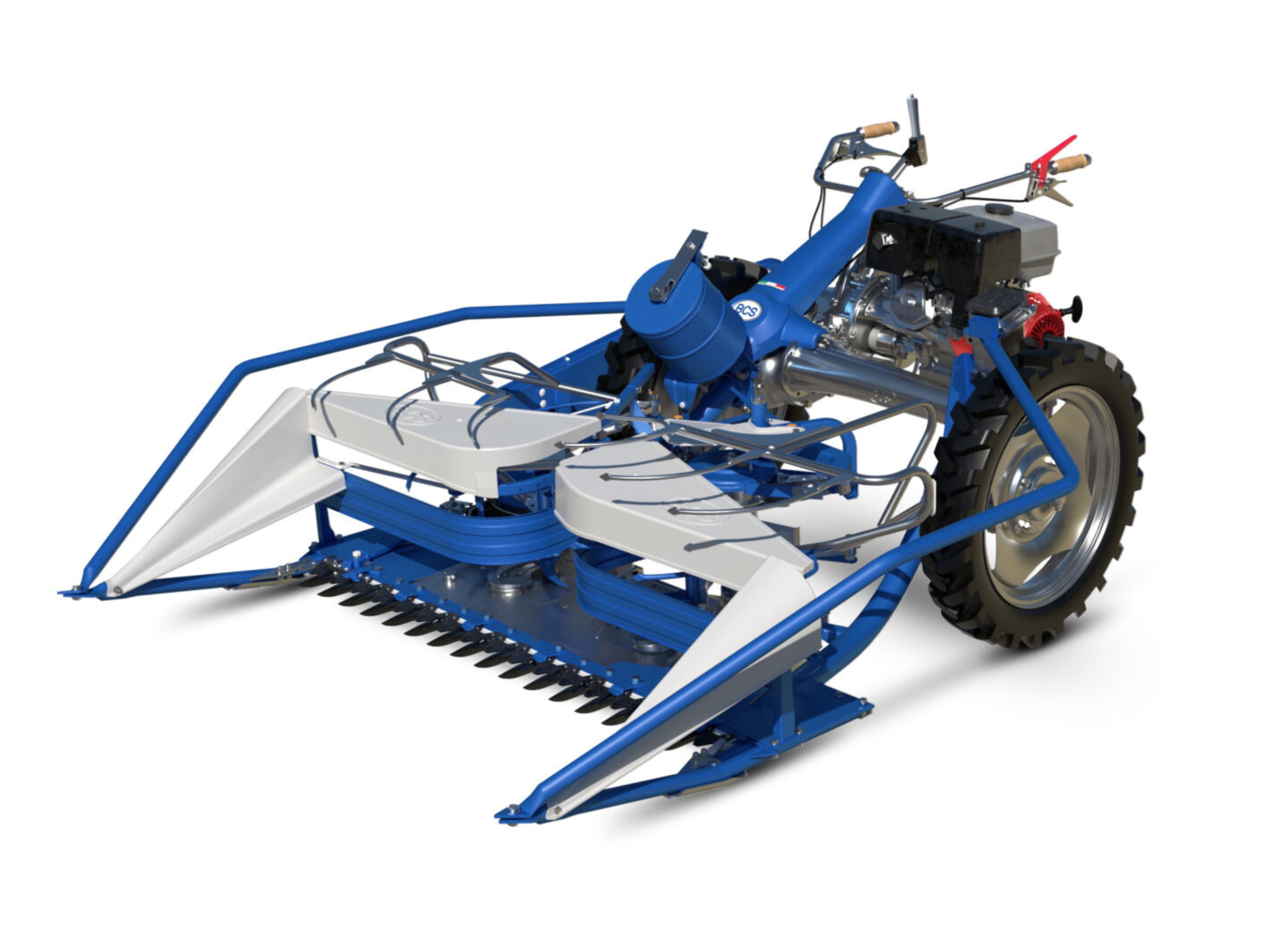

BCS 622 PowerSafe® Reaper Binder

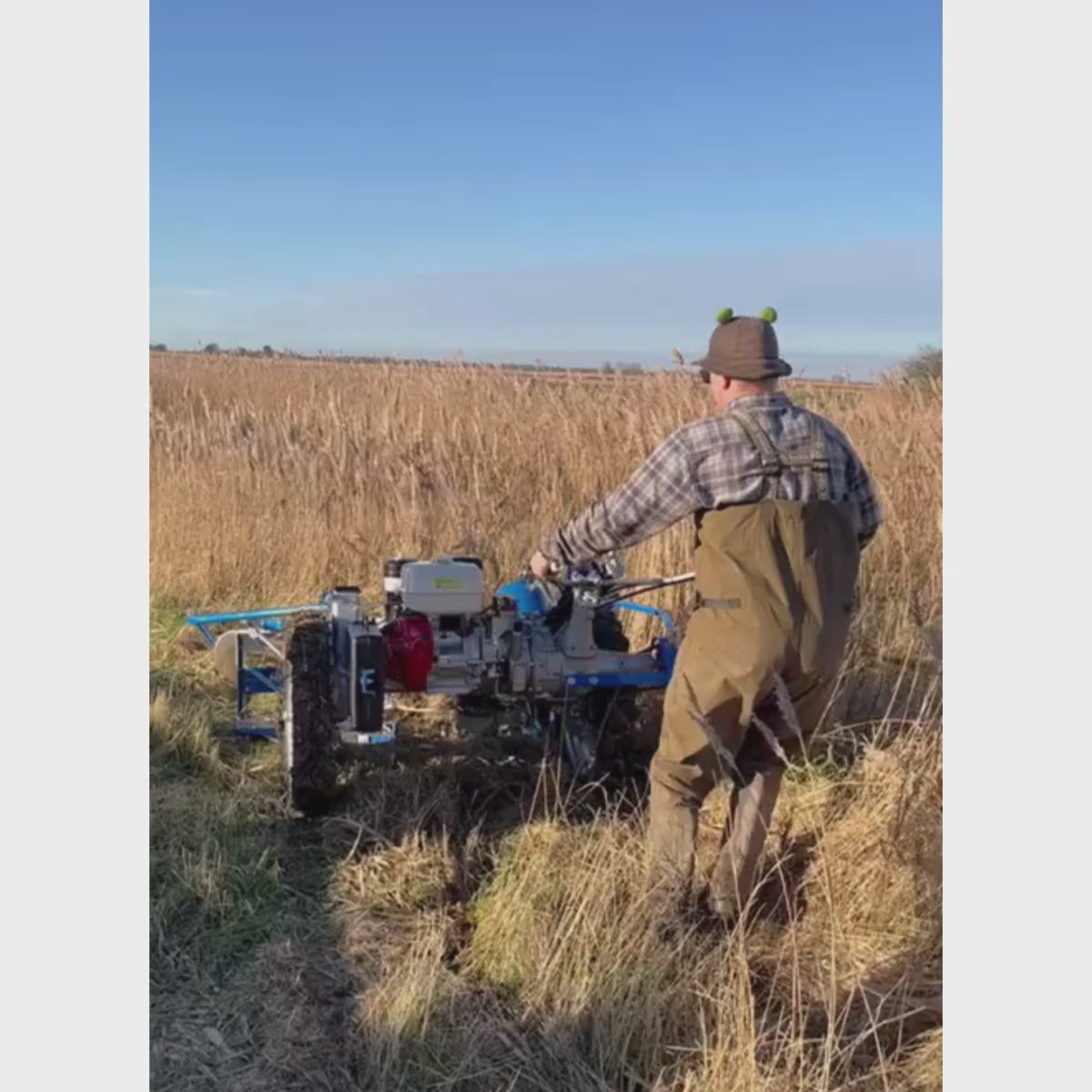

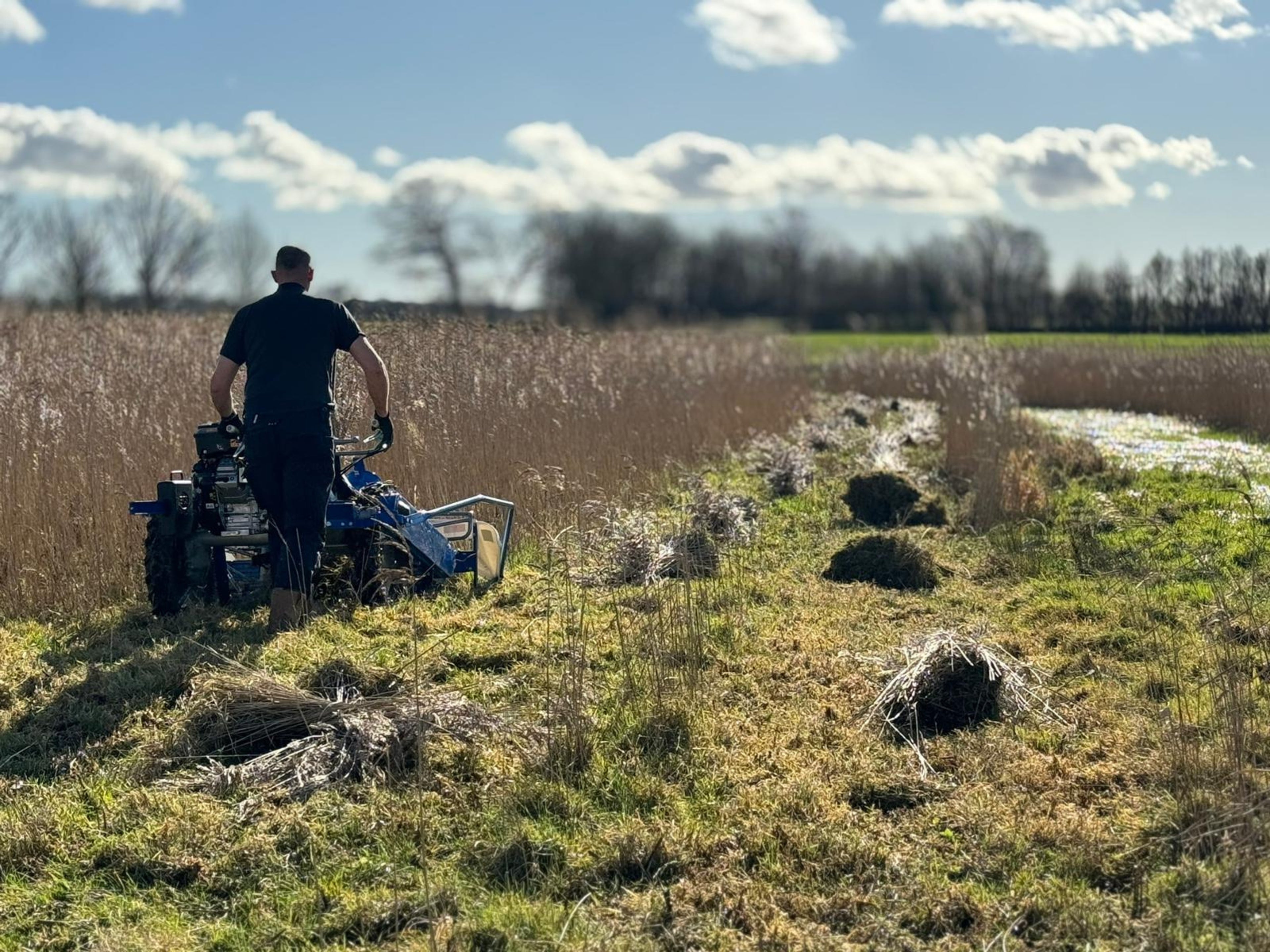

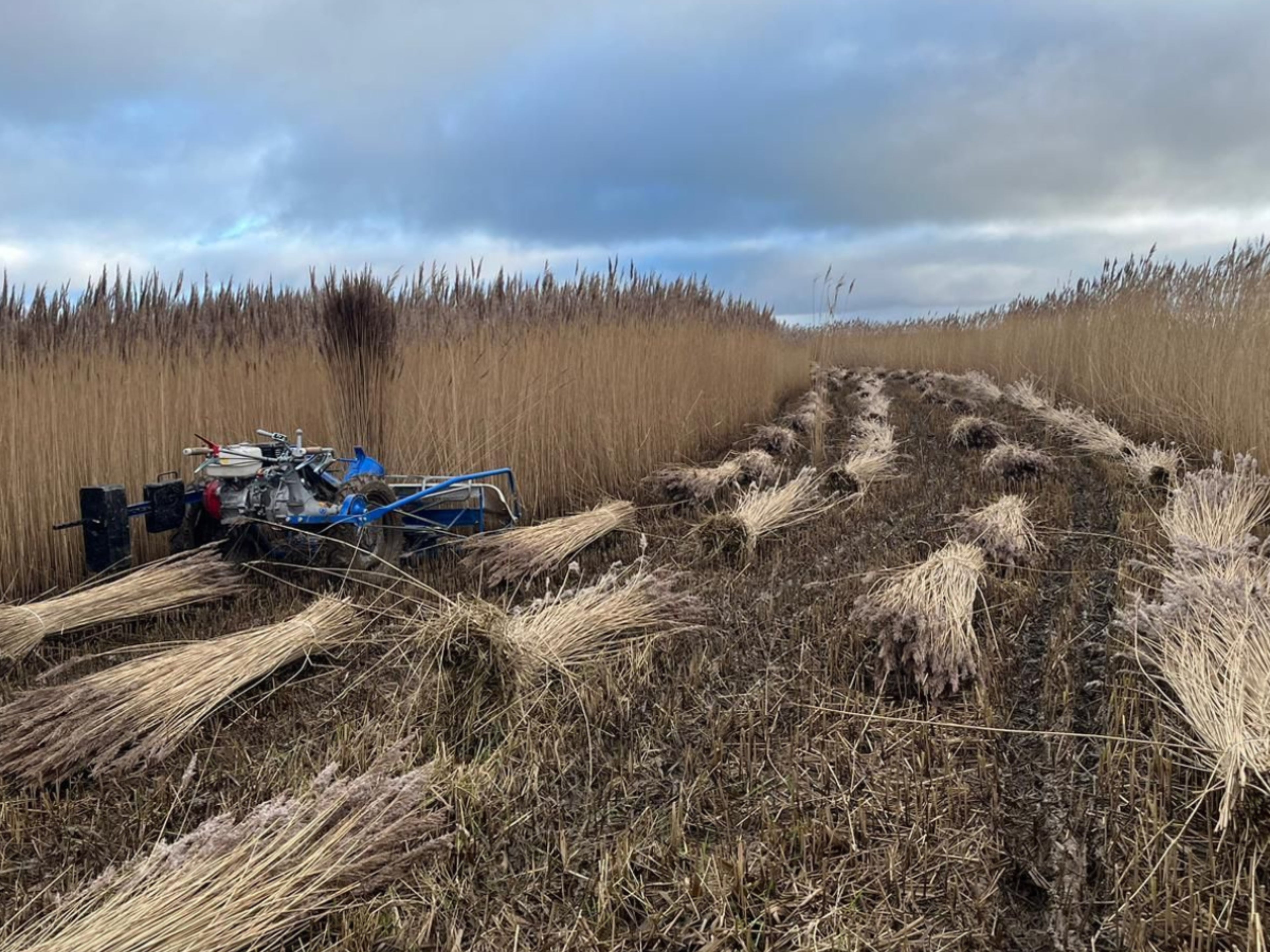

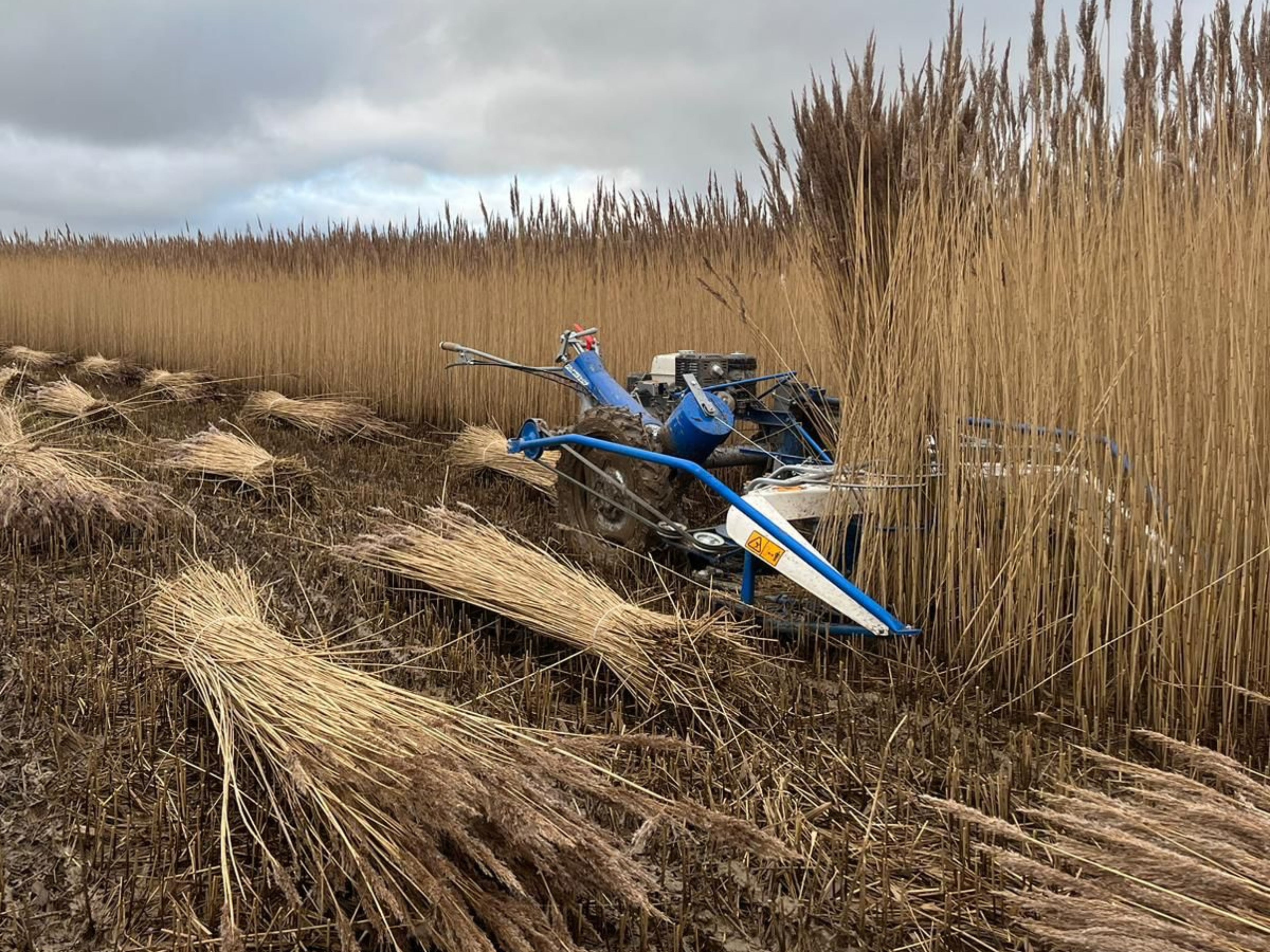

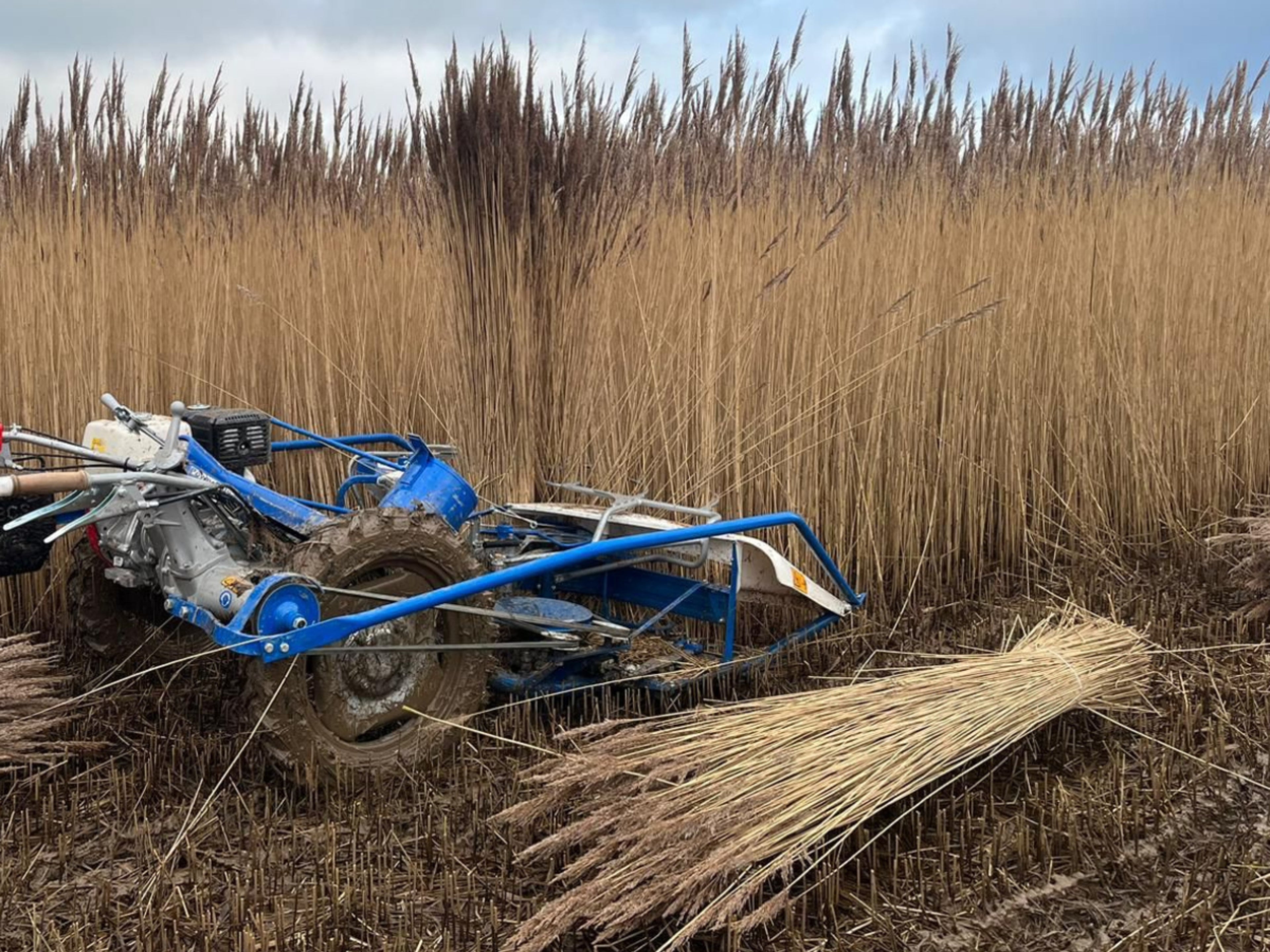

The BCS Reaper Binder is ideal for growers wanting to take control of their harvesting and reduce harvesting time. It will cut, bundle, and tie crops in a single pass. Suitable for many different types of crops, including grains, sesame, lavender, herbs, and more, this harvester is directly descended from the very first BCS machines that were originally built over 80 years ago!
<br><br>

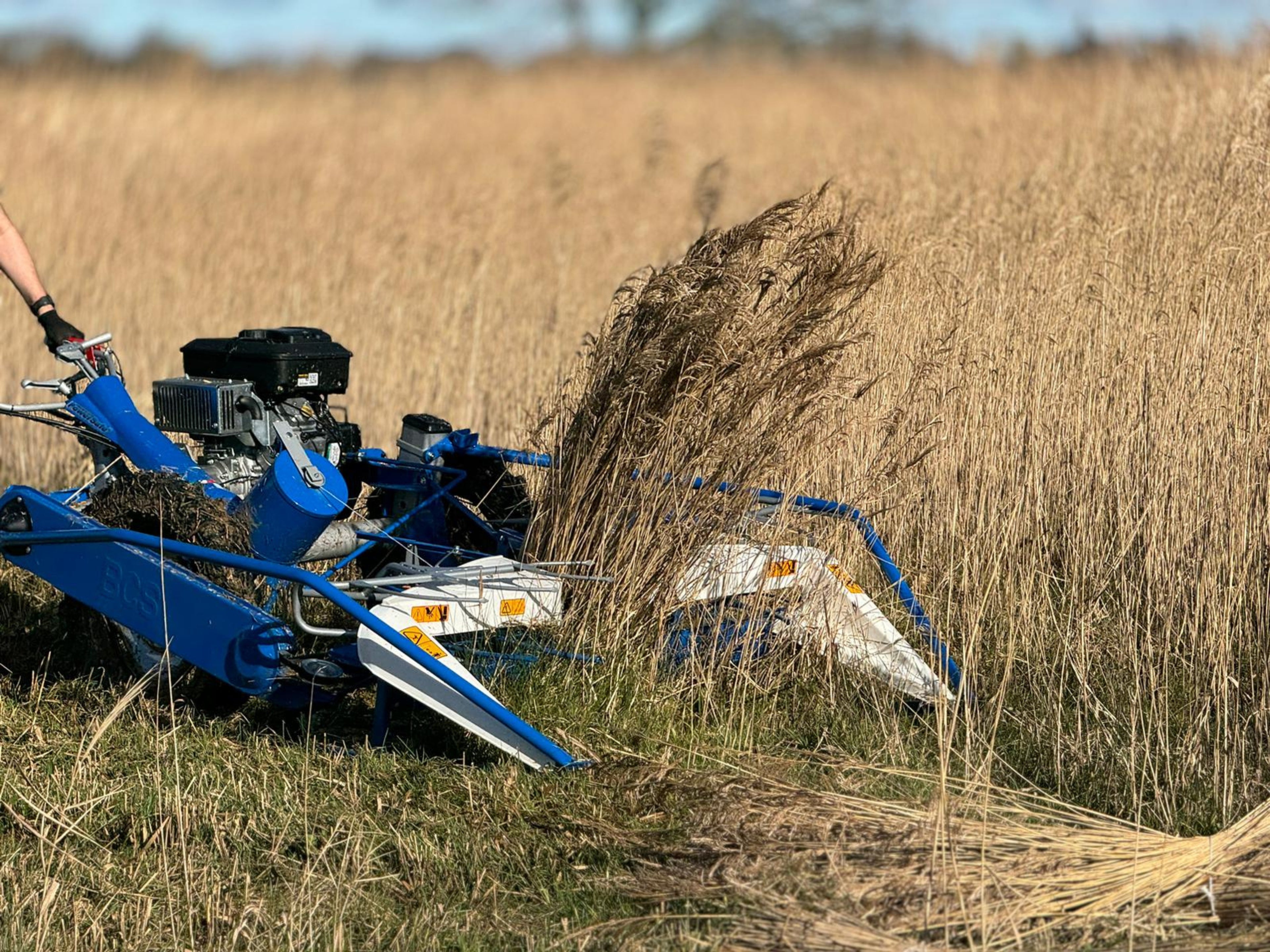

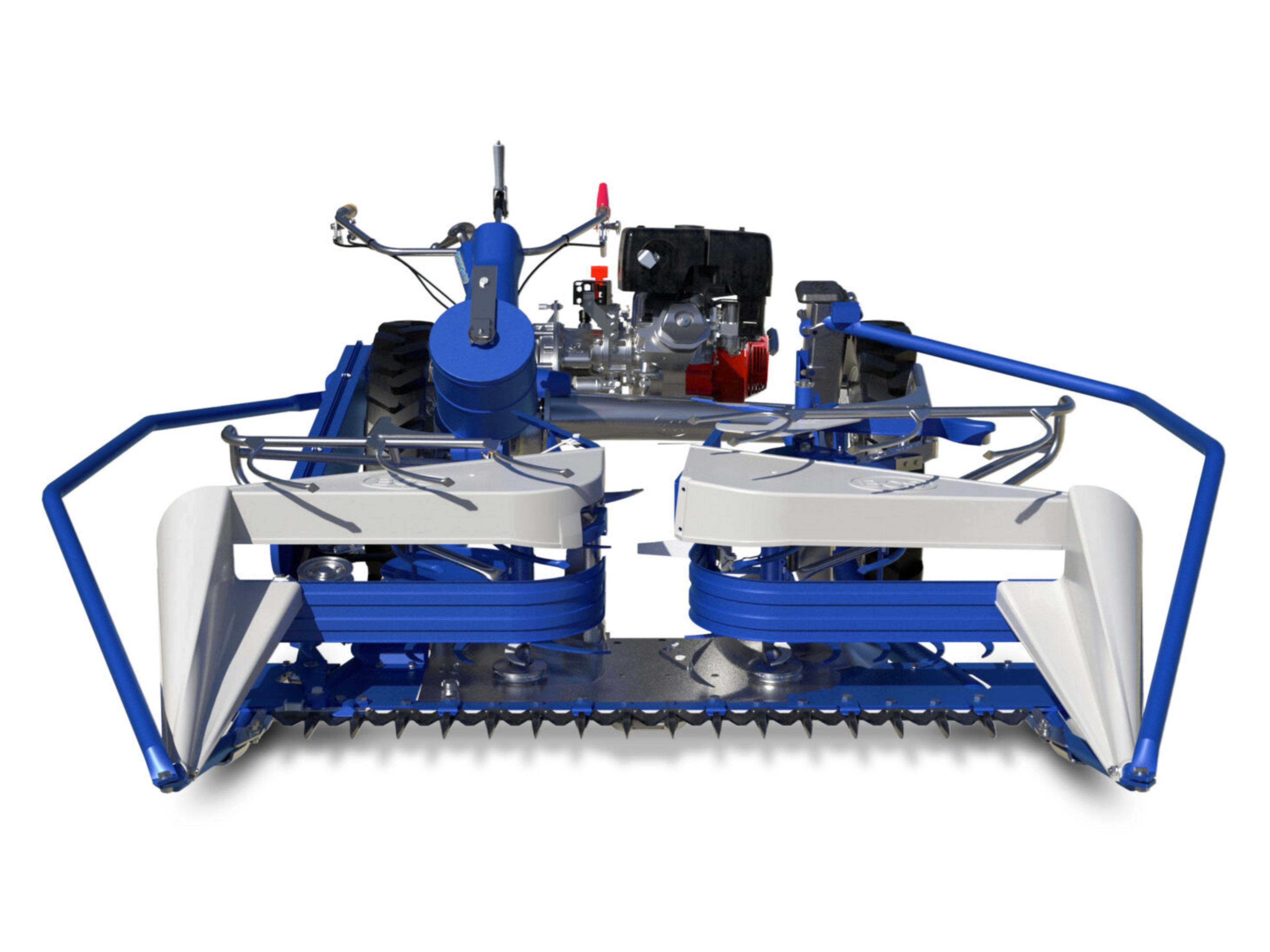

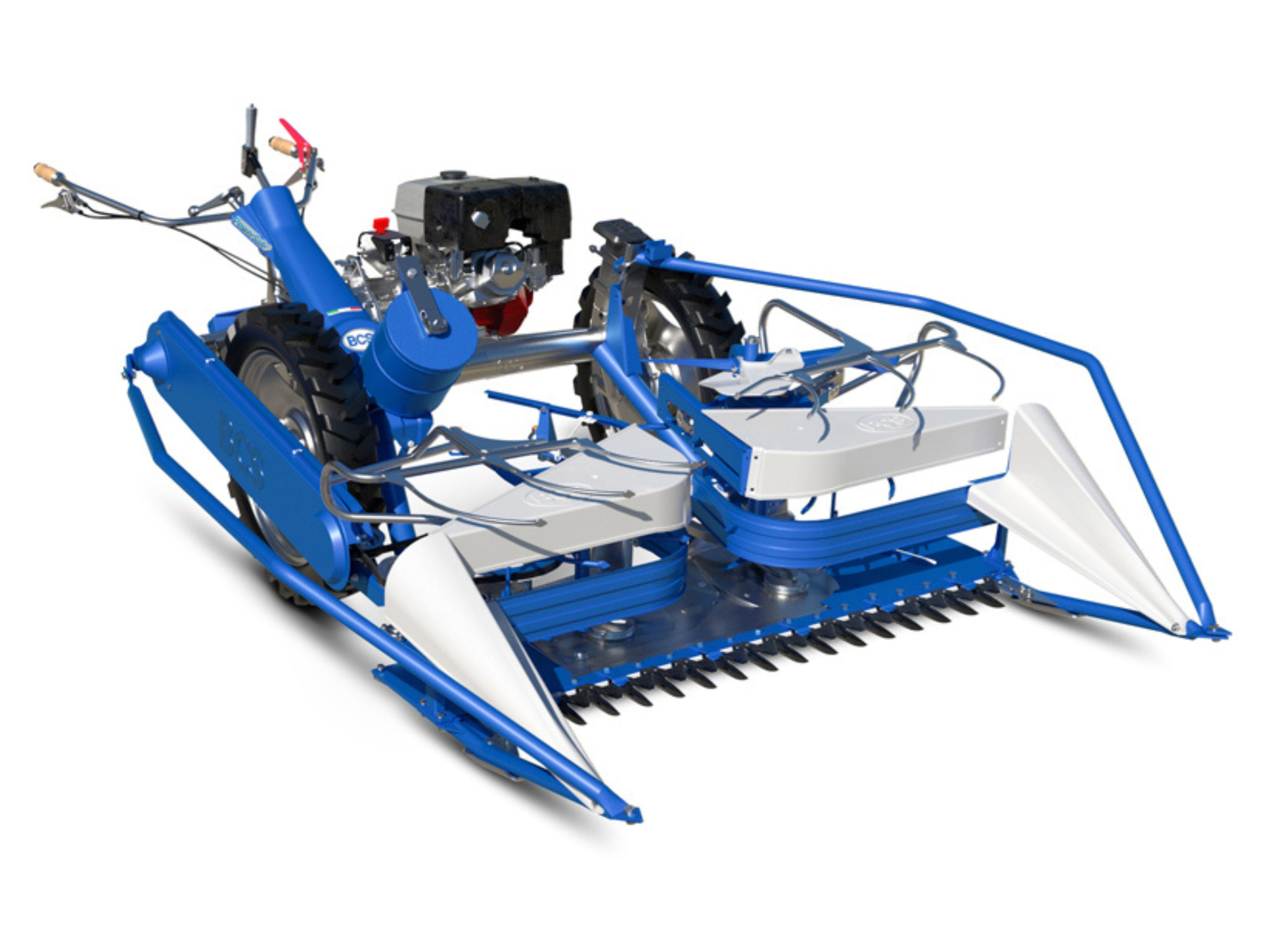

The 140cm wide cutter bar cuts material 7cm from the ground. The continuous and constant movement of the forks positioned above the cutter bar then allows the cut crop to be bundled towards the binding mechanism which ties the cut material approximately either 19cm or 28cm above the cut (dependent on the model).
SPECIFICATION
Power Unit | ||||||
Engine | Honda GX390 Petrol (11.7hp/8.7kW) | |||||
Briggs & Stratton Vanguard (16hp/11.9kW) | ||||||
Gears | 4 forward & 1 reverse | |||||

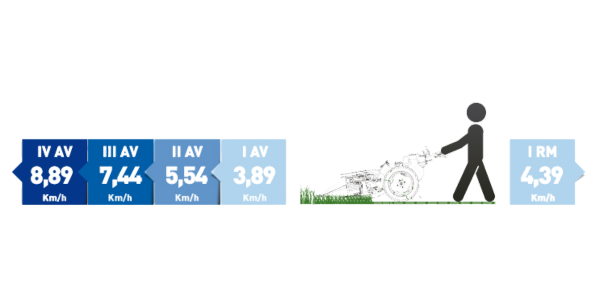

Speeds | Forward: | I: 3.89km/hr | II: 5.54km/hr | III: 7.44km/hr | IV: 8.89km/hr | |
Reverse: | I: 4.39km/hr | |||||
Brakes | Steering brakes | |||||
Differential | Locking differential |
|||||
Wheels | 4.5 x 19 x 26 | |||||
Weight (with 140cm reaper binder) | Honda: | 416kg | ||||
Briggs & Stratton: | 422kg | |||||
Warranty | Domestic: | 3 years | ||||
Commercial: | 1 year |
Scythe Cutter Bar | |
Cutting Width | 140cm (53") |

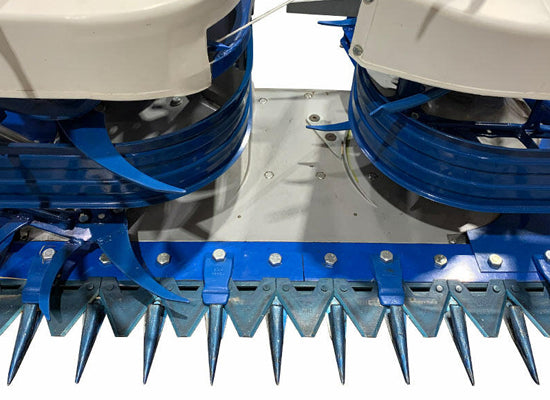

Blade Type | Middle Cut Fingers |
FEATURES
Wide Cut
The 140cm cutter bar cuts approximately 17cm from the ground and then crops are bound 30cm above the cut.
Operator Comfort

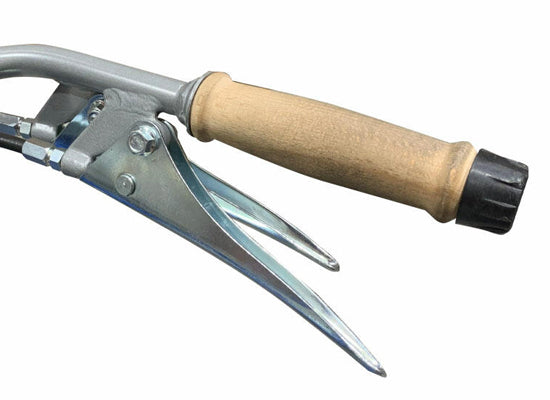

The wooden handles provide the operator with reliable grip, even in damp conditions.

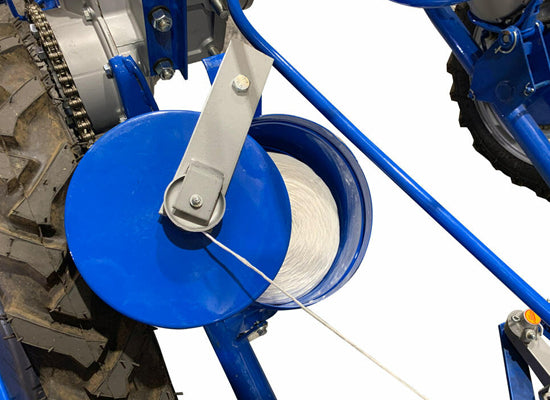

Twine Holder
The twine holder positioned on top of the unit is easy to access.
