DIGGING YOUR STYLE
We have included many features on the C2000 to make it a reliable and robust unit including a heavy duty chain case which offers longer life, metal tine guards for operator safety, foldable handlebars for easy transportation and storage, and individually replaceable tines to minimise maintenance costs.
STRAIGHTFORWARD OPERATION
The Tiller is very straightforward to operate. Simply start the Honda engine, get the engine revs up using the handlebar mounted throttle lever, then pull up the drive lever to move the machine forward and commence digging. To stop the machine, release the drive lever.
CUTTING EDGE DESIGN

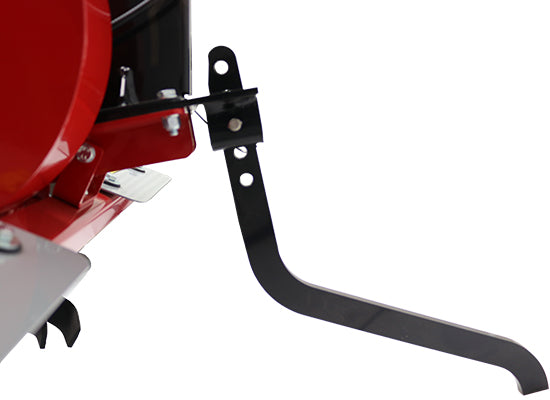

The digging tines are located at the side of the machine and these drive the machine forward through the ground. The digging depth is determined by the drag bar at the back of the machine, simply move it up to increase the digging depth or lower it to dig shallower.
VIDEO
FEATURES
SPECIFICATION
| Engine |
Honda GX160 |
| Fuel |
Petrol |
| Net Power Output |
4.8hp / 3.6kW @3600rpm |
| Starting |
Recoil |
| Fuel Tank Capacity |
3.1L |
| Fuel Consumption |
1.4L per hour @3600rpm |
| Digging Width |
64cm (25") |
Digging Depth
|
20cm (8") |
| Speeds |
One forward |
| Weight |
75kg |
| Dimensions (L W H) |
140cm x 70cm x 84cm |
| Warranty |
Domestic use - 3 years |
|
Commercial use - 2 years |
