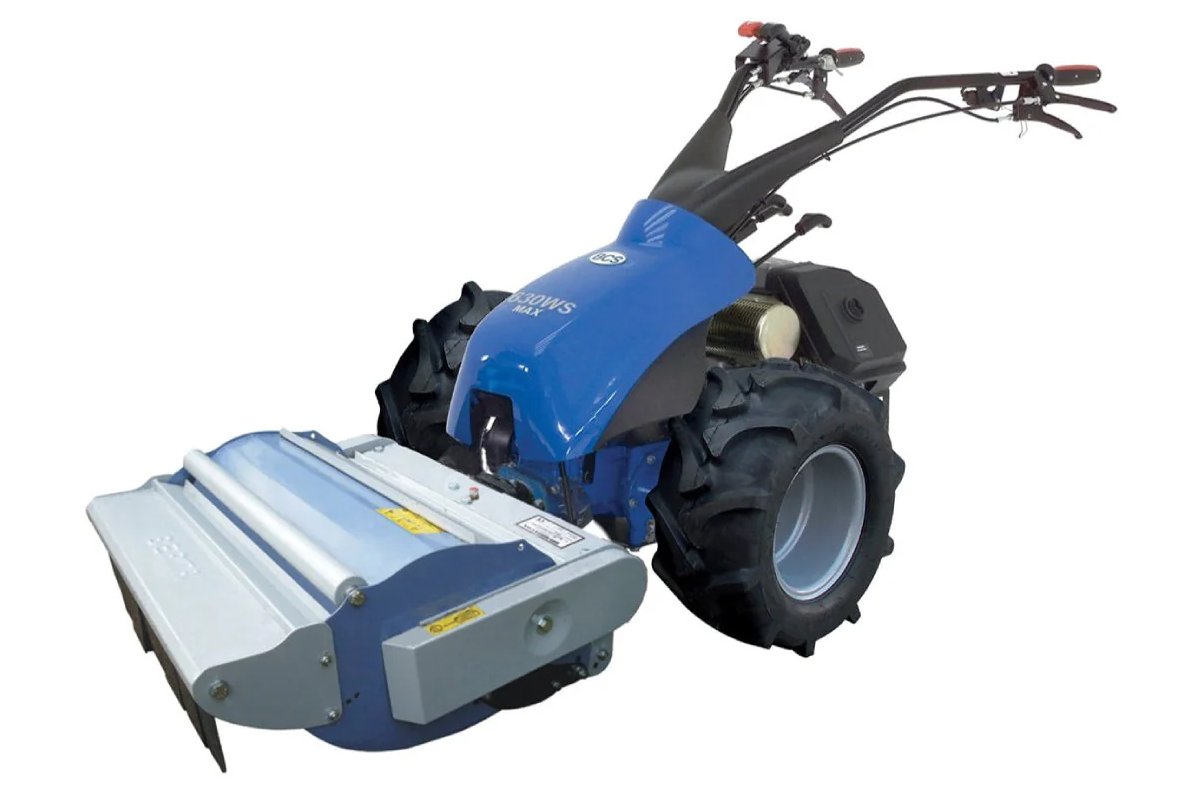

Berta Flail Mower fitted to BCS 630WS Power Unit
BCS 630WSBF Bank Flail Mower
Berta Flail Mower

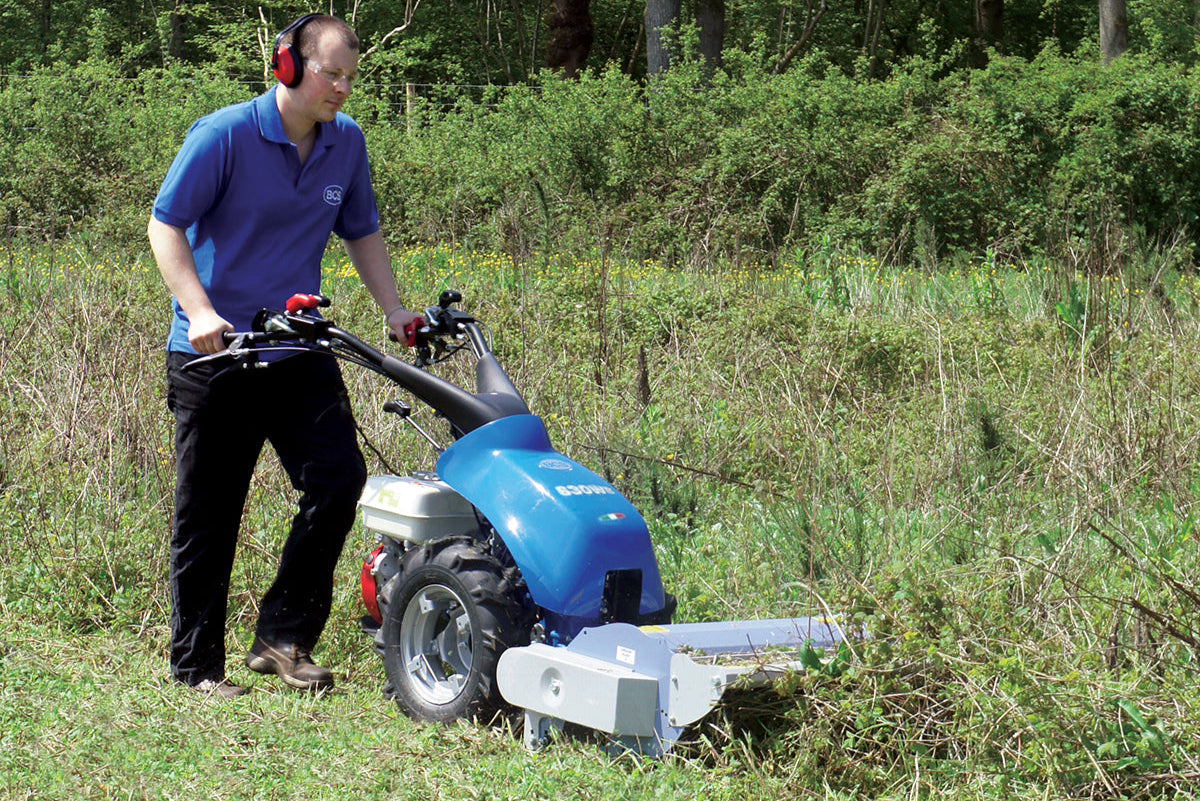

Berta Flail Mower fitted to BCS 630WS
Berta Flail Mower Free Swinging Blades

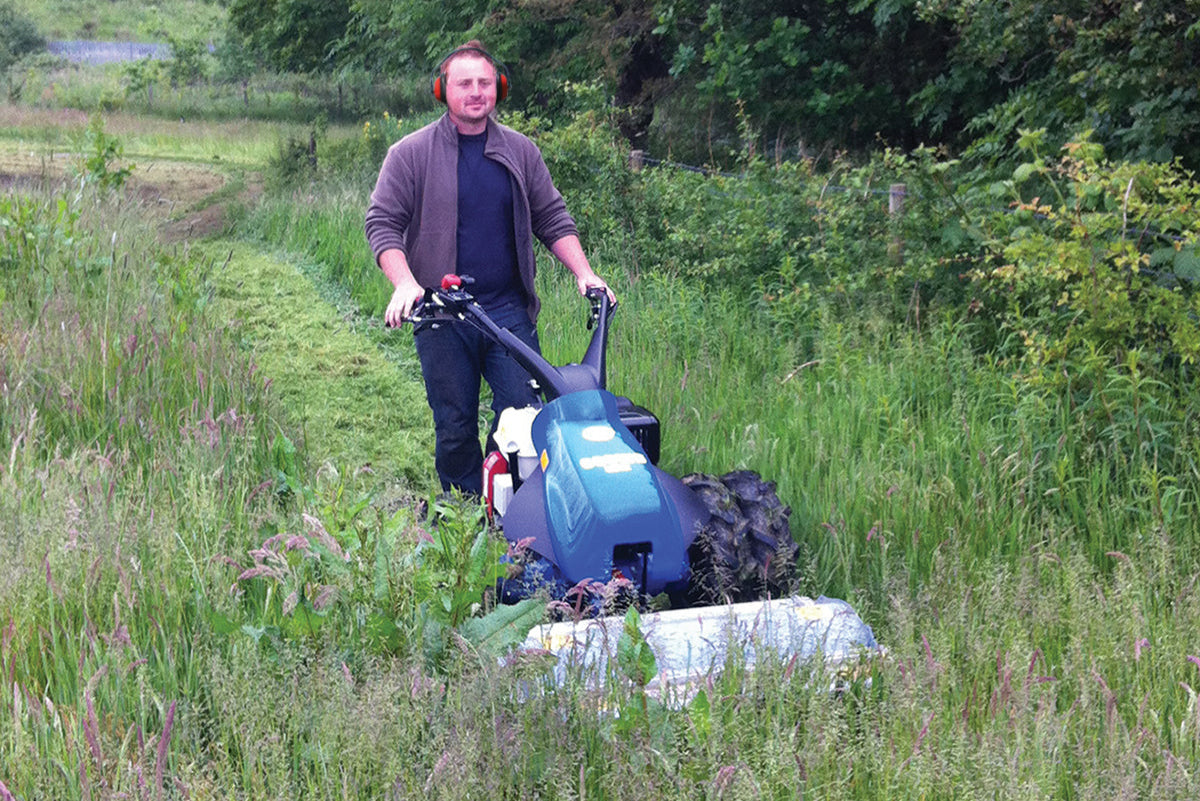

BCS 630WSBF Bank Flail Mower

£6,995.00
£6,995.00 RRP ex VAT £8,394.00 RRP inc VAT

The BCS 630WSBF Bank Flail Mower is specifically designed for working on steep slopes and banks. It is fitted with wide lug wheels and the superb Honda Banks engine allowing it to operate safely and efficiently on sloping ground, and the 85cm flail mower.

american expressgoogle paymaestromasterpaypalshopify payvisa
SKU: 8HDCK000.TR85.92257849

    Description

    The BCS 630WSBF will effortlessly cut vegetation on steep slopes up to a 40° gradient, remaining stable and safe under the direct control of the operator.

    The Honda GX390 Banks engine has been specifically designed by Honda to work on steep slopes and features a fuel pump, a modified carburettor, and patented oil control device. The machine's low centre of gravity combined with wide 8.00 x 10 lug wheels help to provide the necessary stability and traction when working on sloping terrain.

    The flail mower is ideal for use in heavily overgrown areas where other mowers simply can't cope, easily tackling the worst possible cutting conditions.

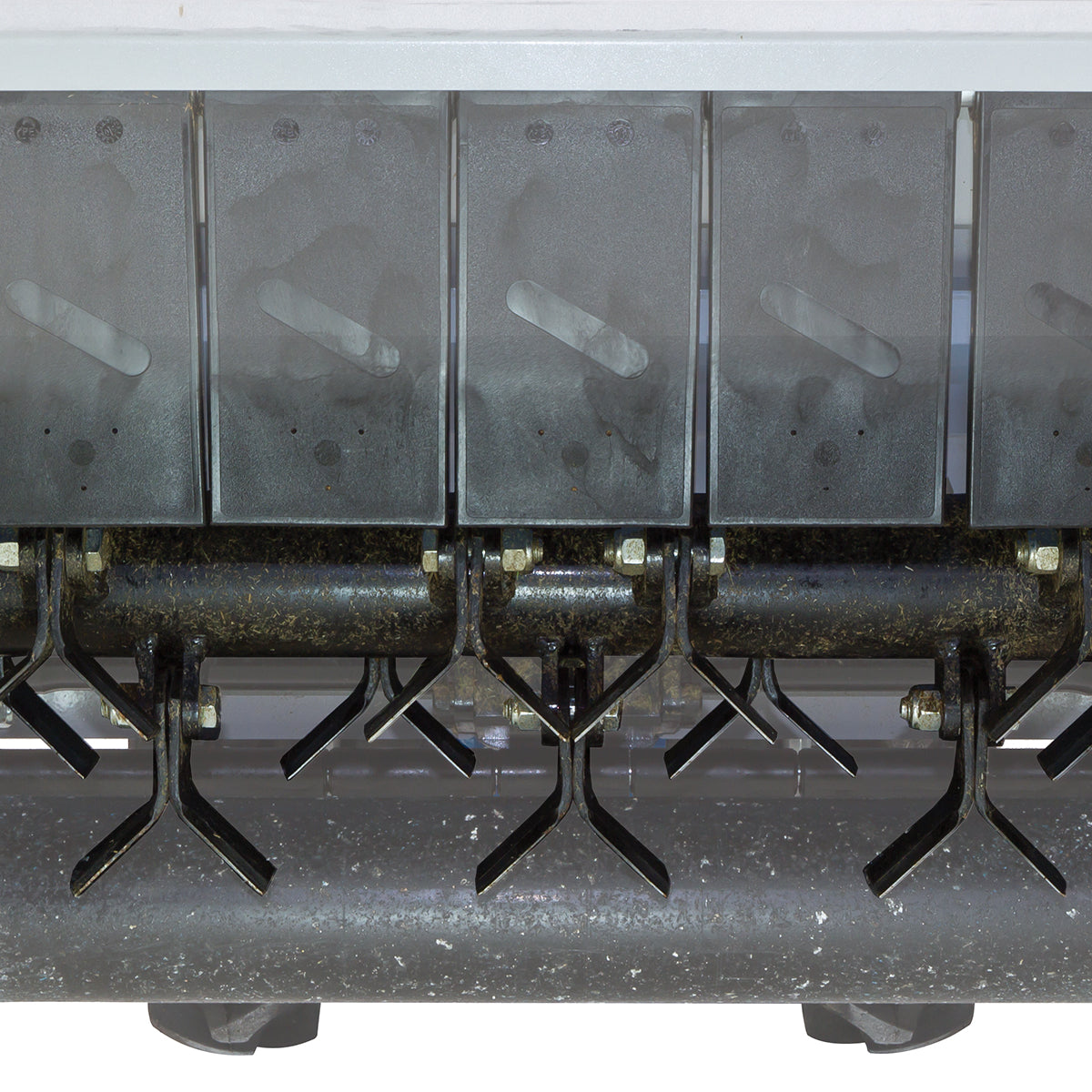

    The 85cm flail features 36 heavy duty free-swinging blades which are fitted to a horizontal roller and arranged in a staggered, or overlapping, layout to provide coverage. It works at a high cutting speed so the blades rotate fast to cut, mulch, and leave a fantastic finish.

    Specifications

    Weight

    200kg

    Dimensions (L x W x H)

    200cm x 89cm (Wheels)/ 63cm (Handlebars) x 99cm

    Warranty

    3yr Domestic / 2yr Commercial

    Engine

    Honda GX390 Banks

    Brakes

    Clutch / Brake steering system & Parking brake

    Maximum Gradient

    Up to 40 degrees

    Flail Width

    85cm (33")

    Gears

    3 Forward & 3 Reverse

    Wheels

    8.00 x 10 Lug

    Features

    Patented Hydraulic Clutch

    The patented PowerSafe® clutch offers unrivalled levels of performance and reliability. The disc inside the clutch are forced together using hydraulic power to provide instant torque and efficient transfer of power. Importantly this also means that the wheels and working implement stop very quickly when the operator presence lever is released.

    Implements for the BCS 630WSBF

    Click on the link below to see which other implements and accessories the BCS 630WSBF can operate.

    CLICK HERE FOR IMPLEMENTS

    3 Forward & 3 Reverse Speeds

    The BCS 630WS is designed to be used with the handlebars positioned over the engine. The machine features multiple working speeds allowing the operator to efficiently navigate different conditions and applications.

    Honda Banks Engine

    The BCS 630WS is powered the Honda banks engine. Specifically for use on steep slopes this engine features a special one-way valve to guarantee optimal lubrication on slopes, a membrane fuel pump to ensure an optimal fuel flow, and a maximum fuel level indicator and inner-vent carburettor to avoid overfilling and to guarantee safe operation under all conditions.

    Gears

    One of the main reasons that the BCS 630WS uses the all gear drive system is that it efficiently transfers the power from the engine to the wheels and power take off. Fully hardened, the gears are extremely durable and last for many years.

    Strong PTO Drive

    The BCS power units use a 3 pin claw system to transfer the power from the engine to the working implement. This system is extremely strong and ensures that the power unit has an extremely long lifetime

    Downloads

    Parts Diagram

    Brochure

    Datasheet

    Operating Manual
