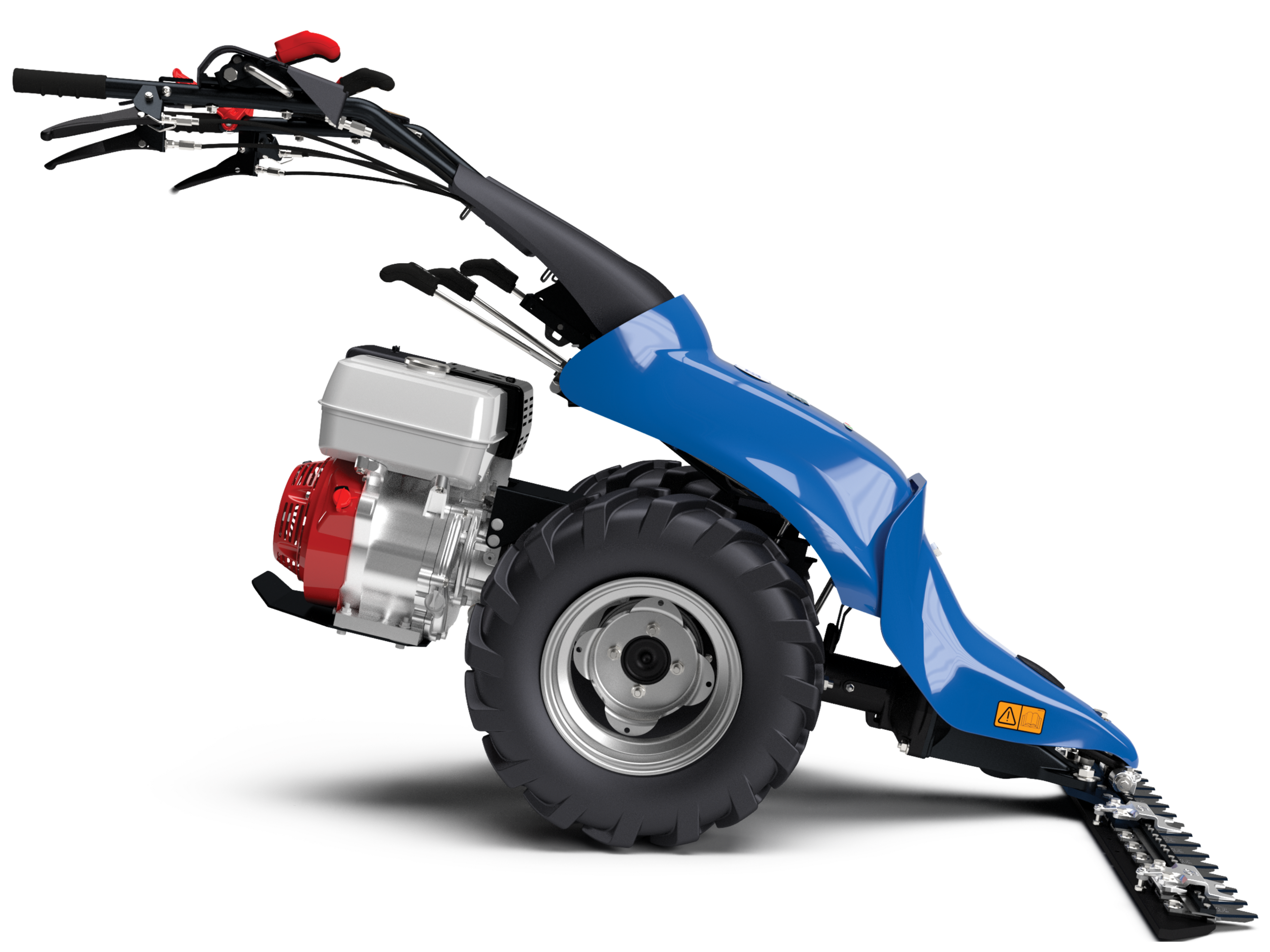

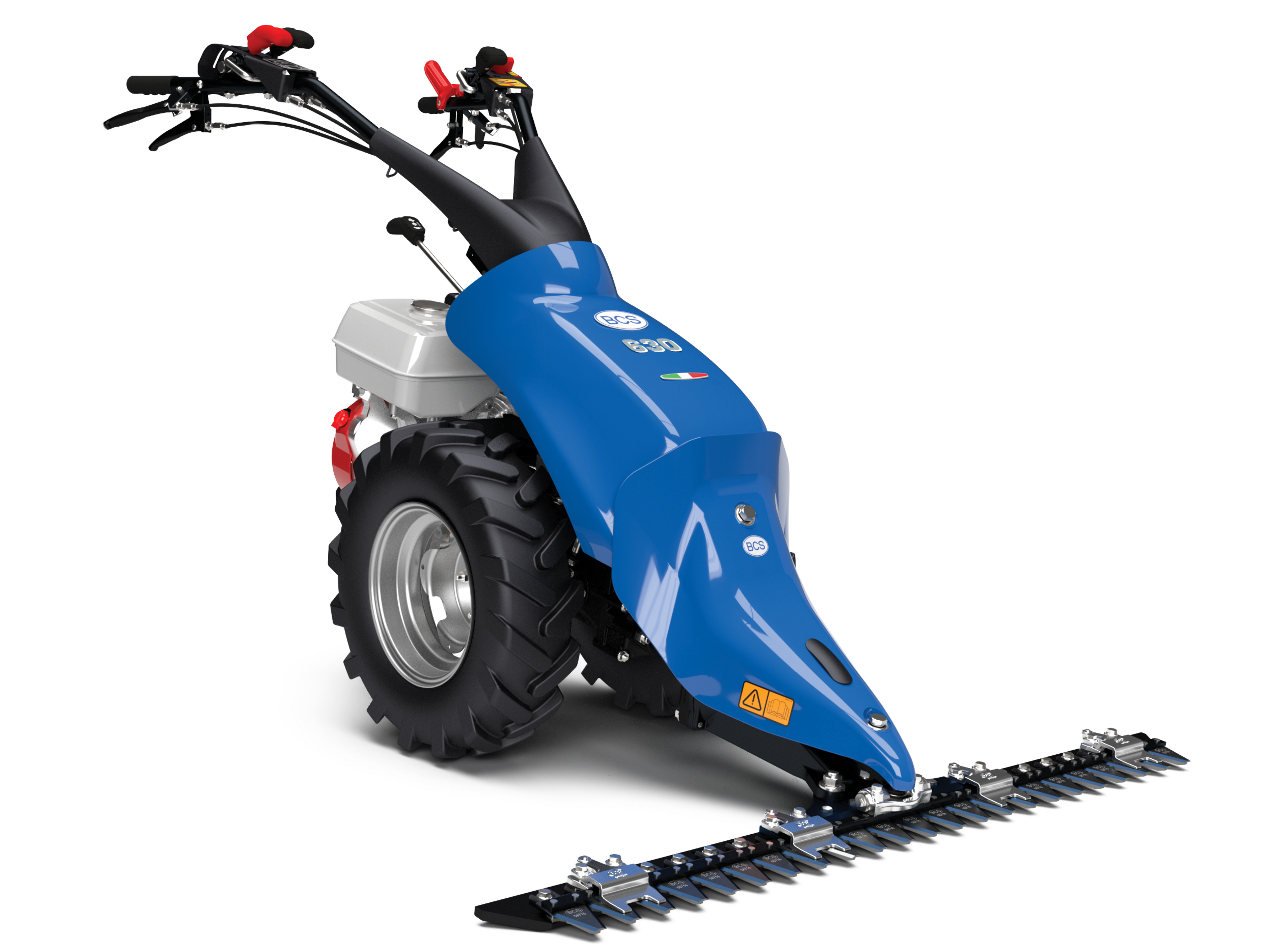

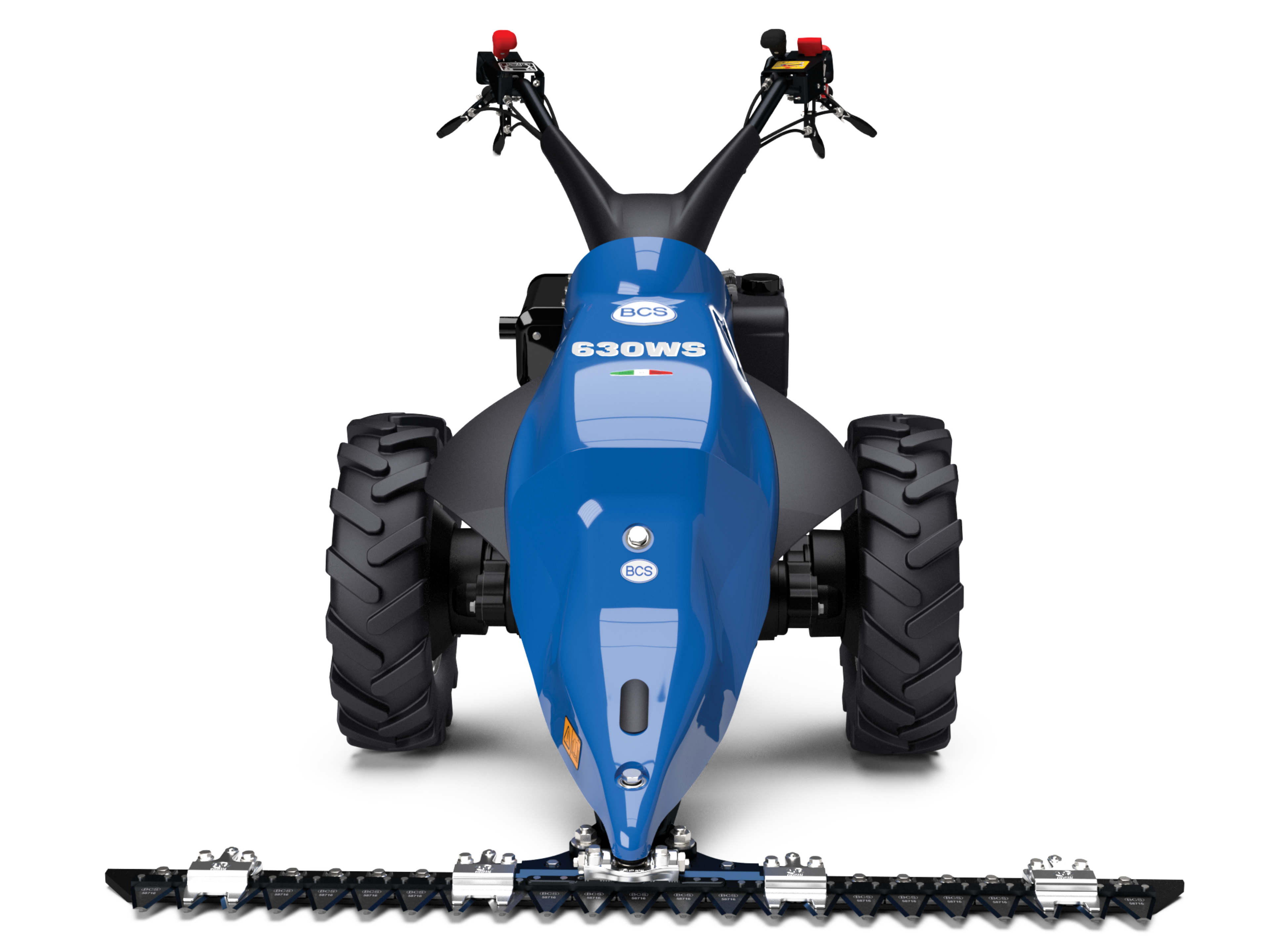

BCS 630 Crusader Power Scythe

  • Regular price List Price ex VAT: £3,040.00
  • Regular price Price inc VAT: £3,040.00



Featuring steering brakes and locking differential the BCS 630 is recommended for cutting areas over 5 acres in size.



Why the BCS 630 Crusader Power Scythe?
The BCS 630 is the largest machine in the Crusader range. The power unit has a powerful Honda GX270 engine and large 5.00 x 10 wheels.

There is also the option of a banks version of the Honda engine, which allows the machine to be used on slopes. For extra stability and traction, steel cage wheels can be added or the wheels can be twinned.

With a choice of wider cutter bars, bigger wheels, and faster working speeds, the 630 is ideally suited to larger, more open areas such as meadows and fields.

The larger wheels and engine on this power unit allow it to be fitted with a wide range of other implements including a chipper-shredder, flail mower, sweepers, snow blowers and more for maximum versatility.



Implements and Attachments
The BCS Crusader Power Scythes are capable of operating a range of other front-mounted implements.

However, unlike the Two Wheel Tractors, the handlebars on these machines do not rotate 180° so they cannot operate the ground cultivation attachments.

See the IMPLEMENTS tab above for more details.

Heavy duty serrated teeth will effortlessly cut the toughest vegetation
Skids on the cutter bar for simple cutting height adjustment
Anti wheel wrap cover to prevent material from getting caught round wheel axles.
Strong PTO gears for reliable performance and long life.
Powerful and reliable engines ensure great performance time after time.
Handlebars can be offset to either side and are adjustable for height.

630 Engine

Model Honda GX270 Honda GX270 banks
Fuel Petrol Petrol
Net Power Output 8.4hp / 6.3kW @3600rpm 8.4hp / 6.3kW @3600rpm
Starting Recoil Recoil
Fuel Tank Capacity 5.3L 5.3L
Fuel Consumption 2.4L per hour @3600rpm 2.4L per hour @3600rpm


630 Power Unit

Gears 4 forward (inc travel speed) & 3 reverse

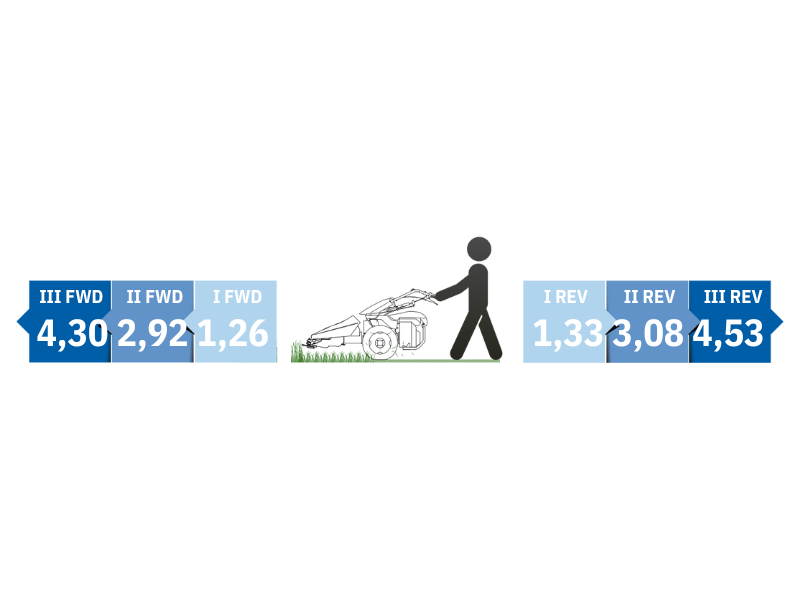

Speeds Forward: I: 1.26 II: 2.92 III: 4.30 IV: 13.40
Reverse: I: 1.33 II: 3.08 III: 4.53
Brakes Steering brakes
Differential Locking differential
Wheels 5.00 x 10 agricultural
Weight 95kg
Dimensions Length: 180cm
Width: 64cm (at handlebars)
58cm (at wheels)
Height: 120cm
Warranty Domestic use: 3 years
Commercial use: 2 years


Scythe Cutter Bar

Cutting Width 115cm (45") 135cm (53")
No of Blades 23 27
Drive Movement Short oil bath Long oil bath Short oil bath Long oil bath
Weight 42kg 46kg 44kg 48kg
