BCS 738 PowerSafe® Two Wheel Tractor with Rotavator
BCS 738 PowerSafe® Two Wheel Tractor with Rotavator
BCS 738 Rotavator
BCS 738 Rotavator
BCS 738 Rotavator

BCS 738 Rotavator (C10)

Serious power and a differential to operate lots of implements.

£3,780.00
£3,780.00 RRP ex VAT £4,536.00 RRP inc VAT

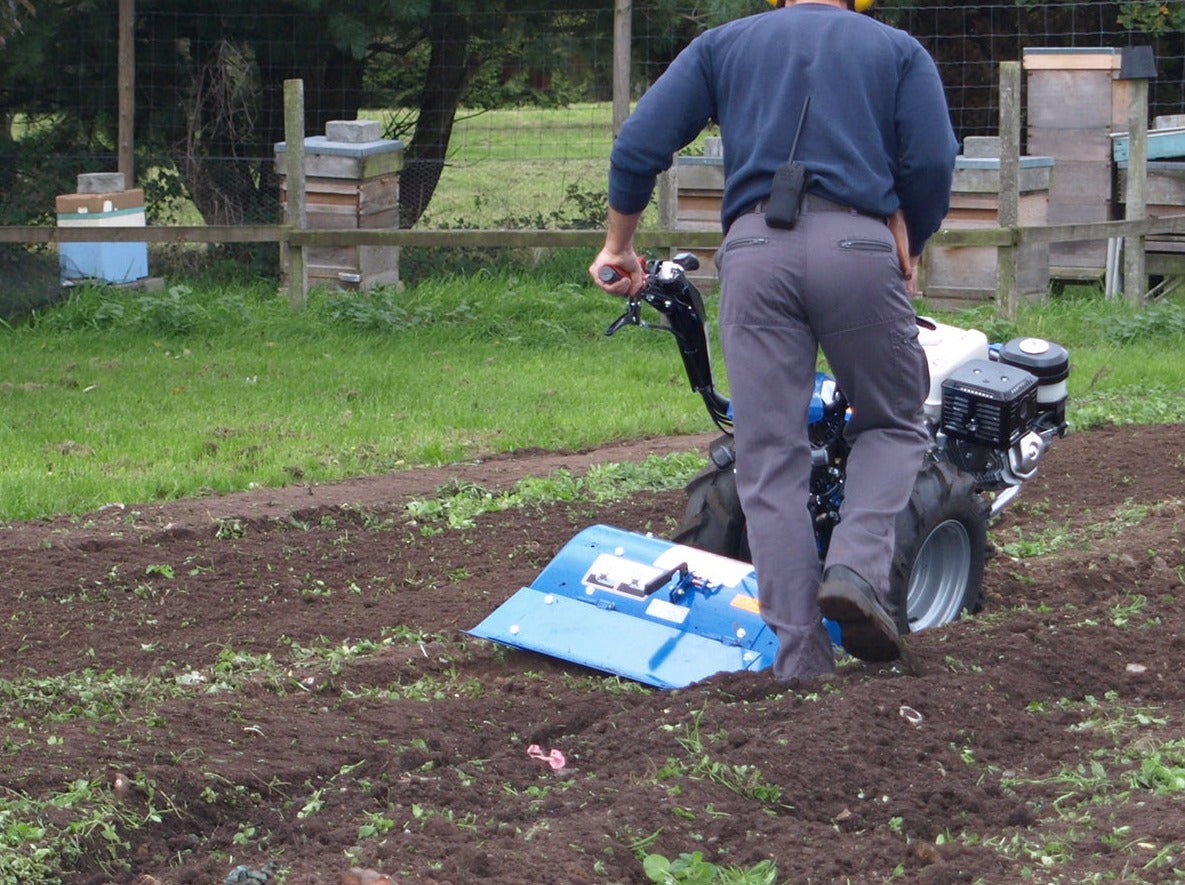

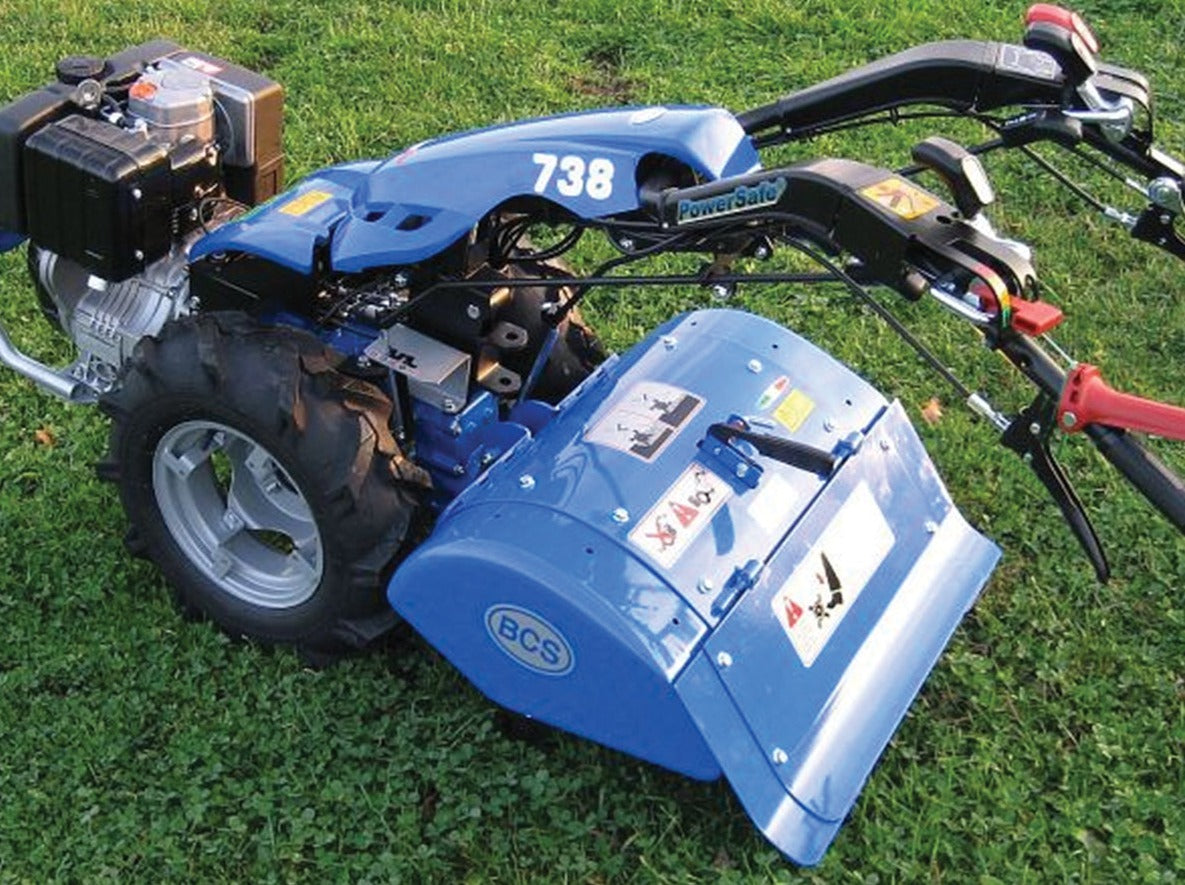

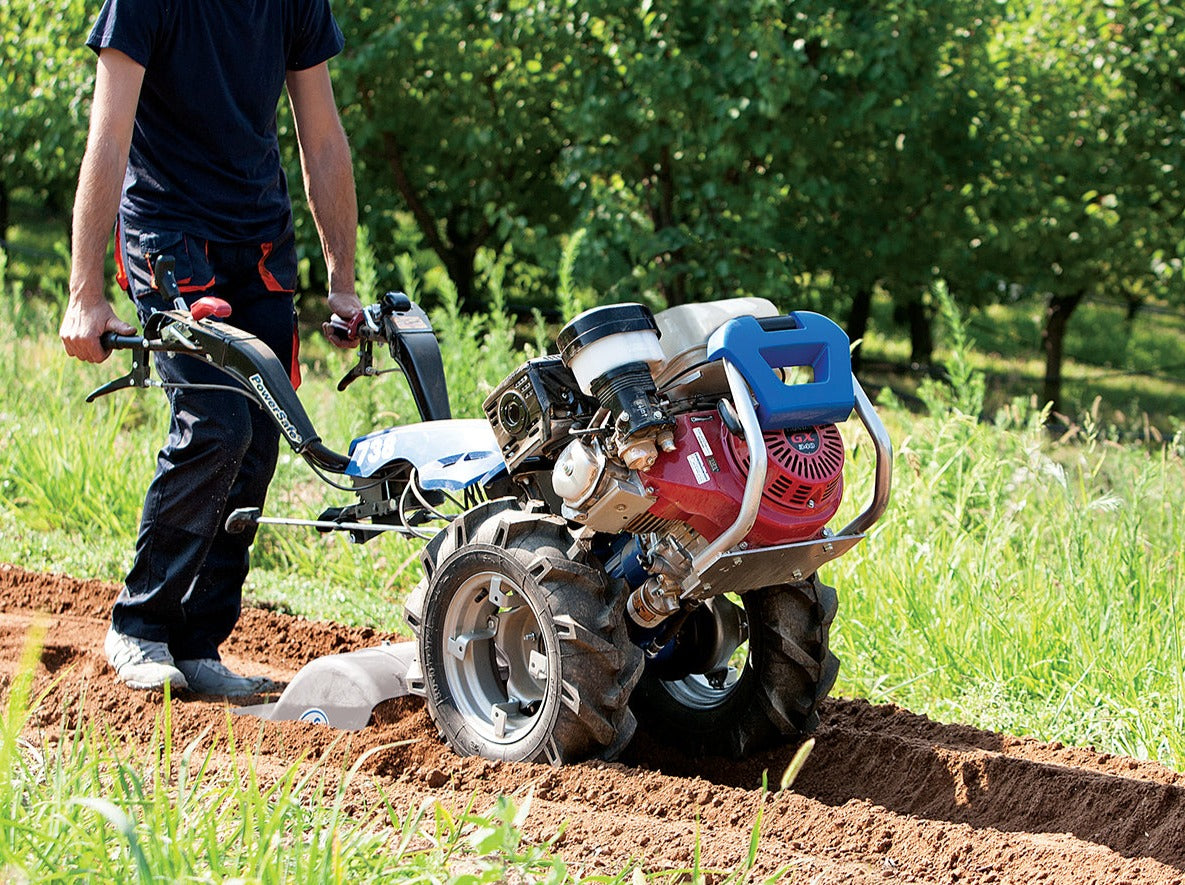

The BCS 738 Rotavator is manufactured by BCS S.p.A. and is ideal if you're looking for a large, powerful rotavator that's also capable of undertaking a range of other tasks. It's perfect for professional users as well as allotment owners and smallholders, and has a 66cm wide rotavating width, three working speeds, and a choice of a petrol or diesel engine. It also has the ability to operate attachments including flail and mulching mowers, ploughs, ridger and potato lifter amongst others.

Engine: Honda GX270 Petrol

Engine: Honda GX270 Petrol
Honda GX270 Petrol
Honda GX340 Petrol

american expressgoogle paymaestromasterpaypalshopify payvisa
SKU: 8CCCC5B0N.92190871H

Description

The machine uses two drives; one controls the wheels to move the machine forwards and the other controls the digging tines. Because both drives are functioning simultaneously the machine is effectively doing all the work.

The rotavator will keep digging for as long as it is in contact with the ground and in good conditions, and after a few passes, it can dig down to a depth of up to 8" (20cm).

The digging depth is easily controlled via the control lever which is located on top of the digging box. To increase the digging depth simply move the lever up or for shallow digging move it all the way in.

The BCS 738 Rotavator is perfectly balanced with a choice of petrol engines and a 26" (66cm) wide rotavator box. With three forward and reverse speeds for faster operation (particularly when using the grass cutting attachments) and large wheels with a locking differential for fantastic manoeuvrability and on-the-spot turning, this rotavator offers simplicity, reliability and outstanding performance.

Specifications

Weight

140kg (GX270) / 142kg (GX270El) / 146kg (GX340)

Dimensions (L x W x H)

180cm x 57cm (wheels)/64cm (handlebars) x 120cm

Warranty

3yr Domestic / 2yr Commercial

Engine Option 1

Honda GX270

Engine Option 2

Honda GX270 Electric Start

Engine Option 3

Honda GX340

Wheels

5.00 x 10 agricultural

Differential

Locking differential

Working Speeds

3 Forward and 3 Reverse

Features

Patented Hydraulic Clutch

The patented Powersafe clutch offers unrivalled levels of performance and reliability. The disc inside the clutch are forced together using hydraulic power to provide instant torque and efficient transfer of power. Importantly this also means that the wheels and working implement stop very quickly when the operator presence lever is released.

Implements for the BCS 738

Click on the link below to see which implements and accessories fit on the BCS 738 Two Wheel Tractor.

CLICK HERE FOR IMPLEMENTS

3 Forward & Reverse Speeds

The BCS 738 can be operated in forward and reverse when the handlebars are positioned either over the engine or over the implement. A useful feature is that the working speed of the machine is faster when operating grass cutting implements, allowing the user to cover and cut more ground.

Strong PTO Drive

The BCS range of two wheel tractors use a 3 pin claw system to transfer the power from the engine to the wokring implement. This system is extremely strong and ensures that the power unit has an extremely long lifetime.

Honda Engines

The top of the range Honda engines offer power and reliability that you can rely on over many years. The electric start option can be a useful option for situations where many people are required to operate the machine as the simple key starting system can be easily taught.

Powerful Gear Drive

One of the main reasons that BCS two wheel tractors is the all gear drive system that efficiently transfer the power from the engine to the wheels and power take off. Fully hardened, the gears are extremely durable and last for many years.

Downloads

Parts Diagram

Brochure

Datasheet

Operating Manual
