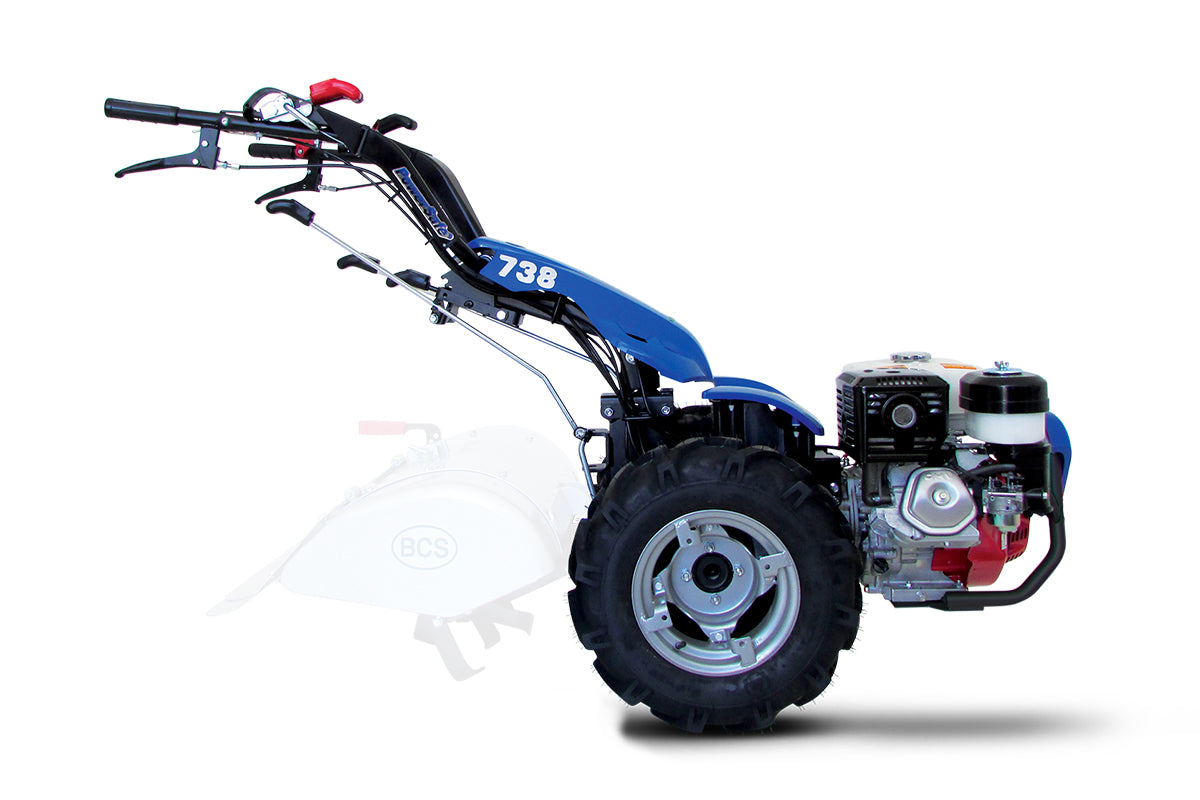

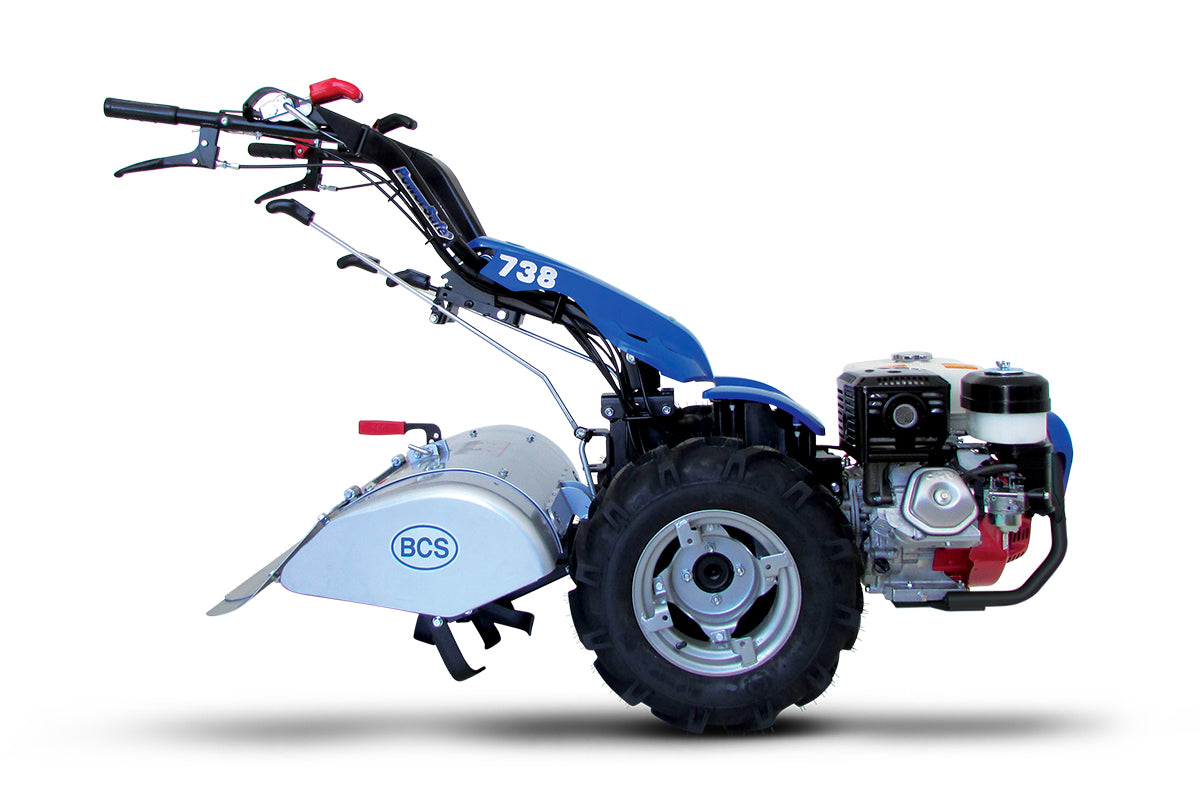

BCS 738 Two Wheel Tractor
- Regular price Price ex VAT: £2,475.00
- Regular price Price inc VAT: £2,475.00
The versatile BCS 738 can be fitted with over 20 different implements allowing you to achieve a vast range of work with one power unit.
See the compatibility table for details.
Why the BCS 738 Two Wheel Tractor?
The BCS 738 has larger wheels, a choice of engines, and extra working speeds so is able to operate a wider range of implements than the smaller 728.
Whilst the 738 is physically larger than the 728, it has features to ensure it is easy to use including larger wheels, and a differential that can be locked to help with manoeuvrability when working on uneven terrain and unlocked to assist with on the spot turning.

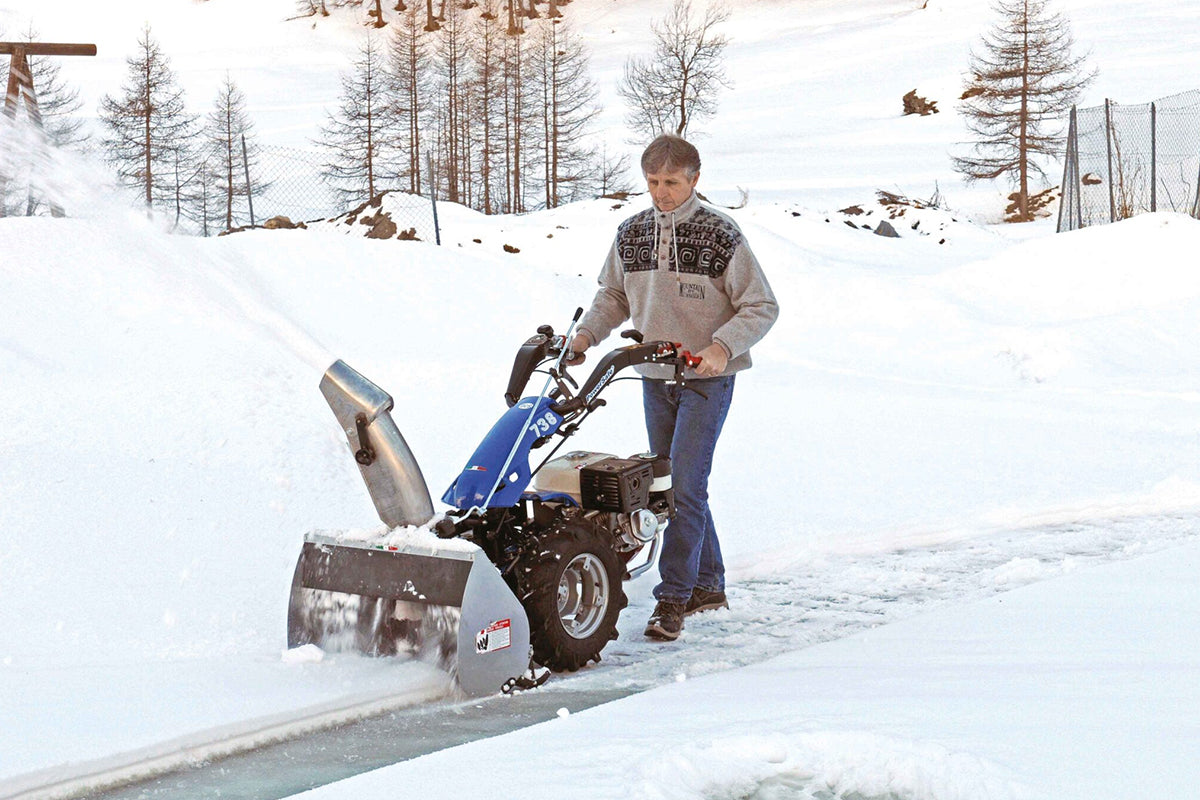

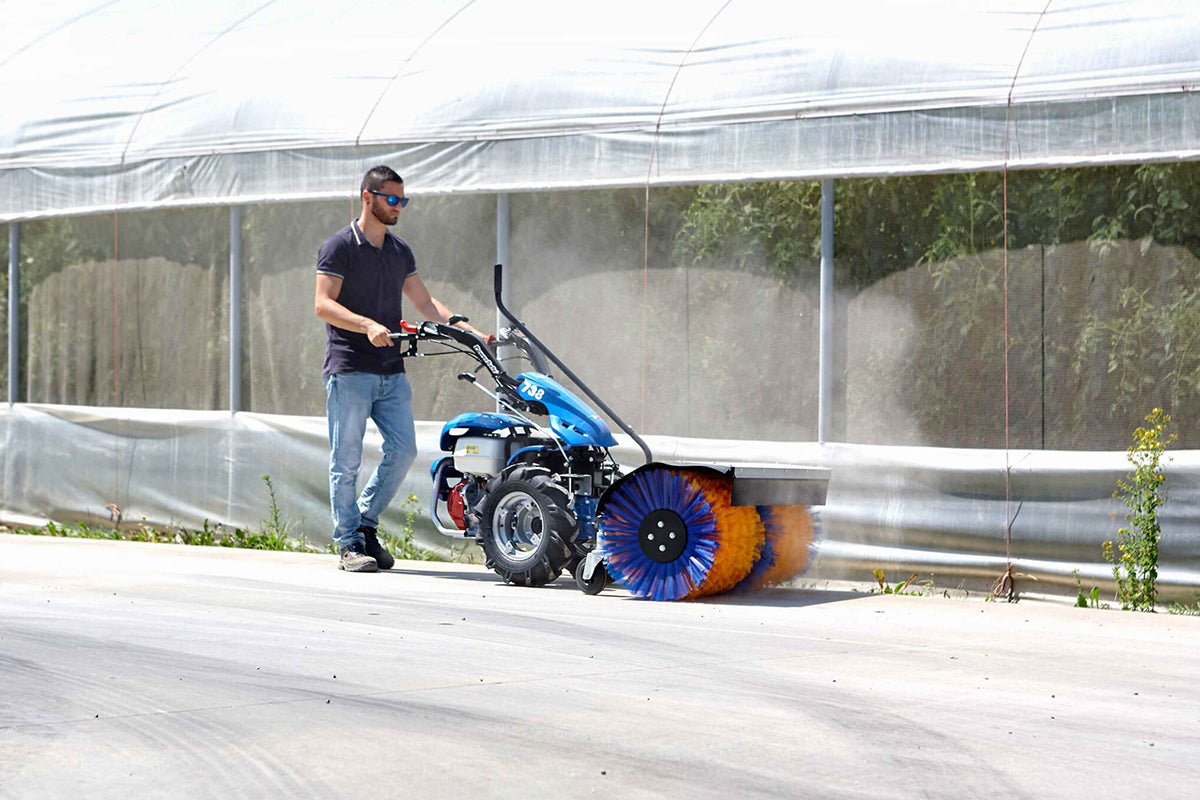

The flail mower and chipper-shredder are particularly useful, as is the large sweeper which can be used for clearing snow and leaves.
These features combine to give you a machine that is easy to operate and will quickly prove to be a tool on which you can depend.
If multiple attachments are used then optional implement quick coupling is useful.
Implements and Attachments
The BCS Two Wheel Tractors are supplied as power units only so that you can choose the implements required.
See the IMPLEMENTS tab above for more details.
Download the comparison table to easily see the features of all power units in the BCS Two Wheel Tractor range.
BCS 738 Engine
| Model | Honda GX270 | Honda GX340 | Kohler KD350 |
| Fuel | Petrol | Petrol | Diesel |
| Net Power Output | 8.4hp / 6.3kW @3600rpm |
10.7hp / 8.0kW @3600rpm |
7.5hp / 5.5kW @3600rpm |
| Starting | Recoil or Electric | Recoil | Recoil or Electric |
| Fuel Tank Capacity | 5.3L | 6.1L | 4.3L |
| Fuel Consumption | 2.4L per hour @3600rpm |
3.1L per hour @3600rpm |
1.4L per hour @3600rpm |
BCS 738 Power Unit
| Gears | 3 forward & 3 reverse | |||

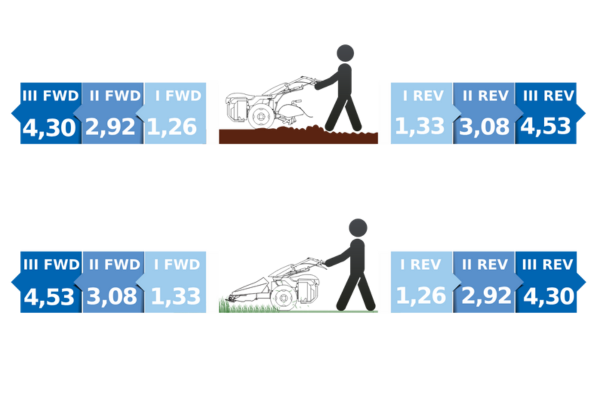

| Speeds | Forward: | I: 1.26 km/hr | II: 2.92 km/hr | III: 4.30 km/hr |
| Reverse: | I: 1.33 km/hr | II: 3.08 km/hr | III: 4.53 km/hr | |
| Brakes | Parking brake | |||
| Differential | Yes - locking differential | |||
| Wheels | 5.00 x 10 agricultural | |||
| Weight | Honda GX270: | 100kg | ||
| Honda GX270 (electric): | 102kg | |||
| Honda GX340: | 106kg | |||
| Kohler KD350: | 116kg | |||
| Dimensions | Length: | 180cm | ||
| Width: | 64cm (at handlebars) | |||
| 55cm (at wheels) | ||||
| Height: | 120cm | |||
| Warranty | Domestic use: | 3 years | ||
| Commercial use: | 2 years | |||
Parts Diagrams
Operating Manuals
 |
BCS PowerSafe® Two Wheel Tractor Instructions |
 |
BCS 'Action' Two Wheel Tractor Instructions |
|
Original BCS PowerSafe® Two Wheel Tractor Owner's Manual (all models) |
Technical Bulletins
|
BCS PowerSafe® OPC Cable Adjustment |
|
BCS PowerSafe® PTO Gear Changes |
|
How to Remove BCS Gearbox End Cover |
|
BCS Handlebar Upgrade Instructions |
