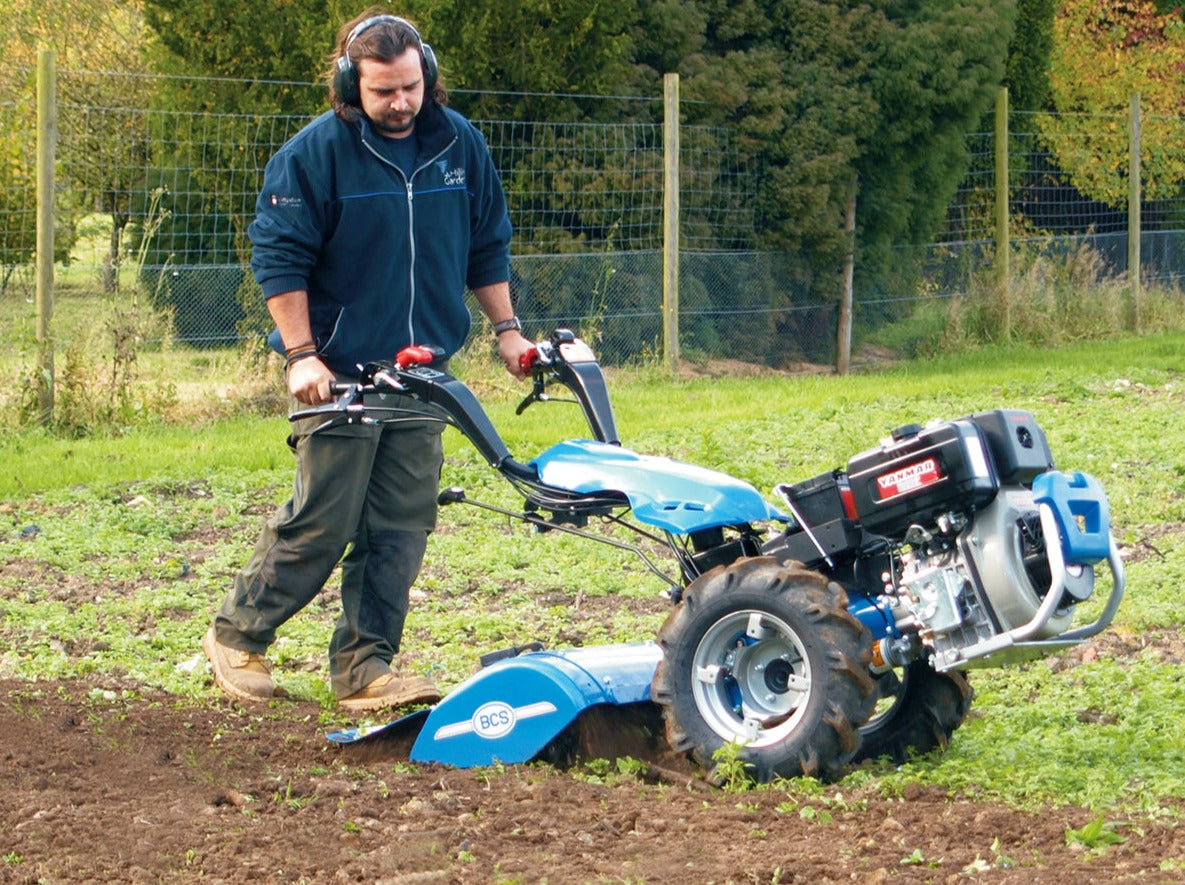

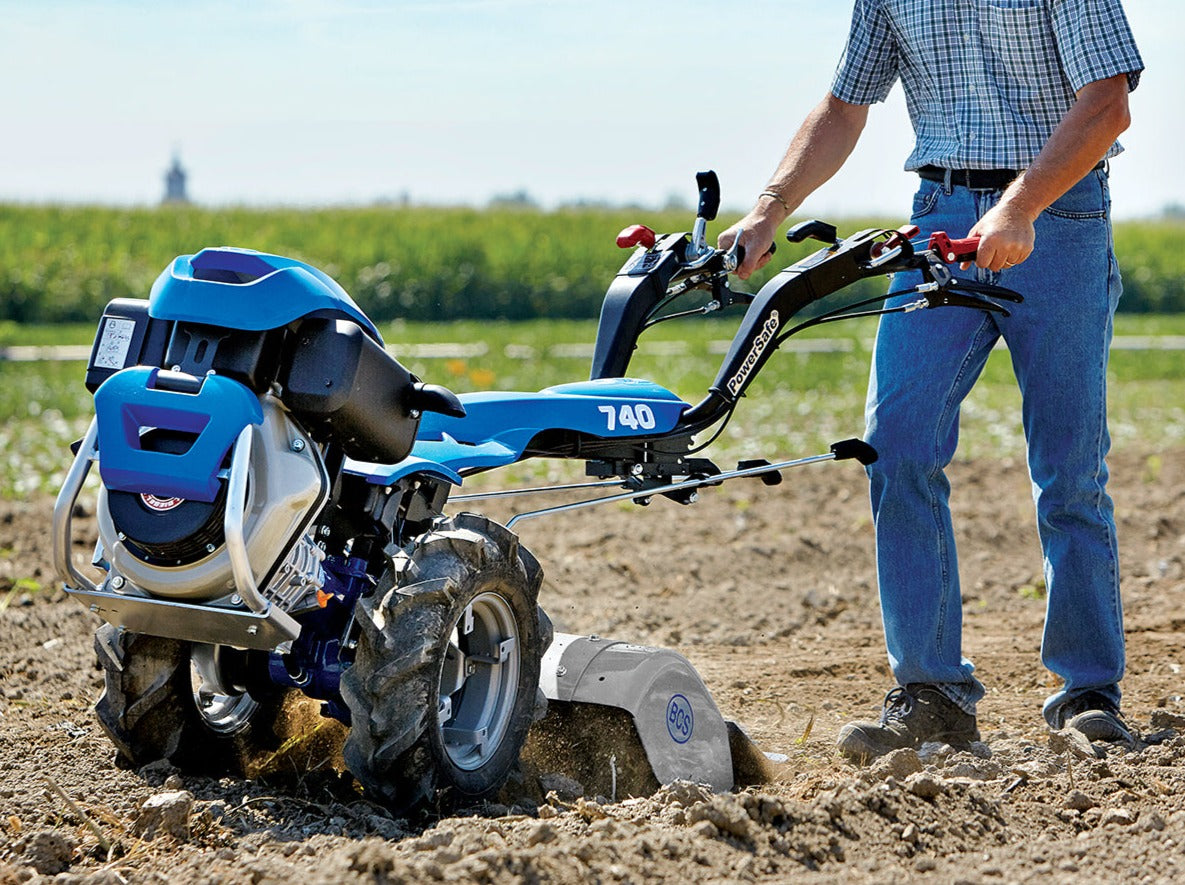

The BCS 740 Rotavator is the perfect machine if you're after a truly versatile unit to tackle different applications, or if you simply want a heavy duty rotavator for professional use.
The machine uses two different drives; one controls the wheels to move the machine forwards and the other controls the digging tines. Because both drives are functioning simultaneously the machine is effectively doing all the work.
The rotavator will keep digging for as long as it is in contact with the ground and in good conditions, and after a few passes, it can dig down to a depth of up to 8" (20cm). The digging depth is easily controlled via the control lever which is located on top of the digging box. To increase the digging depth simply move the lever up or for shallow digging move it all the way in.
Don't be put off by its larger size - this machine is perfectly balanced with a choice of a powerful petrol or diesel engine and a 26" (66cm) wide rotavator box.
The three forward and reverse speeds allow for faster operation (particularly when using the grass cutting attachments) and the large 5.00 x 10 agricultural wheels ensure that it's easy to manoeuvre.
The BCS 740 Rotavator also has the added benefit of a locking differential making it easy to use on difficult terrain and steering brakes for on-the-spot turning and easy manoeuvrability. All these features combine to make sure that this rotavator is functional, versatile and durable.
BCS 740 Rotavator (C13) Specification
|Model||Honda GX390||Yanmar L100N|
|Net Power Output||11.7hp / 8.7kW
|10.0hp / 7.4kW
|Fuel Tank Capacity||6.1L||5.5L|
|Fuel Consumption||3.5L per hour
|2.1L per hour
|Gears||3 forward & 3 reverse|
|Speeds||Forward:||I: 1.26 km/hr||II: 2.92 km/hr||III: 4.30 km/hr|
|Reverse:||I: 1.33 km/hr||II: 3.08 km/hr||III: 4.53 km/hr|
|Wheels||5.00 x 10 agricultural|
|Width:||75cm (at handlebars)|
|58cm (at wheels)|
|Warranty||Domestic use:||3 years|
|Commercial use:||2 years|
|Digging Width||66cm (26")|
|Digging Depth||20cm (8")|
|No of Tines||20|
