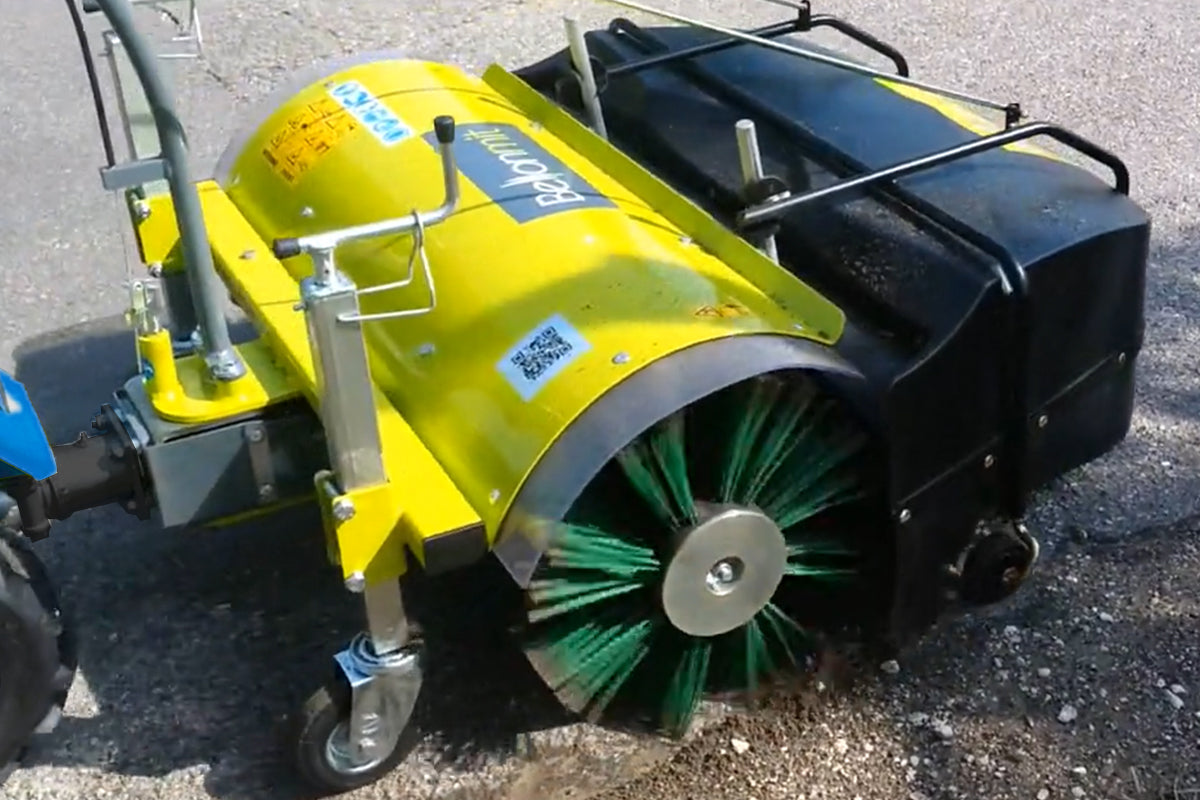

Power Brush with Optional Collector
- Regular price Price ex VAT: £1,495.00
- Regular price Price inc VAT: £1,495.00

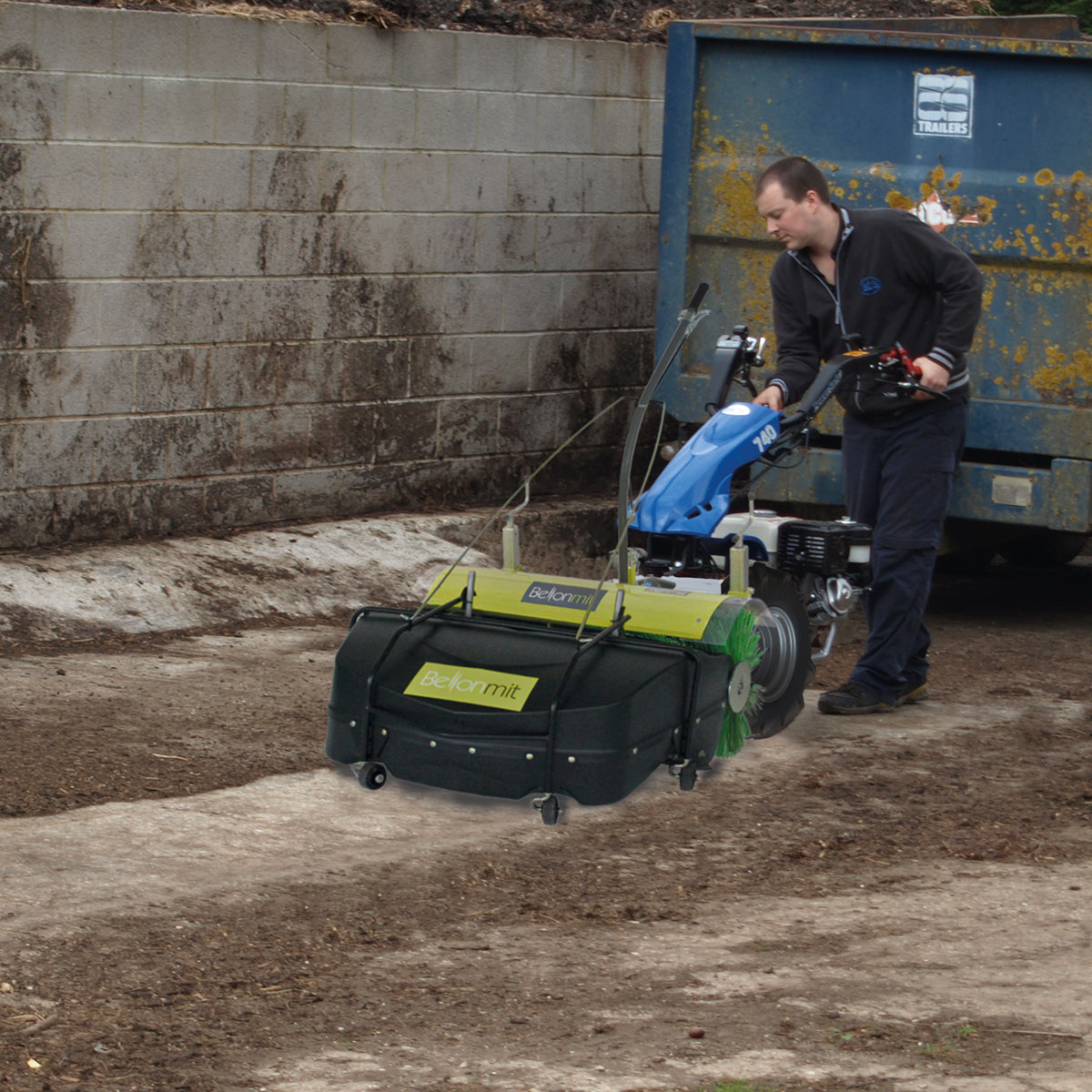

This brush is perfect for sweeping streets, squares, courtyards, lawns and snow. It can be operated with or without the optional collector.

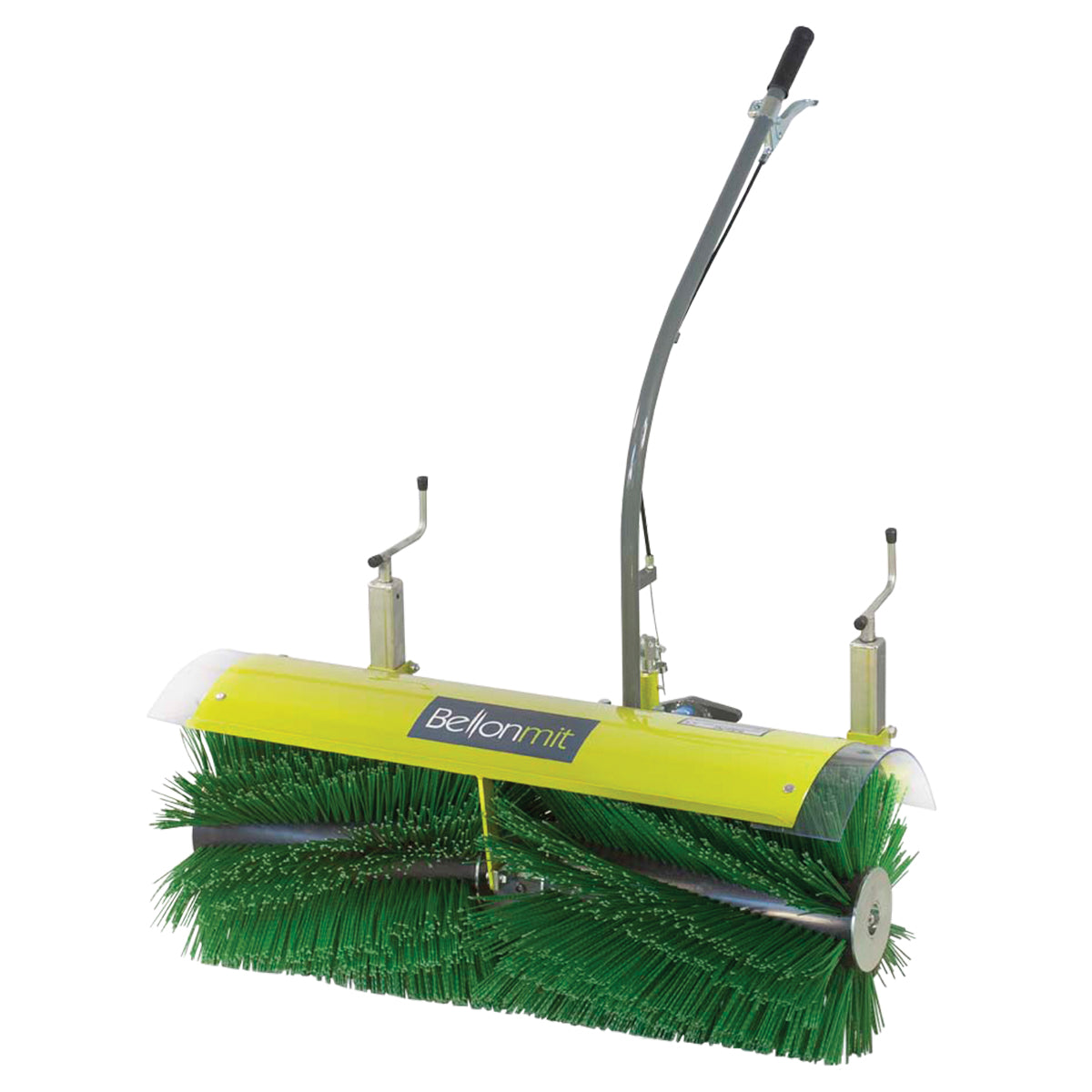

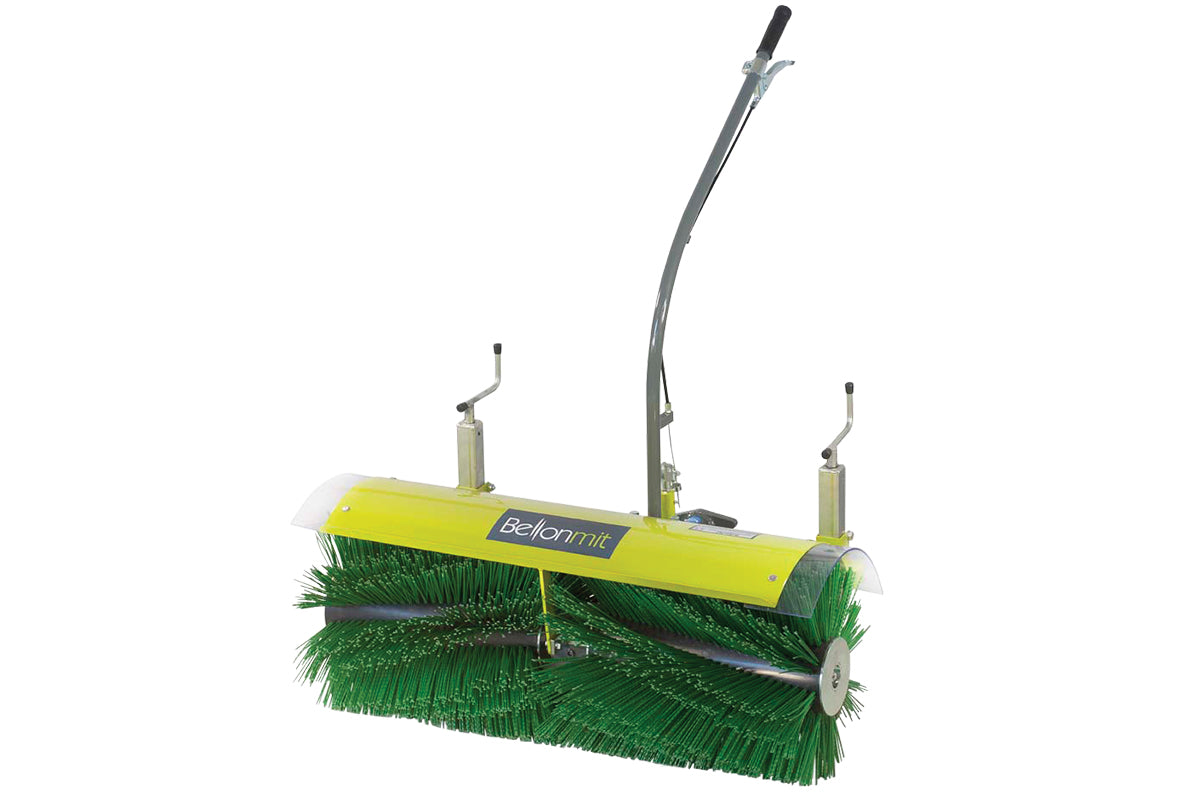

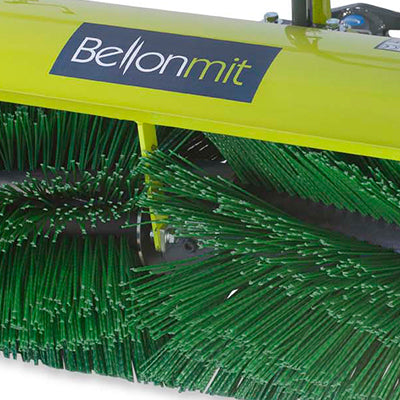

Manufactured by Bellon Mit, this 100cm wide powered brush is available with or without the collector, and is fitted with hard wearing nylon bristles which are mounted on rollers (one each side).
The rear castor wheels assist with manoeuvrability and also allow for easy height adjustment - simply rotate the handles to make the brush higher or lower. The working angle is easily adjusted either left, right or straight ahead using the conveniently located lever.

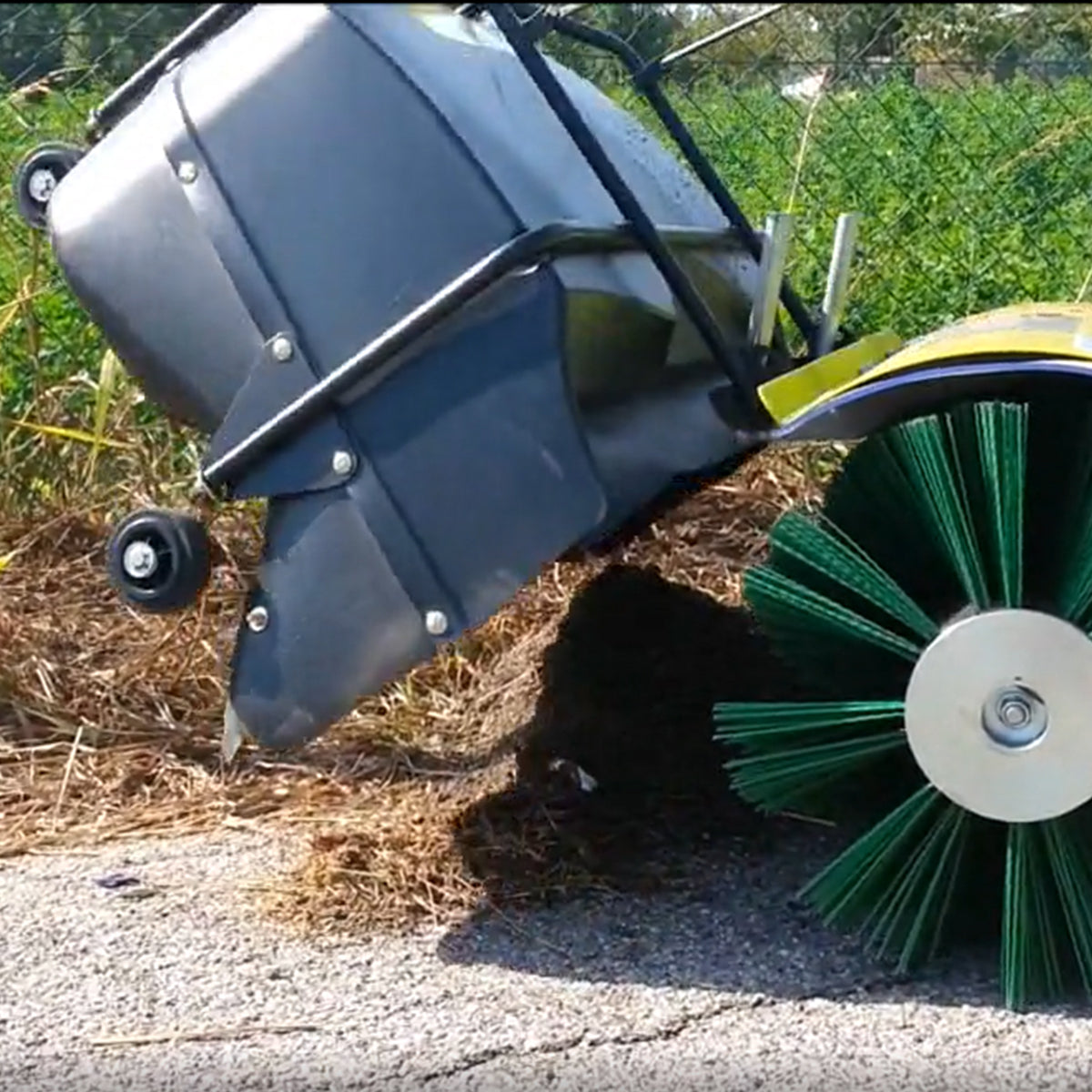

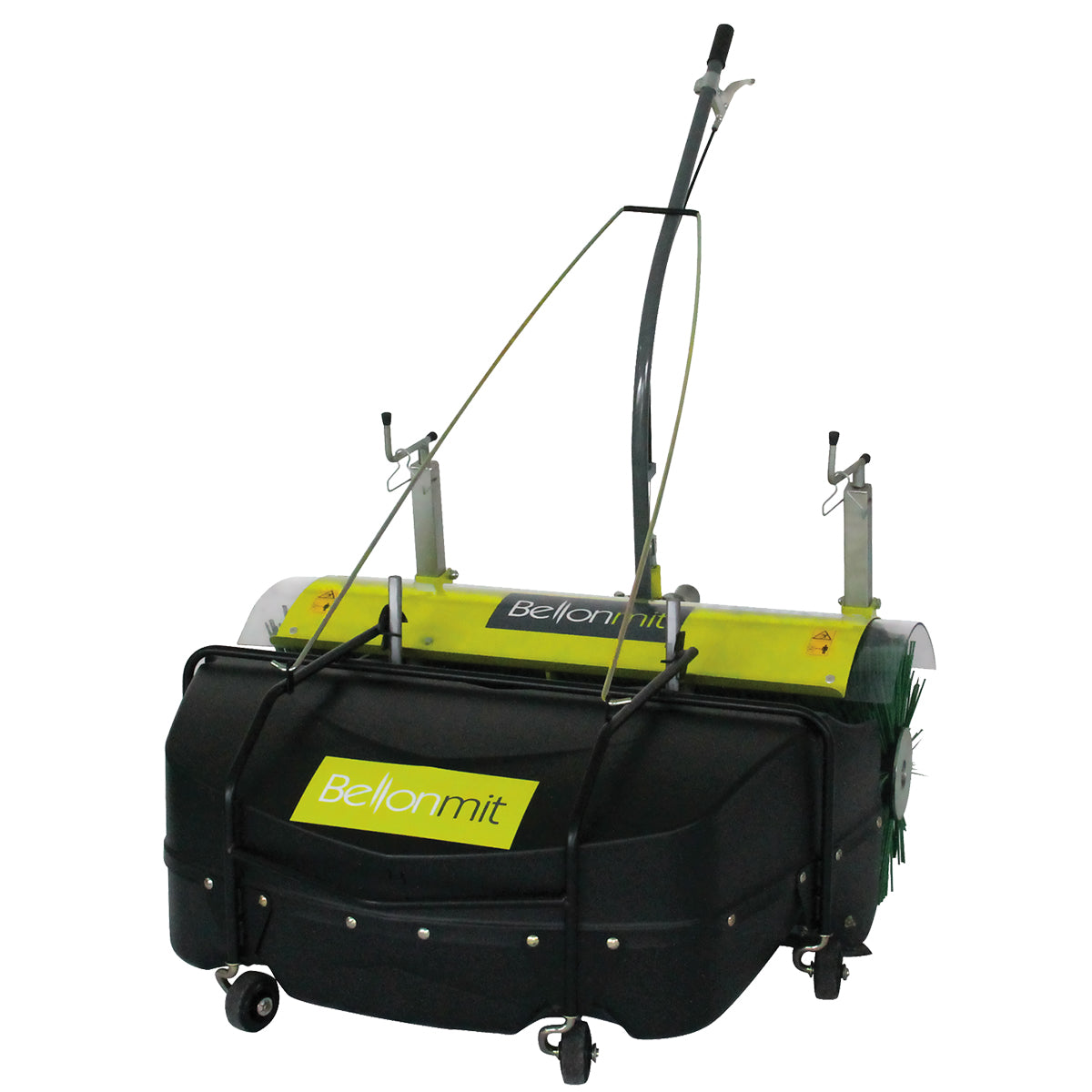

The large collector can be easily attached to the brush and is fitted with 4 castor wheels to assist with manoeuvrability.

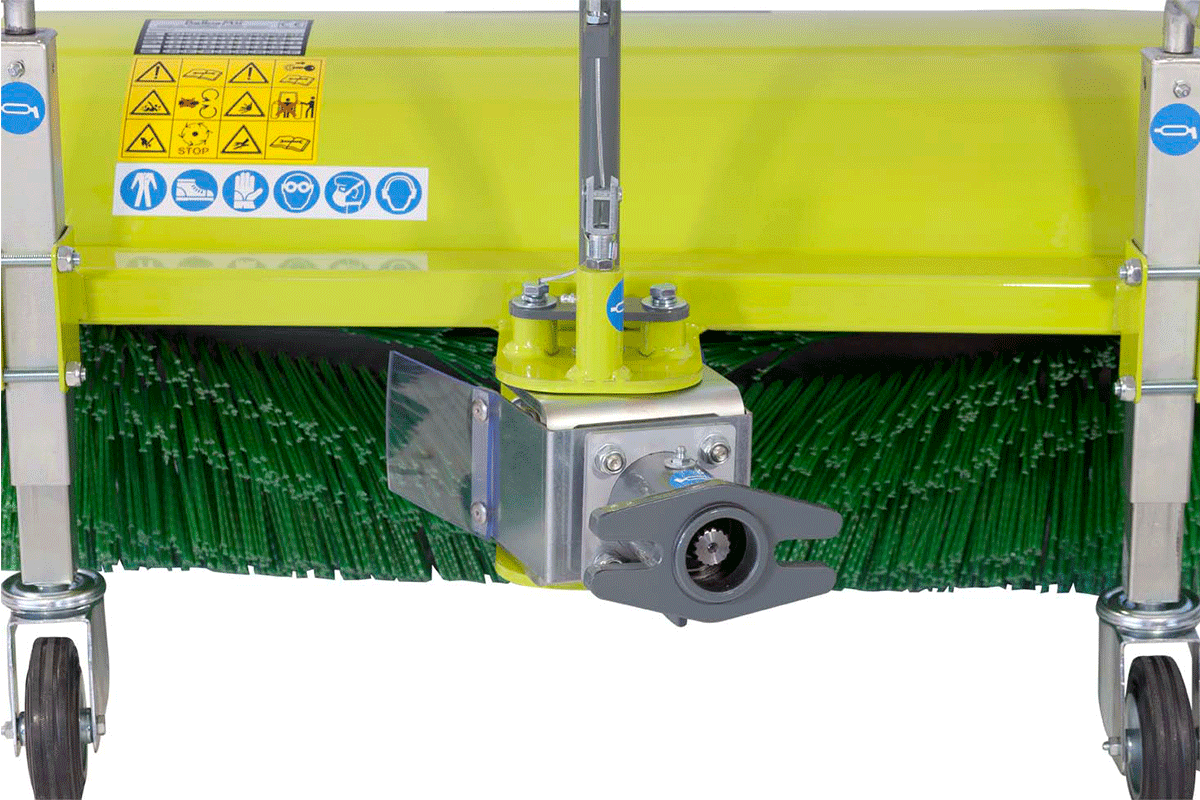

Because the brush is PTO mounted, it will also pivot separately to the tractor to follow the contours of the ground.

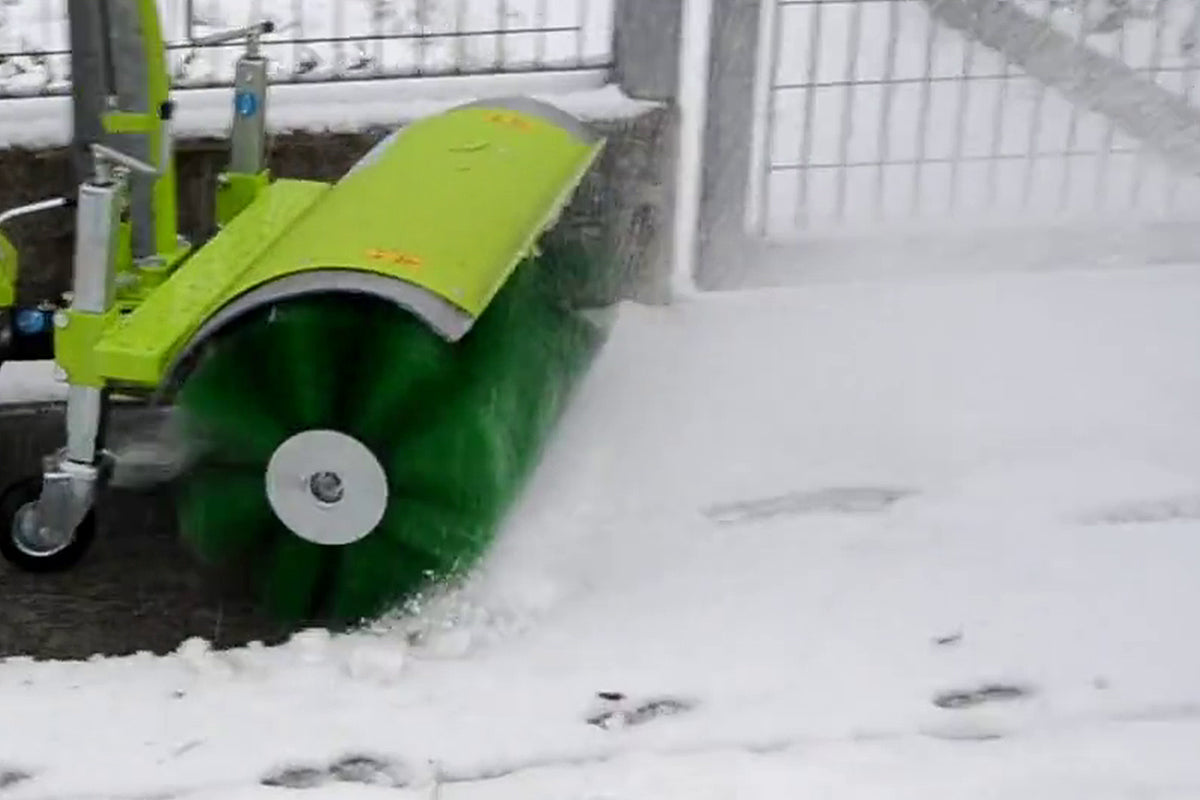

This powered brush is the ideal tool for many different sweeping applications including leaves, moss, mud, general debris, snow and more.
| Power Brush with Optional Collector | |
| Working Width | 100cm (40") |
| Collector | Optional |
| Brushes | 2 sections |
| Transmission | Gears |
| PTO RPM | 990 |
| PTO Rotation | Clockwise |
| Dimensions (L W H) | 450 x 100 x 800cm |
| Weight | 55kg |
Which power units will the power brush fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | |
| BCS 740 | ✔ |
| BCS 750 | ✔ |
| BCS 770HY | ✔ |
| BCS 614 | |
| BCS 615 | |
| BCS 618 | |
| BCS 630 | ✔ |
| BCS 630WS | ✔ |
| BCS 660HY | ✔ |
What are the minimum power unit requirements?
8.4hp petrol engine.
Two working speeds.
Locking differential.
4.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.
Please note: The BCS 660HY and 750 power units have their own specific coupler.
Parts Diagrams
BCS Implements & Attachments Diagrams
Operating Manuals
BCS Implements & Attachments Operating Manuals
Technical Bulletins
- Features
-
Manufactured by Bellon Mit, this 100cm wide powered brush is available with or without the collector, and is fitted with hard wearing nylon bristles which are mounted on rollers (one each side).The rear castor wheels assist with manoeuvrability and also allow for easy height adjustment - simply rotate the handles to make the brush higher or lower. The working angle is easily adjusted either left, right or straight ahead using the conveniently located lever.
The large collector can be easily attached to the brush and is fitted with 4 castor wheels to assist with manoeuvrability.
Because the brush is PTO mounted, it will also pivot separately to the tractor to follow the contours of the ground.
This powered brush is the ideal tool for many different sweeping applications including leaves, moss, mud, general debris, snow and more.
- SPECIFICATION
-
Power Brush with Optional Collector Working Width 100cm (40") Collector Optional Brushes 2 sections Transmission Gears PTO RPM 990 PTO Rotation Clockwise Dimensions (L W H) 450 x 100 x 800cm Weight 55kg
- COMPATIBILITY
-
Which power units will the power brush fit to?
BCS 710 BCS 728 BCS 738 BCS 740 ✔ BCS 750 ✔ BCS 770HY ✔ BCS 614 BCS 615 BCS 618 BCS 630 ✔ BCS 630WS ✔ BCS 660HY ✔ What are the minimum power unit requirements?
8.4hp petrol engine.
Two working speeds.
Locking differential.
4.00 x 10 agricultural wheels.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.
Please note: The BCS 660HY and 750 power units have their own specific coupler.
