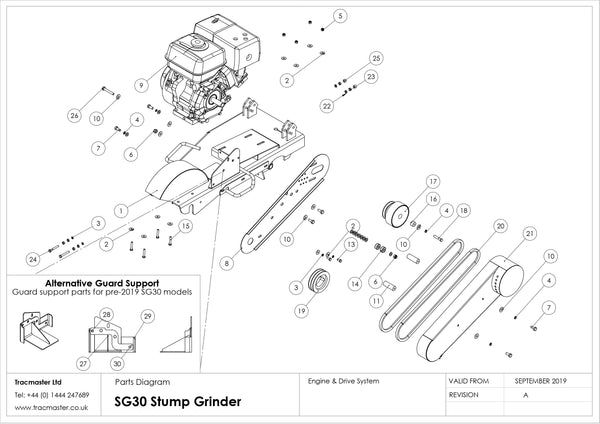

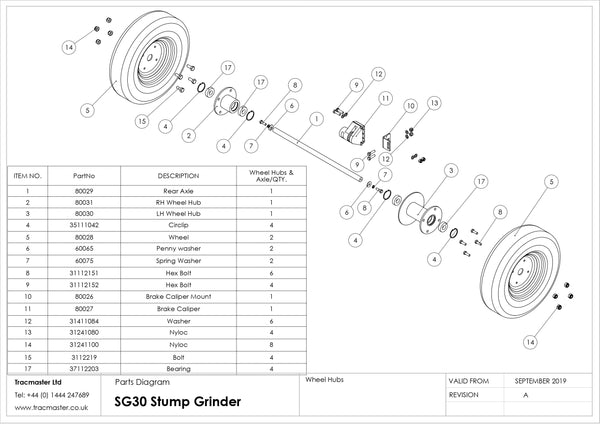

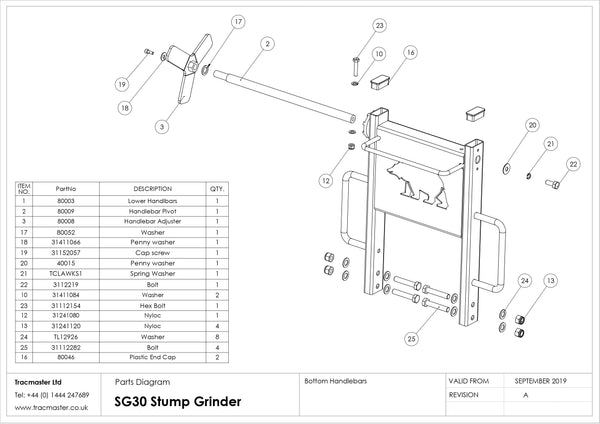

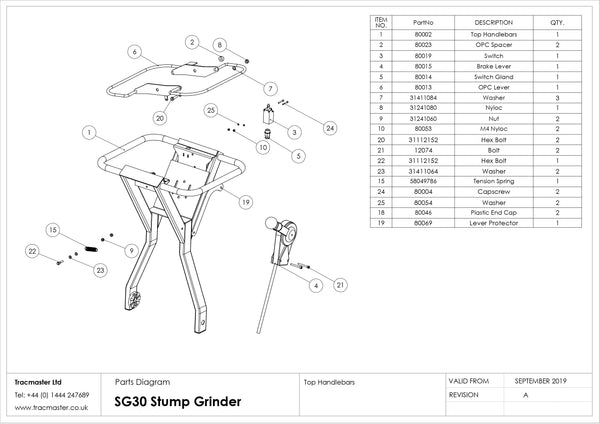

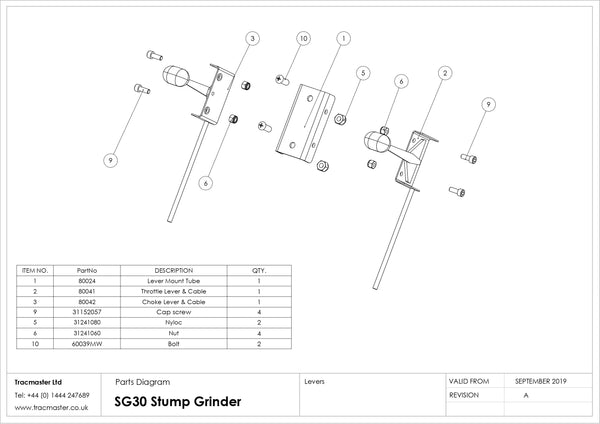

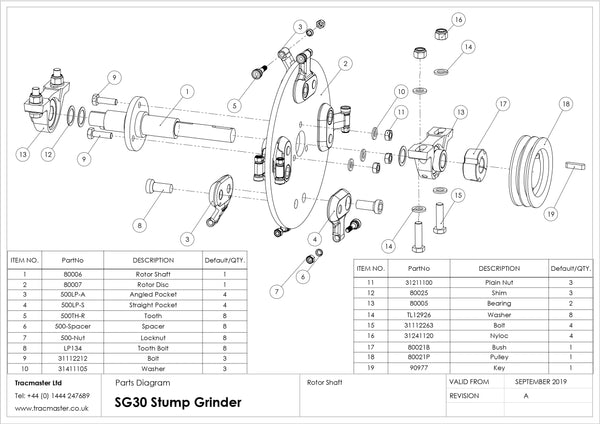

SG30 Parts Diagram Page 3
Pinch to zoom • Drag to pan
Scroll to zoom • Drag to pan

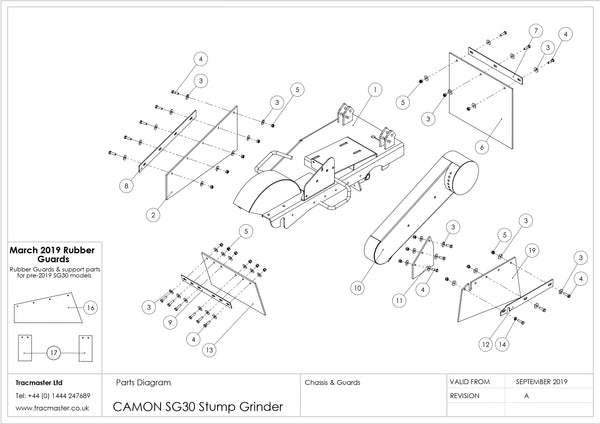

1
80001 - Main Chassis
2
60065 - Penny Washer (90947)
3
60075 - Washer
4
TCLAWKS1 - Spring Washer
5
31241080 - Nut
6
31241100 - Locknut
8
80016 - Rear Belt Guard
10
40015 - Penny Washer
11
80010 - Belt Guard Spacer
13
31100003 - Bolt
14
80022 - Bearing
15
31112155 - Bolt
16
80011 - Spacer
17
761636 - Clutch
18
40038 - Bolt
19
80021P - Pulley
20
80020 - SG30 Drive Belt
21
80018 - Belt Guard
22
31411084 - Washer
23
31211080 - Nut
24
31112156 - Bolt
25
80051 - Engine Tension Spacer
26
