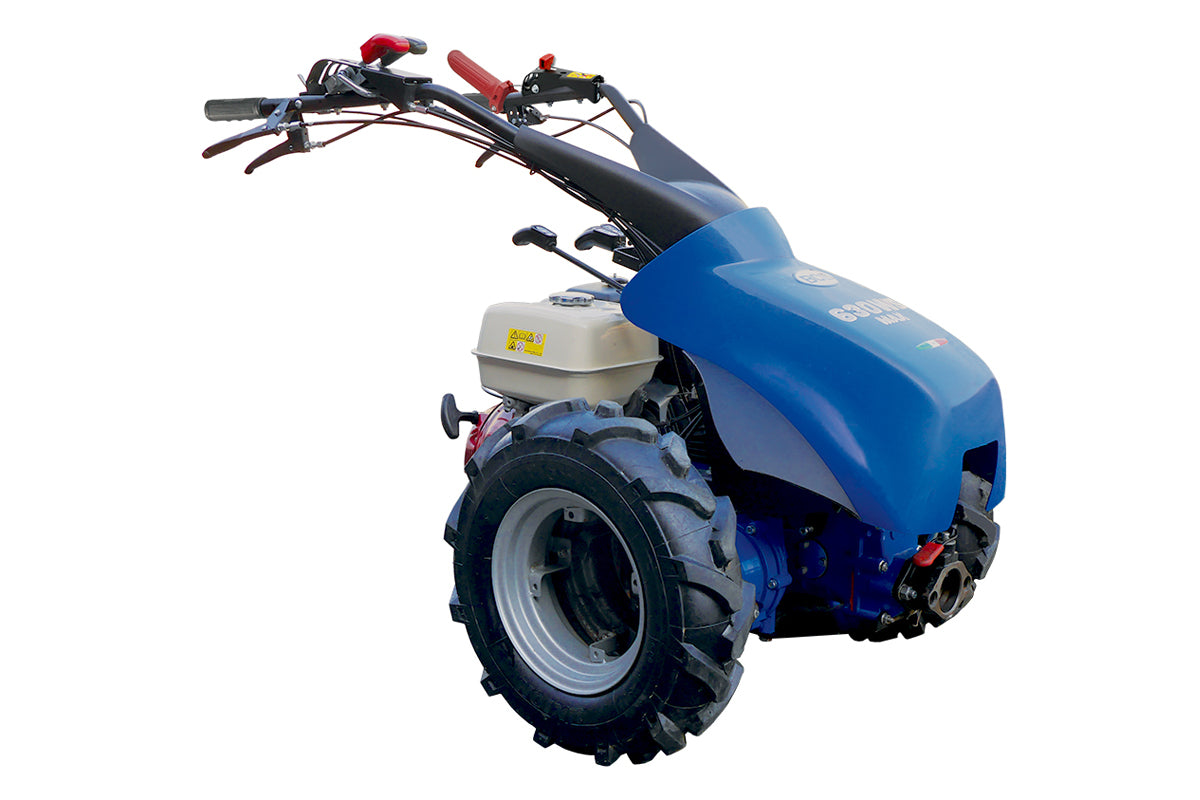

BCS 630WS Bank Commander
  • BCS 630WS Bank Commander

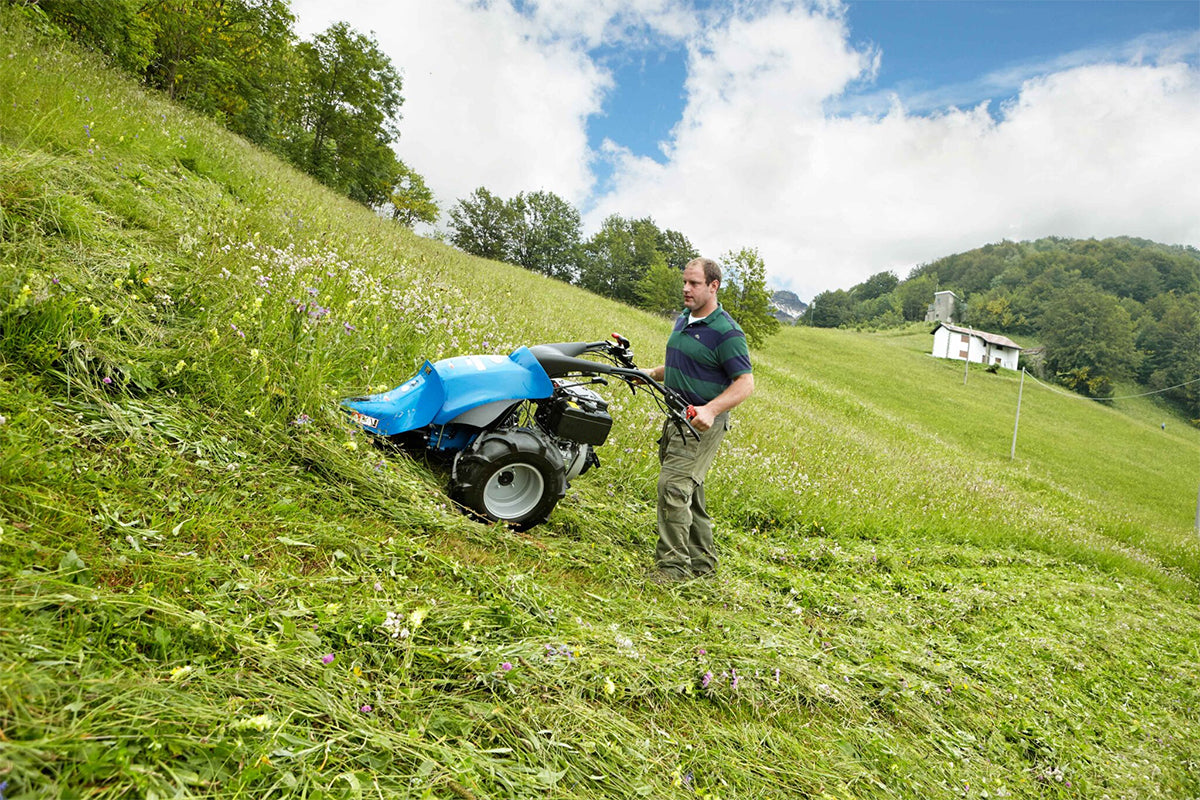

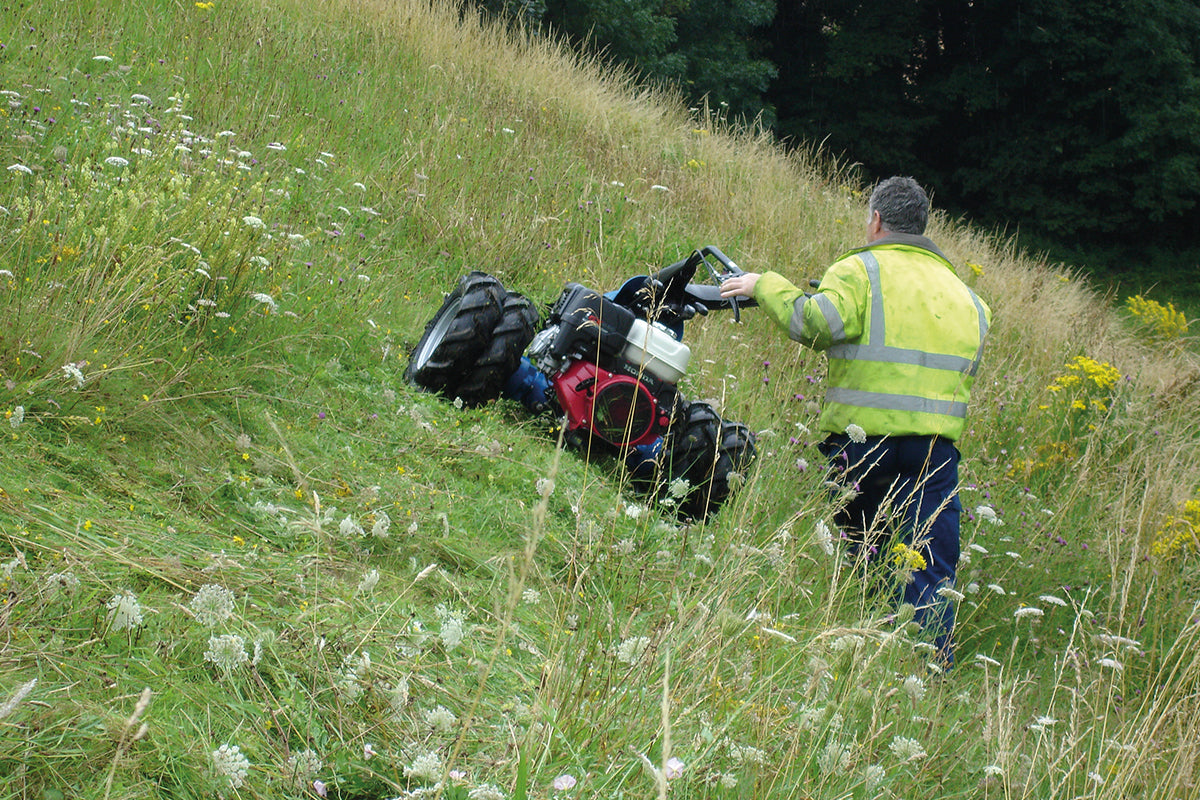

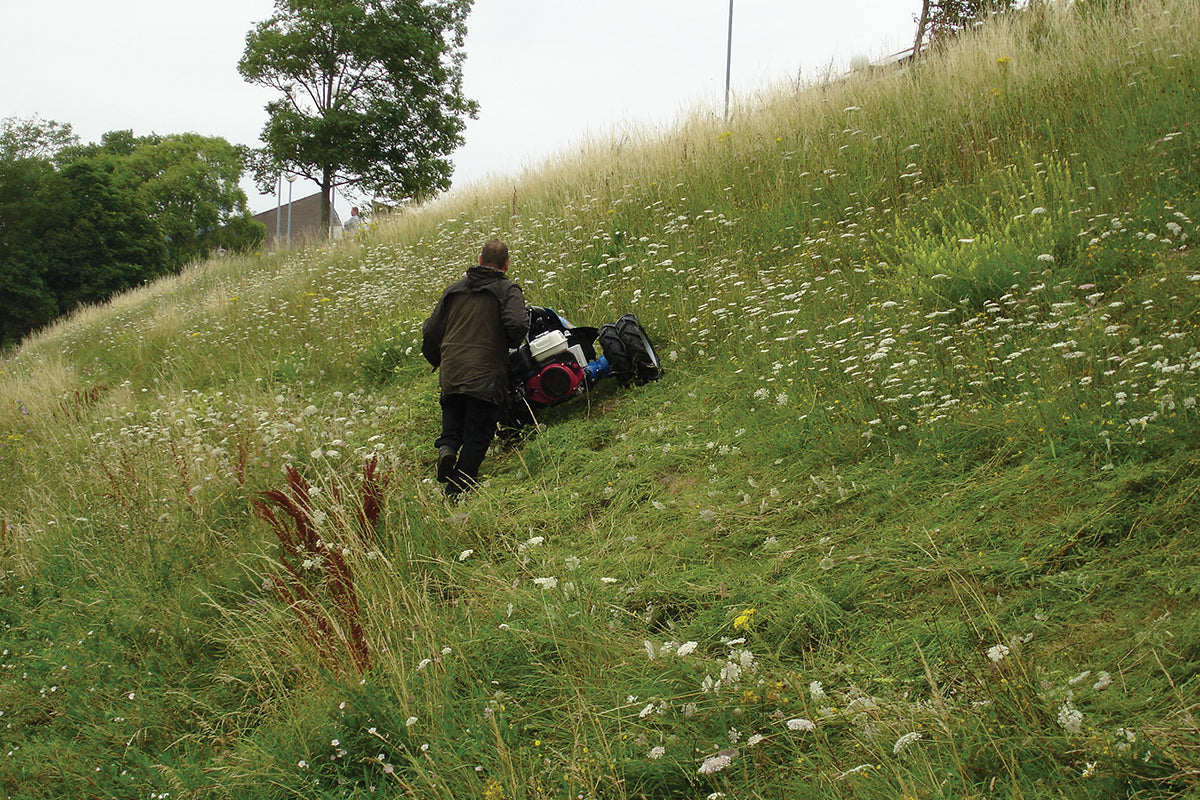

  • BCS 630WS Bank Commander with Scythe working on slope
  • BCS 630WS Bank Commander with Scythe working on slope
  • BCS 630WS Bank Commander with Scythe working on slope

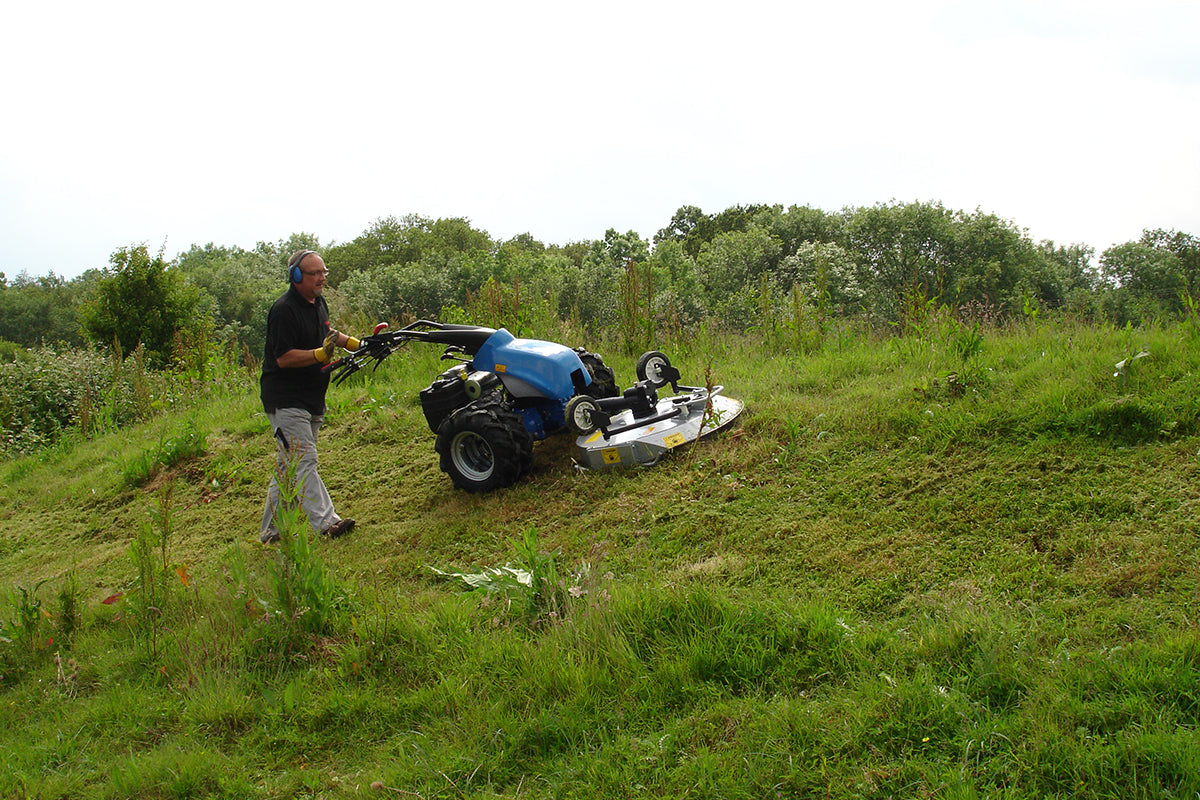

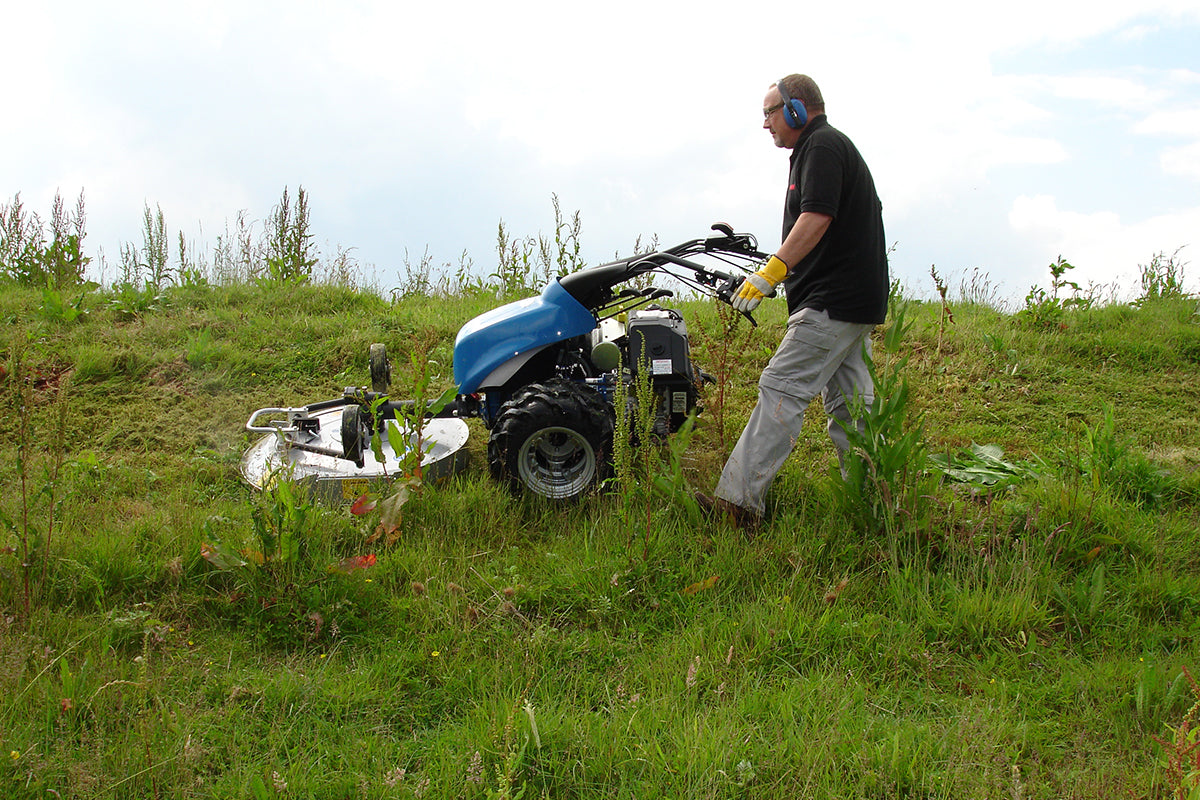

  • BCS 630WS Bank Commander with Mulching Mower working on slope
  • BCS 630WS Bank Commander with Mulching Mower working on slope

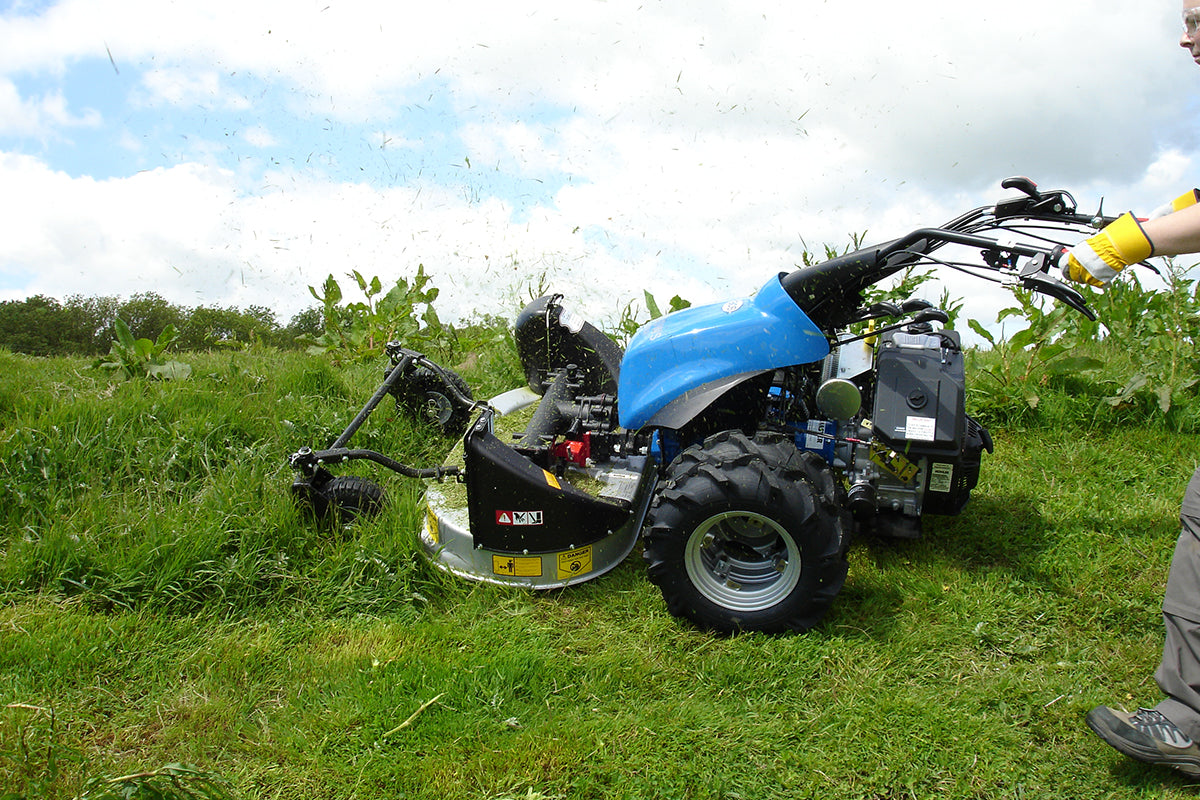

  • BCS 630WS Bank Commander with Rotary Mower working on slope

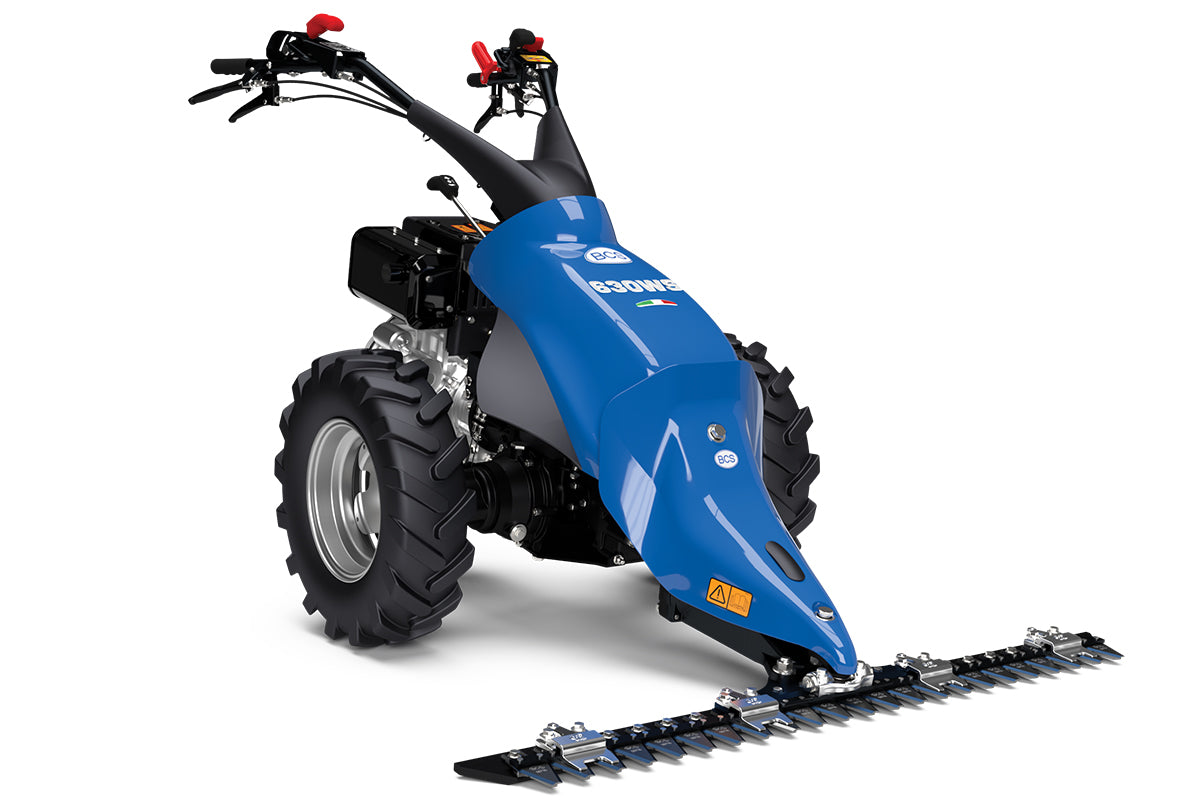

  • BCS 630WS Bank Commander with Power Scythe
BCS 630WS Bank Commander

BCS 630WS Bank Commander

£5,145.00
£5,145.00

The BCS 630WS is a complete grassland management machine designed for those who need a go-anywhere unit capable of undertaking a number of grass cutting and clearing tasks.

Fitted with the Honda GX390 Banks engine, this machine can cut on steep slopes up to 40°.

This is the power unit only. Implements are available separately.

0 in stock

BCS Products are subject to long delays.

Book a Free Demonstration
8HDCK000

Free Shipping Over £250*

30 Day Money Back Guarantee

Hassle Free Warranty

Description

Now fitted with the patented BCS PowerSafe® clutch, the BCS 630WS features a heavy duty drive system, a low centre of gravity and simple controls. It can be fitted with a choice of implement heads for a range of tasks including grass cutting and clearing, estate maintenance and snow clearing.

The powerful Honda GX390 Banks engine combined with the clutch/brake steering system and large agricultural wheels enables the 630WS to effortlessly cut vegetation in almost any location and on almost any terrain, including slopes up to a 40° gradient.

The BCS 630WS also features a useful travel speed which makes getting the machine to site swift and easy. An optional implement quick coupling system is also available enabling implements to be changed quickly and without the need for any tools.

The BCS 630WS Bank Commander is supplied as a power unit only. It can operate a wide variety of implements including scythe cutter bars, flail mower, rotary mowers, hay rake and even a mini baler.

There are also different tyre options available for different ground conditions including floatation tyres for wet or boggy environments and turf tyres for lawned areas.

Specifications

Engine

Honda GX390 Banks

Brakes

Clutch / Brake steering system & Parking brake

Wheels

5.00 x 10 Agricultural

Weight

125kg

Dimensions

200cm x 89cm (Wheels)/ 63cm (Handlebars) x 99cm

Warranty

3yr Domestic / 2yr Commercial

Gears

3 Forward & 3 Reverse

Maximum Gradient

40 degrees

Cutting Heads

Available Separately

Diagrams Brochure Manual

Features

Patented Hydraulic Clutch

The patented Powersafe clutch offers unrivalled levels of performance and reliability. The disc inside the clutch are forced together using hydraulic power to provide instant torque and efficient transfer of power. Importantly this also means that the wheels and working implement stop very quickly when the operator presence lever is released.

Implements for the BCS 630WS

Click on the link below to see which implements and accessories fit on the BCS 630WS Bank Commander

Click here for implements

3 Forward & 3 Reverse Speeds

The BCS 630WS is designed to be used with the handlebars positioned over the engine. The machine features multiple working speeds allowing the operator to efficiently navigate different conditions and applications.

Honda Banks Engine

The BCS 630WS is powered the Honda banks engine. Specifically for use on steep slopes this engine features a special one-way valve to guarantee optimal lubrication on slopes, a membrane fuel pump to ensure an optimal fuel flow, and a maximum fuel level indicator and inner-vent carburettor to avoid overfilling and to guarantee safe operation under all conditions.

Gears

One of the main reasons that the BCS 630WS uses the all gear drive system is that it efficiently transfers the power from the engine to the wheels and power take off. Fully hardened, the gears are extremely durable and last for many years.

Strong PTO Drive

The BCS range of two wheel tractors use a 3 pin claw system to transfer the power from the engine to the working implement. This system is extremely strong and ensures that the power unit has an extremely long lifetime
