Free Swinging Blade Cartridge 680100 for LS42C1
  • Free Swinging Blade Cartridge 680100 for LS42C1
LS52B1 Scarifier Quick Release Rotor Cartridges

LS52B1 Scarifier Quick Release Rotor Cartridges

£370.00
£370.00

We offer a range of rotor cartridges for your CAMON LS52 Lawn Scarifier.

Our upgraded models feature a quick release cartridge system and each cartridge is supplied with all the fittings required to make the job of changing from one to another as quick as possible.
Cartridge
Book a Free Demonstration

Free Shipping Over £250*

30 Day Money Back Guarantee

Hassle Free Warranty

Description

New for 2025 is the quick release cartridge system. This new and improved design makes changing cartridges much quicker and easier than previously. Choose from the following cartridges:

• Free Swinging Blades
• Verticutter Blades
• Spring Rake
• Fixed Blades
• Fixed Blades with HardEdge
• Renovation Blades
• Renovation Blades with HardEdge
• 'Stay Sharp' Blades

Specifications

Weight

Dimensions

Warranty

Features

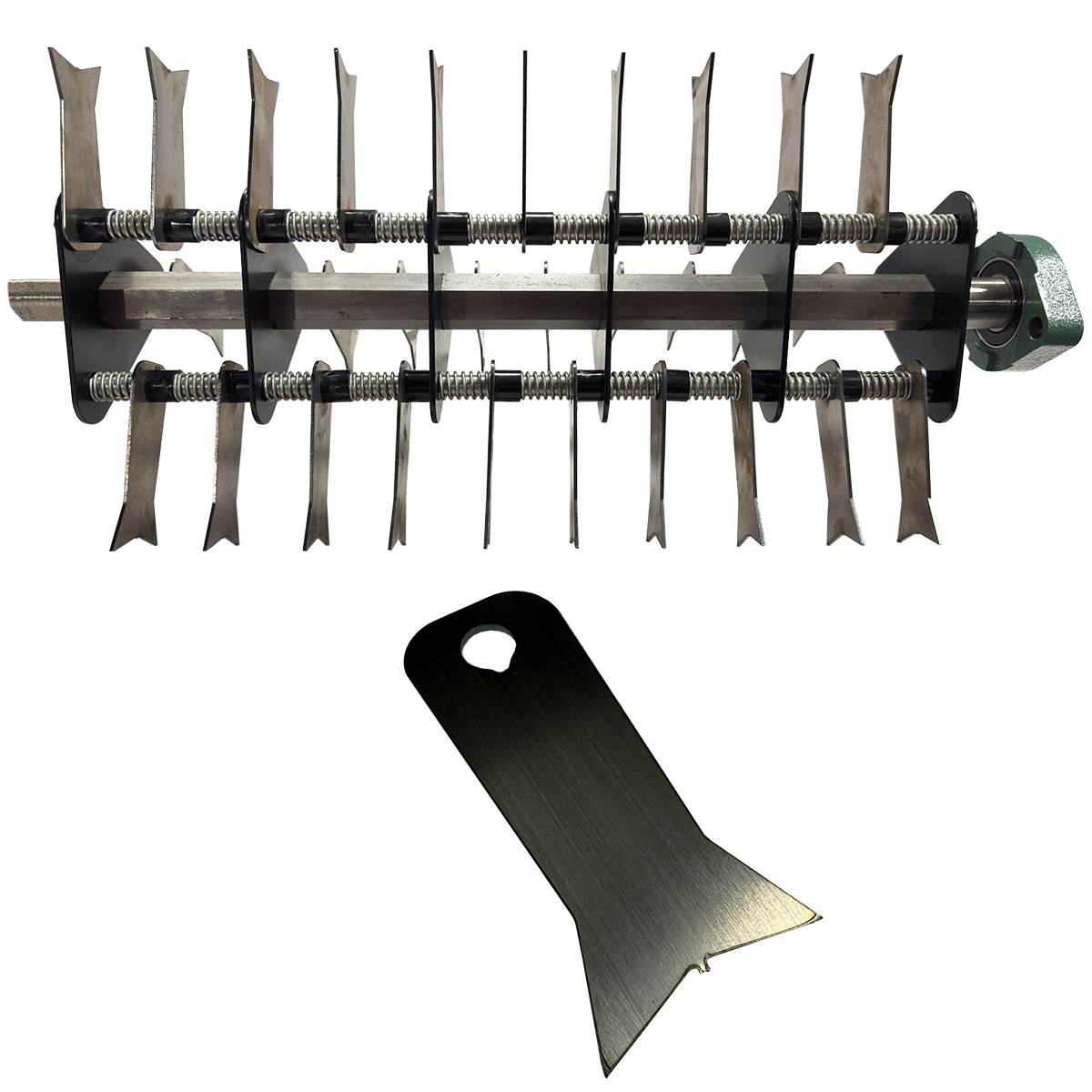

Free Swinging Blades

This cartridge is used above the soil surface and through the layer of thatch (dead grass) that accumulates between the healthy green grass and the soil.

The fish-tailed design of the blades helps to hook out unwanted thatch and moss and allows more water, nutrients and air to the healthy grass and roots.

This rotor is not designed to be used into the soil but can be used on lawns that have not been scarified before and have a dense thatch layer.

Verticutter Blades

Also known as the grooming reel, the Verticutter is predominantly designed for clearing lawns of weed grasses.

The Verticutter blades are designed to be used just above the thatch layer so will not impact the soil. This cartridge will remove weed grasses and annual meadow grass seed heads to prevent thatch forming and promote finer grasses, so increasing turf density and thickening the lawn.

It can also be used before mowing to create an upright lawn, resulting in a neater and more uniform cut.

Click here for implements

Spring Rake

The spring rake has the ability for all year-round scarification, allowing lawns to be manicured into a superb condition.

The durable free-swinging springs are each 2.5mm thick and are mounted on 3 rods separated with spacers. Each rod layout is alternating to provide maximum coverage.

The heat-treated steel spring tines have an angled tip to pull unwanted thatch and moss from the lawn without aggressively disrupting the healthy growing grass.

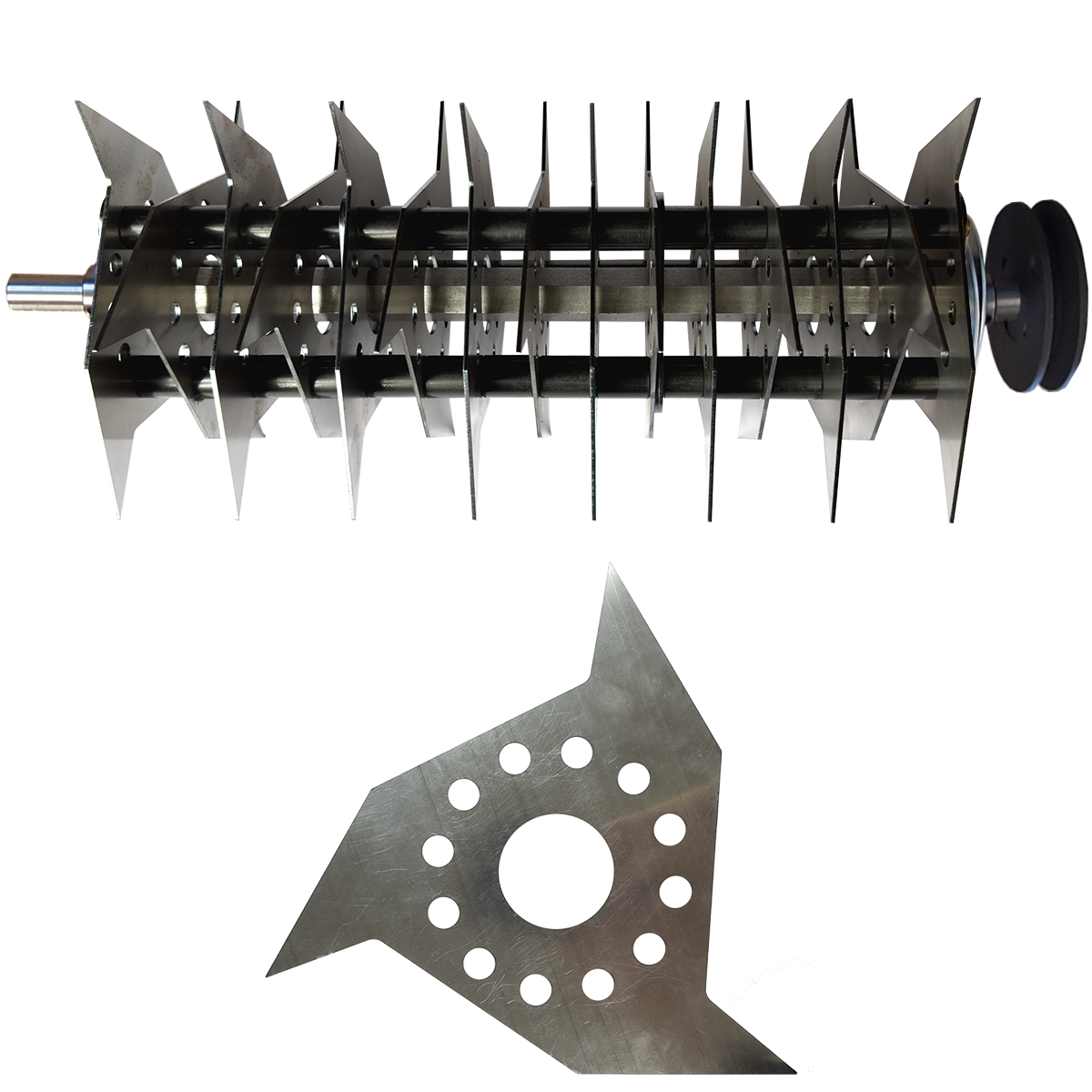

Fixed Blades

For lawns where slitting is required, the fixed blade cartridge is the answer.

Mounted with heavy-duty 2mm thick, fixed blades, the fixed blades will perform deep scarification. Each blade has three edges and they are mounted on a central rod with an alternating layout. The blades are spaced evenly with 26mm wide spacers.

The fixed blades are thicker than the free-swinging blades, and because they’re in a fixed position on the rotor, this cartridge is ideal for virtually any lawn.

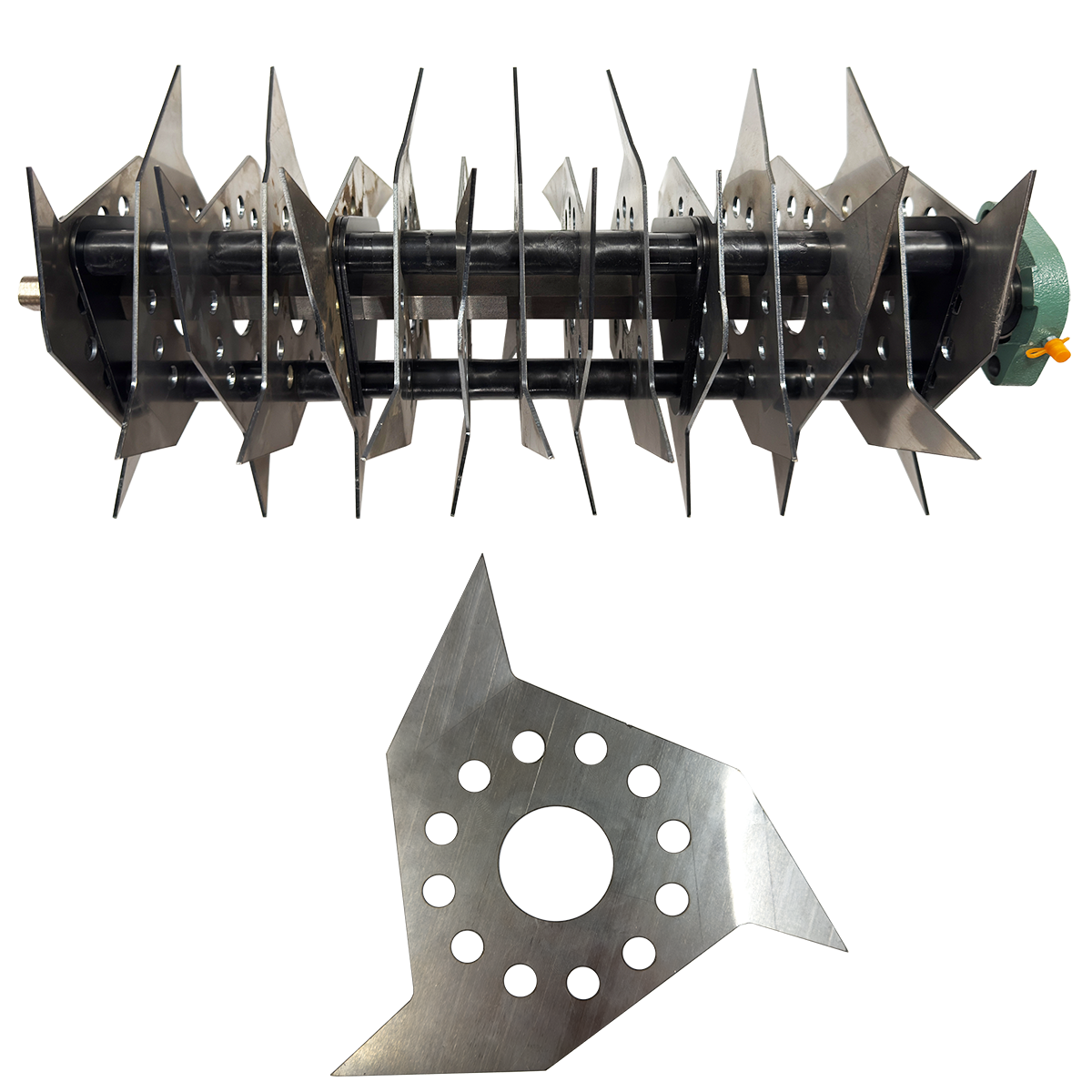

Renovation Blades

This cartridge is designed to be used in situations where the old lawn needs to be completely renewed.

The heavy-duty 2mm thick blades help to rip out old grass prior to renewal.

The blades mounted on a central rod and secured in their fixed position by three rods in an alternating layout. Each blade has three tips - one straight, one angled to the left, and one angled to the right to help provide maximum coverage. The blades are spaced evenly with 26mm wide spacers.

'Stay Sharp' Blades

This cartridge is designed to be used for jobs that would be too much for the other cartridges and blades.

The blades on the Stay Sharp cartridge are the thickest and strongest we supply. They are free-swinging and made from 3mm thick Hardox® with a pointed tip so they will tackle the toughest conditions and keep sharp for longer.

The blades are mounted on 3 rods separated with spacers and each rod layout is alternating to provide maximum coverage.

Downloads

Diagrams Brochure Datasheet Manual
