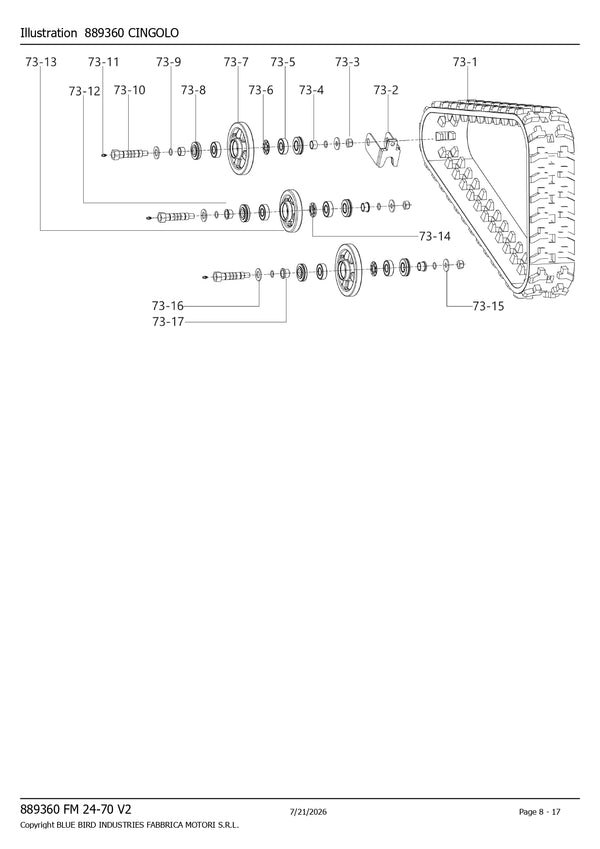

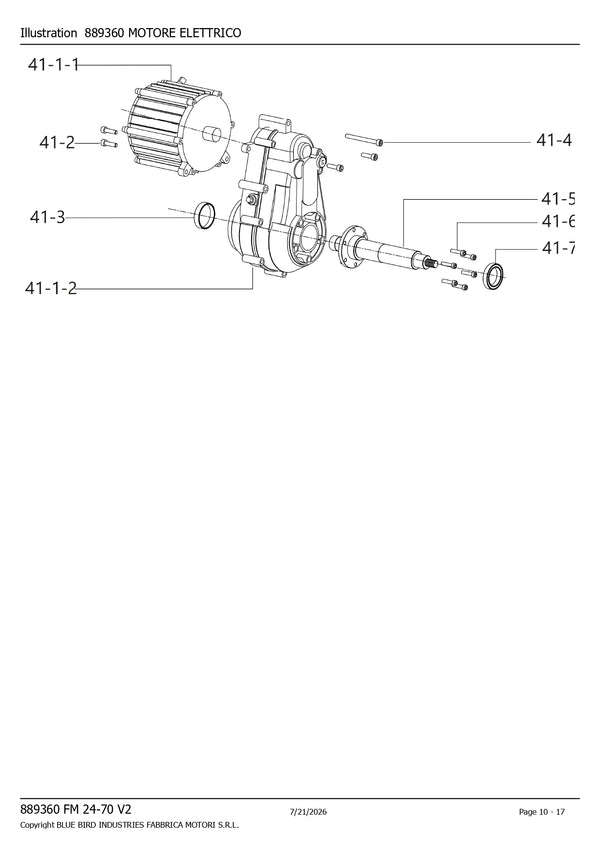

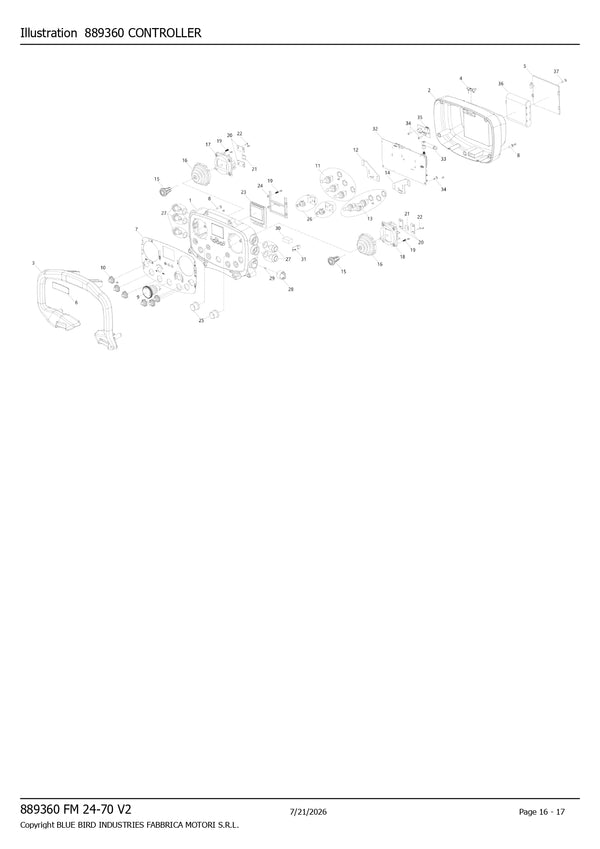

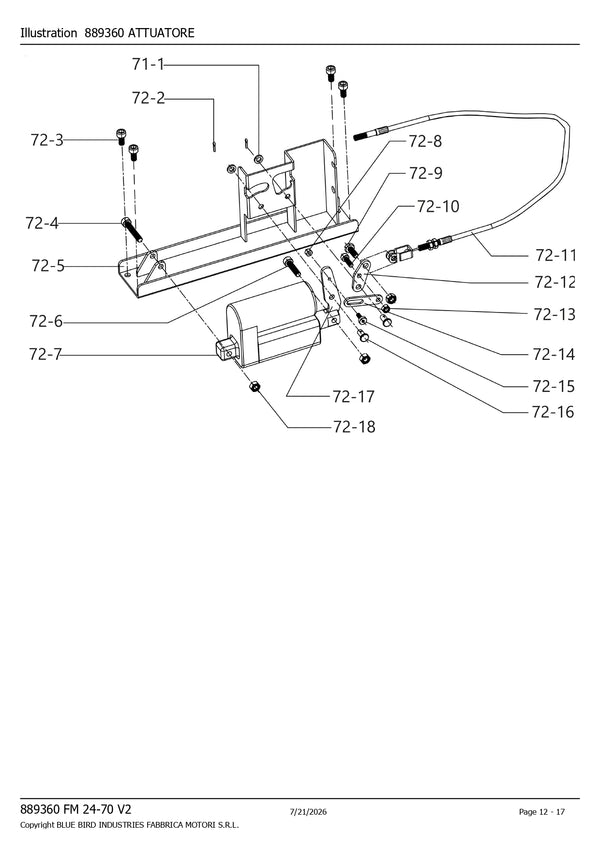

FM 24-70 V2 Parts Diagram Page 1
Pinch to zoom • Drag to pan
Scroll to zoom • Drag to pan
1
3020100117200 - Cover FM 24-70
2
3020100115300 - Upper Cover Closure Plate FM 24-70
3
3020100115700 - Right Grille
4
3020100115400 - Right Panel
5
3100110350000 - Screw FM 24-70 M6x14
7
3105201240000 - Screws M6X18 FM 23-70
8
3103000143500 - Counter Nut M6 FM 23-53 Self-locking
9
3020101700000 - Throttle Piston FM 23-70
10
3052100000200 - Hinge FM 23-70
11
3100110350000 - Screw FM 24-70 M6x14
12
3100110350000 - Screw FM 24-70 M6x14
13
3100110350000 - Screw FM 24-70 M6x14
14
3020100115500 - Left Panel
15
3020100115500 - Left Panel
16
3020100101000 - Quick Release FM 23-70
18
3020100116500 - Battery Plate FM 24-70
19
3020100116600 - Rear Door
20
3020100716000 - Rear Lock
21
3020100117700 - Ventilation Grille FM 24-70
22
3020100137000 - Light Protection Cage
23
3020101830000 - Duct FM 24-70
24
5030500080000 - Bluebird Battery 12V
25
7011600001209 - Motherboard
26
3020100110660 - Battery Compartment
27
3010600890000 - Fuel Cap FM 24-70
28
3020100116200 - Fuel Tank FM 24-70
31
2070100010000 - FM23-53 Antenna
32
3020100894000 - Switch
33
3030336051000 -USE 4010900054000 - Beacon FM 24-70
34
3020102104800 - Cable Connectors FM 23-70
35
