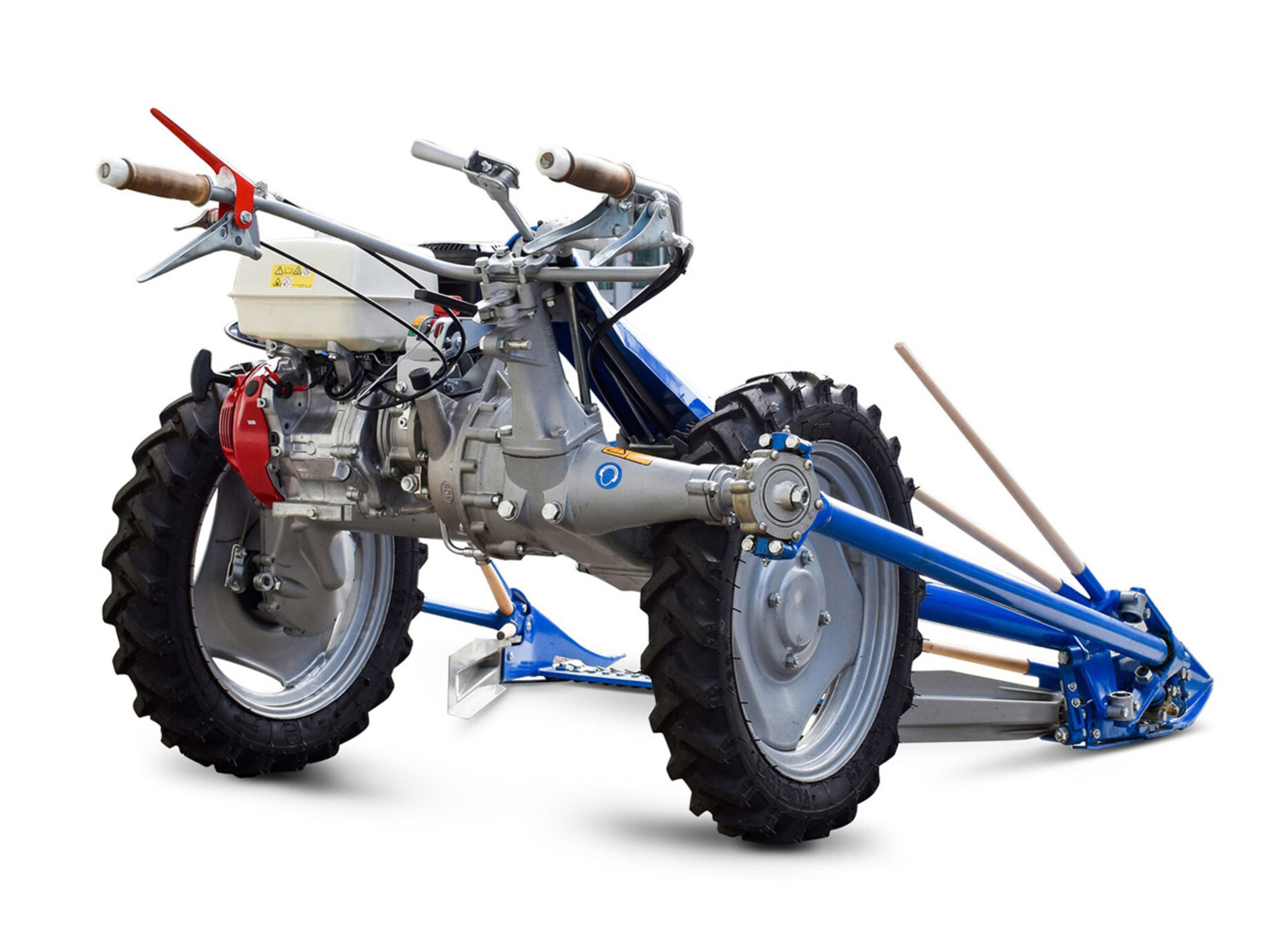

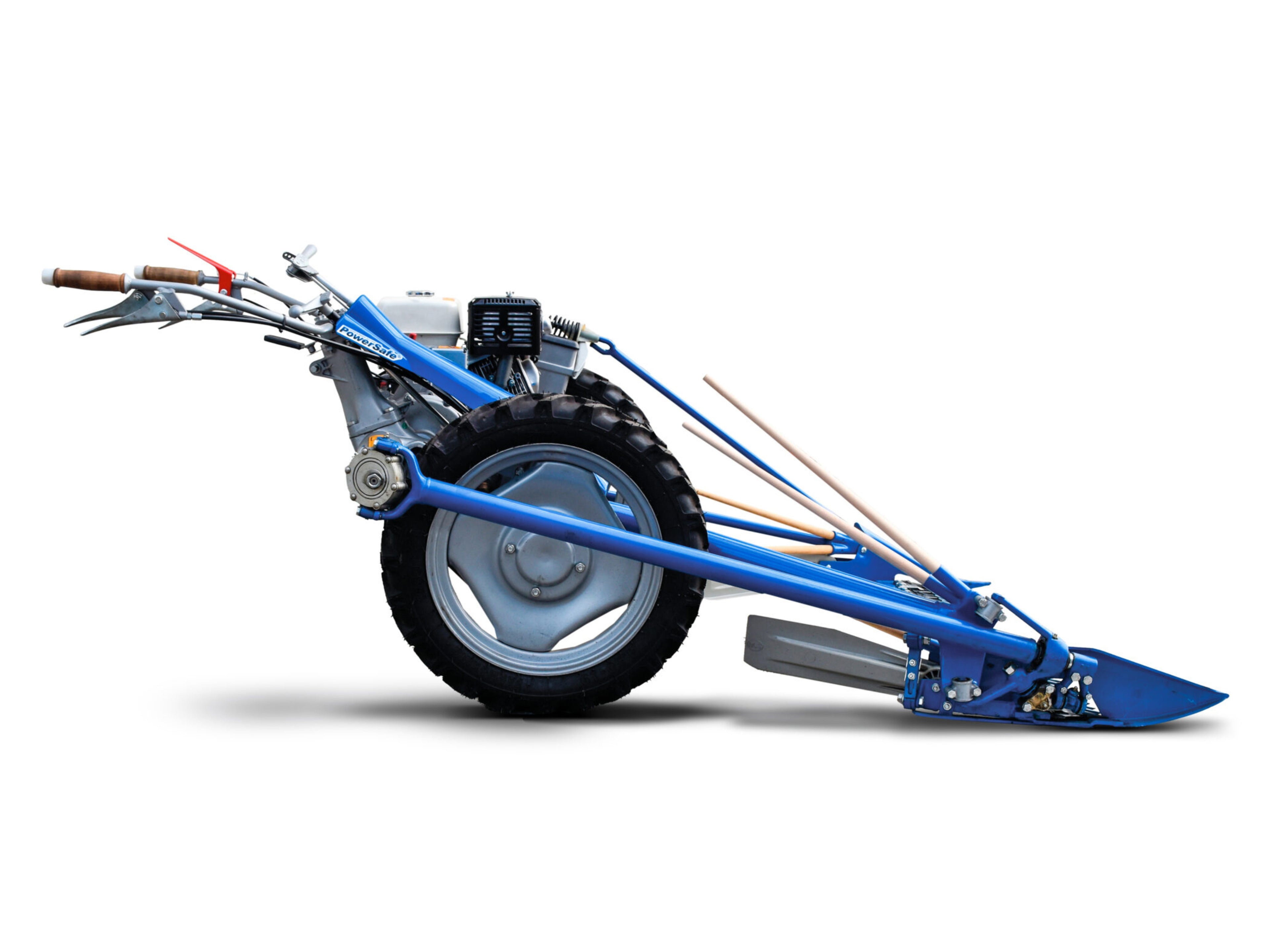

BCS 622 PowerSafe® Cutter Bar

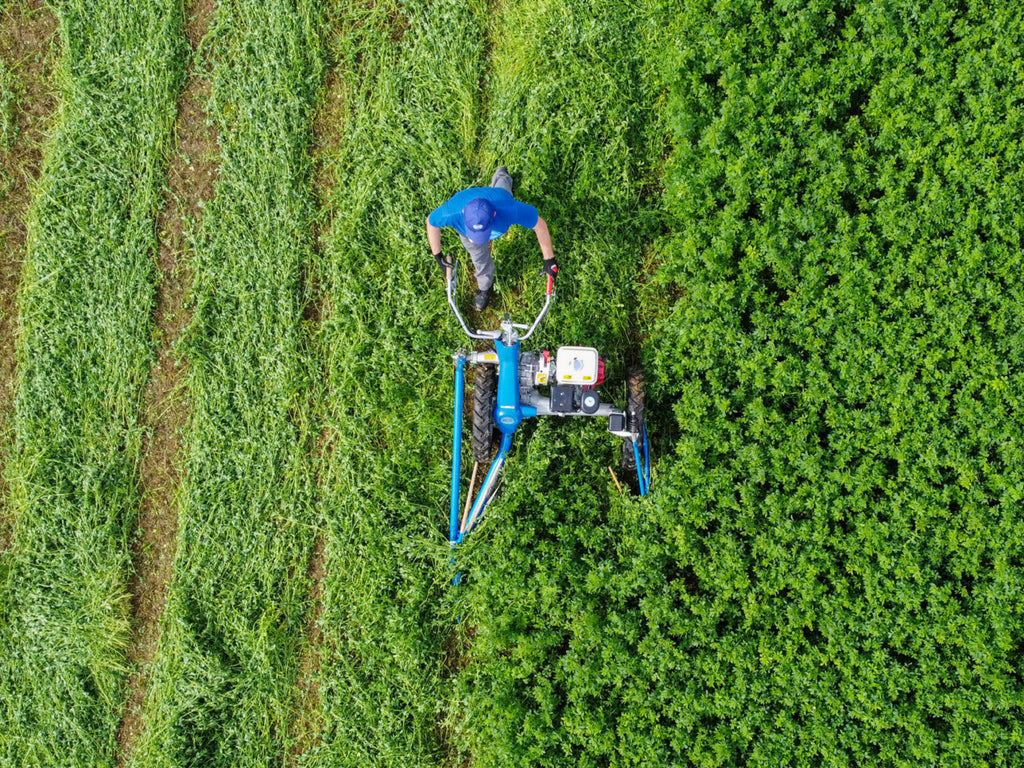

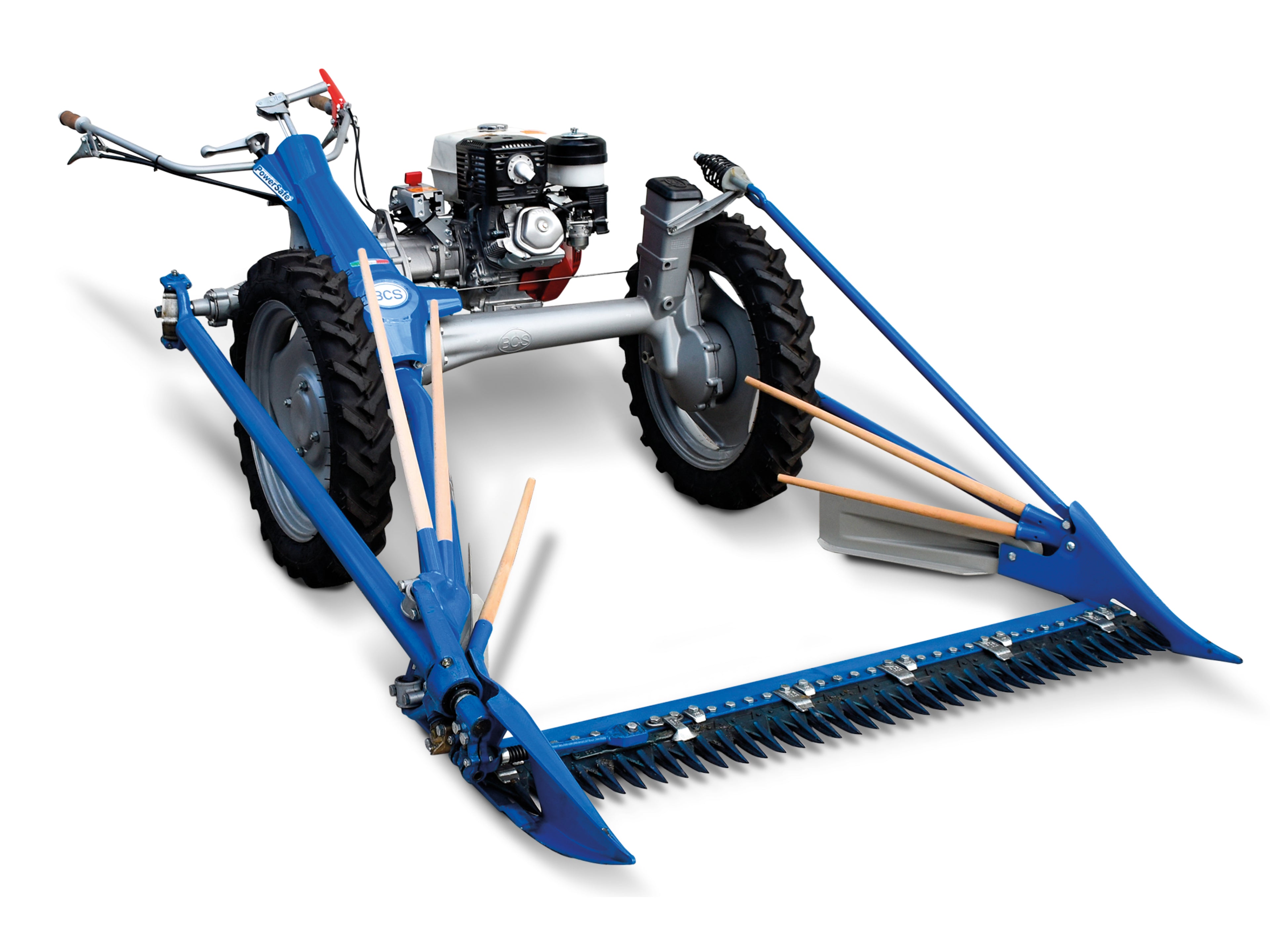

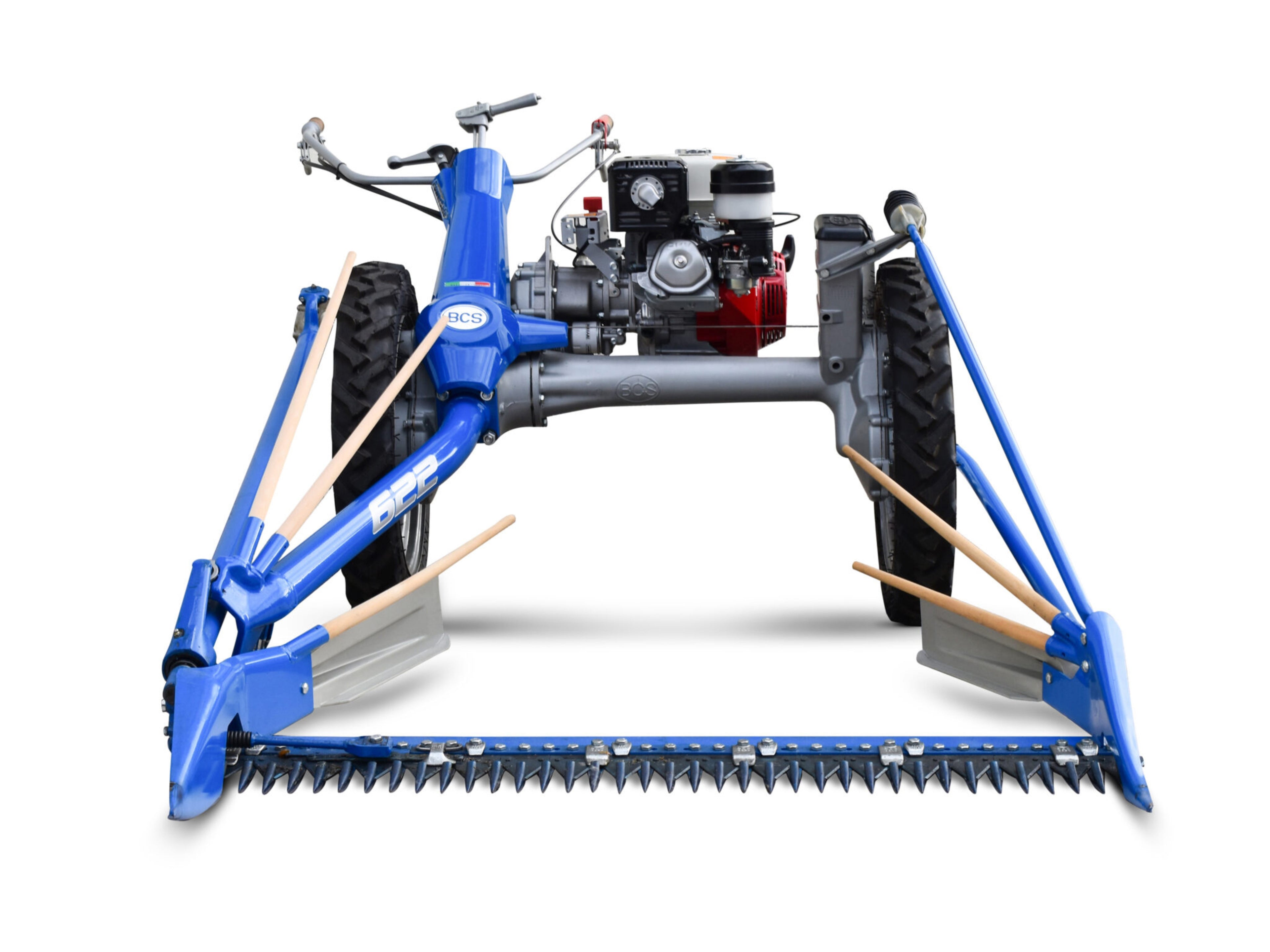

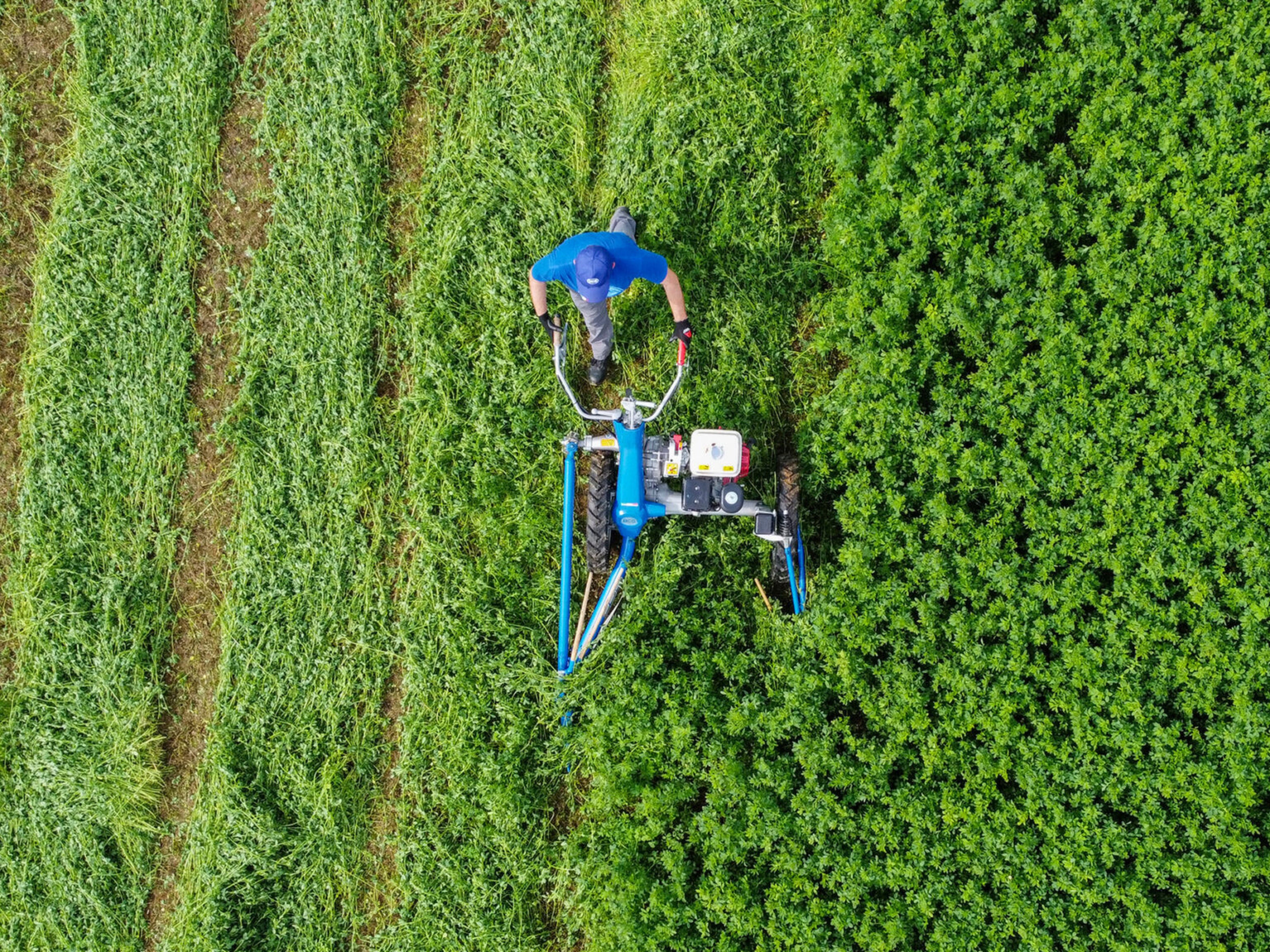

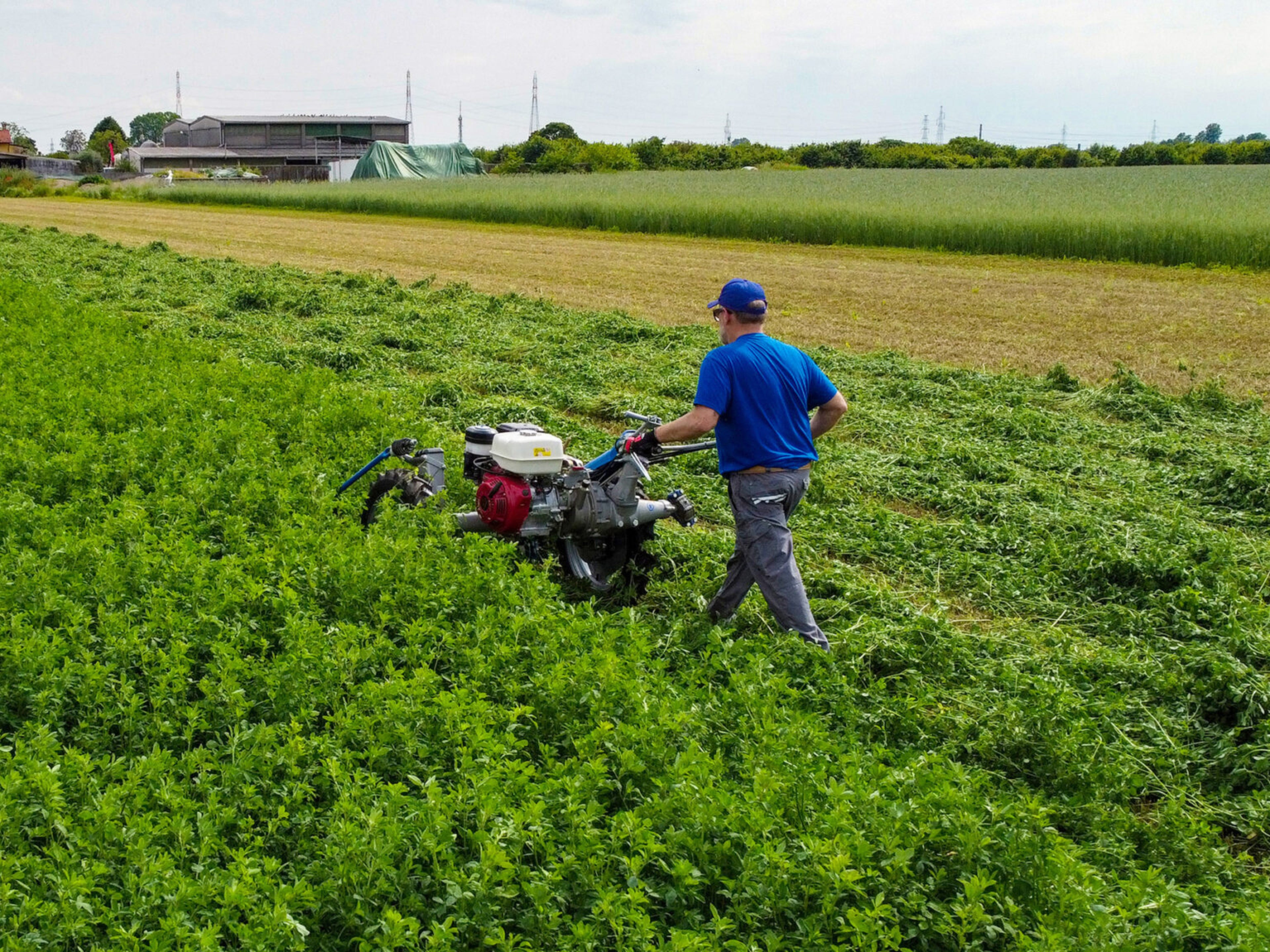

The 622 PowerSafe® with Scythe Cutter Bar is a motor mower with a raised axle and lateral drive for mowing forage and long grasses.
The BCS 622 is intended for growers where the much bulkier and more expensive combine harvesters could not work.
SKU: 804CF421PB
Description
The 622 PowerSafe® is a motor mower intended for growers where the much bulkier and more expensive combine harvesters could not work.
Designed for mowing forage and cutting grass, the 622 is equipped with a PowerSafe® multi-disc clutch in an oil bath and the option of two petrol engines.
The swath boards and wooden sticks deflect the mowed grass under the deck of the mower so that it is not trampled by the wheels. The cutter bar is equipped with springs on the left side to adapt to the roughness of the ground.
Specifications
Weight
278kg (with 127cm cutter bar)
Dimensions (L x W x H)
tbc
Warranty
3yr Domestic / 2yr Commercial
Engine
Honda GX390 / Briggs & Stratton Vanguard
Brakes
Steering Brakes
Differential
Locking Differential
Scythe Cutter Bar
127cm (40")
Wheels
4.50 x 19 x 26
Gears
4 forward & 1 reverse
Features

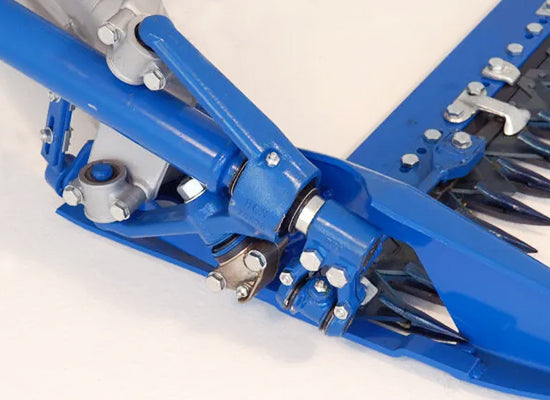

Oscillating Assembly
This improves the cutting effectiveness by allowing the blade to move independently of the machine. It also transforms the alternating movement of the rigid drive shaft into alternating rectilinear motion of the blade.

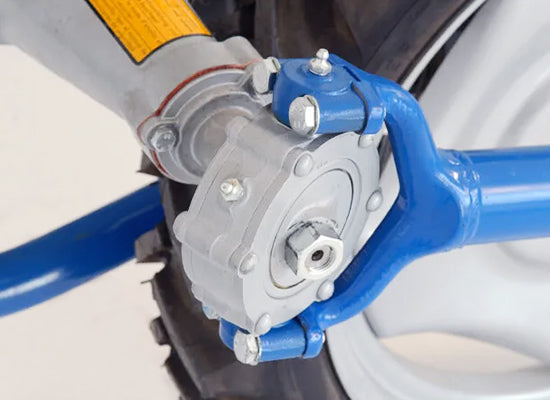

Oscillating Head
For added reliability the oscillating head transforms the rotary motion of the shaft from the engine into an alternating motion.

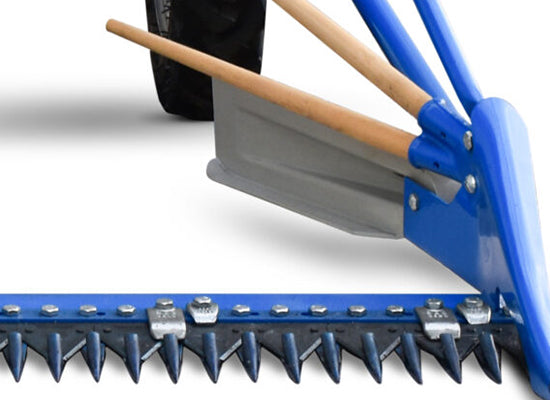

Cutting Unit
The cutter bar is made for heavy, continuous use and is fitted with middle fingers. The swath boards and wooden sticks divert the cut material under the axle so avoiding being trampled by the wheels.
Working Speeds
The Reaper features four forward working speeds and a single reverse speed.
Patented Hydraulic Clutch
The patented PowerSafe® clutch offers unrivalled levels of performance and reliability. The disc inside the clutch are forced together using hydraulic power to provide instant torque and efficient transfer of power. Importantly this also means that the wheels and working implement stop very quickly when the operator presence lever is released.
Top of the Range Engines
The BCS 622 is powered by a choice of top name petrol engines. Choose from the Honda GX390 (8.kW/11.7hp) or the Briggs & Stratton Vanguard (11.9kW/16hp).
