The 615SL has the option of a Honda GP160 or a Honda GX270 engine, with each machine able to operate a choice of scythe cutter bars. The GX270 option enables the power unit to be able to operate a variety of other implements too including the double reciprocating (duplex) scythe cutter bar

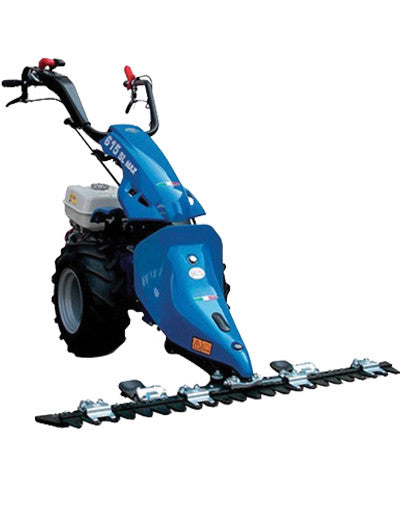

BCS 615SL Action Power Scythe
This product is not available to buy and is for reference only.
The BCS 615SL can tackle 1-5 acre plots and can be fitted with a large 135cm width cutter bar.
Why the BCS 615SL Crusader Power Scythe?

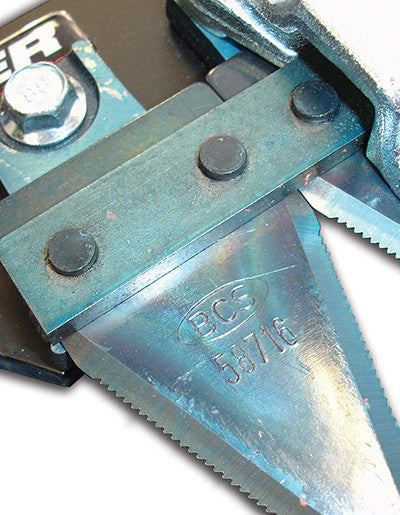

The BCS 615SL is simple to manoeuvre and straightforward to operate, even in confined areas. The driven wheels and powerful cutting teeth mean that user input is kept to a minimum; you let the scythe do the work for you.
A locking differential makes the 615SL extremely manoeuvrable and capable of being used with many useful implements.
The 615SL has the option of a Honda GP160 or a Honda GX270 engine, with each machine able to operate a choice of scythe cutter bars. The GX270 option enables the power unit to be able to operate a variety of other implements too including the double reciprocating (duplex) scythe cutter bar.
Implements and Attachments
The BCS Crusader Power Scythes are capable of operating a range of other front-mounted implements.
However, unlike the Two Wheel Tractors, the handlebars on these machines do not rotate 180° so they cannot operate the ground cultivation attachments.
See the IMPLEMENTS tab above for more details.
BCS 615SL Engine
| Model | Honda GP160 | Honda GX270 |
| Fuel | Petrol | Petrol |
| Net Power Output | 4.8hp / 3.6kW @3600rpm | 8.4hp / 6.3kW @3600rpm |
| Starting | Recoil | Recoil |
| Fuel Tank Capacity | 3.1L | 5.3L |
| Fuel Consumption | 1.4L per hour @3600rpm | 2.4L per hour @3600rpm |

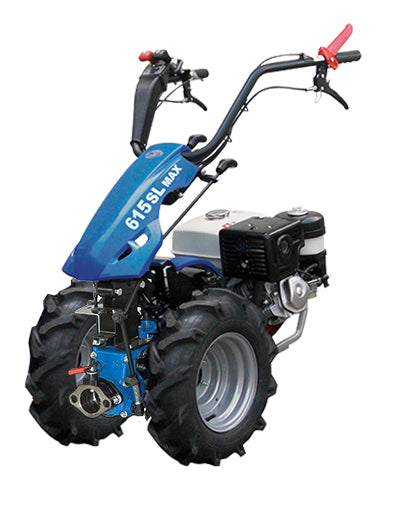

BCS 615SL Power Unit
| Gears | 2 forward & 2 reverse | ||
| Speeds | Forward: | I: 2.77 | II: 3.77 |
| Reverse: | I: 2.63 | II: 3.58 | |
| Differential | Locking differential | ||
| Wheels | 4.00 x 10 agricultural | ||
| Weight | 85 - 90kg | ||
| Dimensions | Length: | 180cm | |
| Width: | 64cm (at handlebars) | ||
| 56cm (at wheels) | |||
| Height: | 120cm | ||
| Warranty | Domestic use: | 3 years | |
| Commercial use: | 2 years | ||
BCS Scythe Cutter Bar
| Cutting Width | 80cm (32") | 100cm (40") | 115cm (45") | 135cm (53") | ||
| No of Blades | 15 | 19 | 23 | 27 | ||
| Drive Movement | Short oil bath | Short oil bath | Short oil bath | Long oil bath* | Short oil bath* | Long oil bath* |
| Weight | 37kg | 40kg | 42kg | 46kg | 44kg | 48kg |
*Only suitable for GX270 engine power unit.
