BCS 614 PowerSafe® Crusader Power Scythe
- Regular price Price ex VAT: £2,470.00
- Regular price Price inc VAT: £2,470.00
The BCS 614 Crusader Power Scythe is a single speed machine with the option of either an 80cm or a 100cm cutter bar. It's ideal for use in confined areas.
Why the BCS 614 Crusader Power Scythe?
The BCS 614 is a versatile power scythe offering a single working speed and a choice of cutter bar widths.
This makes the 614 is ideal for open areas of 1-3 acres, as well as for cutting areas where there are obstacles such as trees.
The 614 is the ideal entry-level power scythe, and offers great value for money especially as it is fitted with the cost-effective Honda GP160 engine option.
The 614 can also be fitted with a power brush for sweeping leaves in autumn and snow in winter.
Implements and Attachments
The BCS Crusader Power Scythes are capable of operating a range of other front-mounted implements.
However, unlike the Two Wheel Tractors, the handlebars on these machines do not rotate 180° so they cannot operate the ground cultivation attachments.
See the IMPLEMENTS tab above for more details.

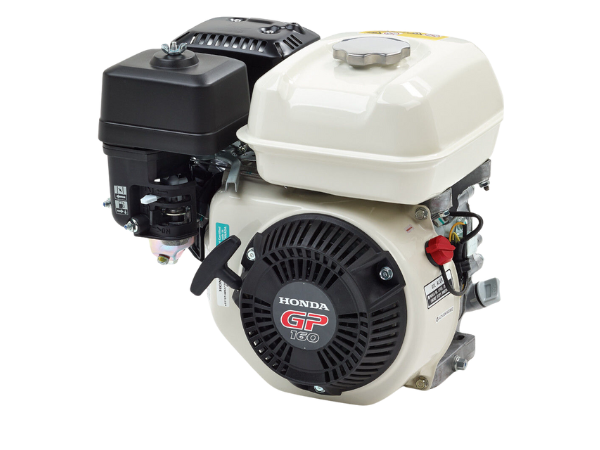

BCS 614 Engine
| Model | Honda GP160 |
| Fuel | Petrol |
| Net Power Output | 4.8hp / 3.6kW @3600rpm |
| Starting | Recoil |
| Fuel Tank Capacity | 3.1L |
| Fuel Consumption | 1.4L per hour @3600rpm |
BCS 614 Power Unit
| Gears | 1 forward & 1 reverse | |

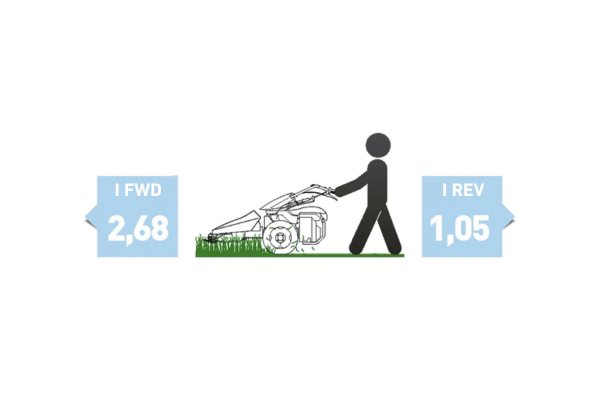

| Speeds | Forward: | I: 2.68 |
| Reverse: | I: 1.05 | |
| Wheels | 4.00 x 8 agricultural | |
| Weight | 62kg | |
| Dimensions | Length: | 180cm |
| Width: | 64cm (at handlebars) | |
| 44cm (at wheels) | ||
| Height: | 120cm | |
| Warranty | Domestic use: | 3 years |
| Commercial use: | 2 years | |
BCS Scythe Cutter Bar
| Cutting Width | 80cm (32") | 100cm (40")) |
| No of Blades | 15 | 19 |
| Drive Movement | Short oil bath | Short oil bath |
| Weight | 37kg | 40kg |
Parts Diagrams
BCS 600 PowerSafe® Crusader & Commander Diagrams - Models from 2020
BCS Crusader & Commander (600 Series) Diagrams - Pre-2020 Models
BCS Implements & Attachments Diagrams
Operating Manuals
BCS 600 Series Power Unit Operating Manuals
BCS Implements & Attachments Operating Manuals
Technical Bulletins
- Features
-
Why the BCS 614 Crusader Power Scythe?
The BCS 614 is a versatile power scythe offering a single working speed and a choice of cutter bar widths.This makes the 614 is ideal for open areas of 1-3 acres, as well as for cutting areas where there are obstacles such as trees.
The 614 is the ideal entry-level power scythe, and offers great value for money especially as it is fitted with the cost-effective Honda GP160 engine option.
The 614 can also be fitted with a power brush for sweeping leaves in autumn and snow in winter.
Implements and Attachments
The BCS Crusader Power Scythes are capable of operating a range of other front-mounted implements.However, unlike the Two Wheel Tractors, the handlebars on these machines do not rotate 180° so they cannot operate the ground cultivation attachments.
See the IMPLEMENTS tab above for more details.
- SPECIFICATION
-
BCS 614 Engine
Model Honda GP160 Fuel Petrol Net Power Output 4.8hp / 3.6kW @3600rpm Starting Recoil Fuel Tank Capacity 3.1L Fuel Consumption 1.4L per hour @3600rpm
BCS 614 Power UnitGears 1 forward & 1 reverse Speeds Forward: I: 2.68 Reverse: I: 1.05 Wheels 4.00 x 8 agricultural Weight 62kg Dimensions Length: 180cm Width: 64cm (at handlebars) 44cm (at wheels) Height: 120cm Warranty Domestic use: 3 years Commercial use: 2 years
BCS Scythe Cutter BarCutting Width 80cm (32") 100cm (40")) No of Blades 15 19
Drive Movement Short oil bath Short oil bath Weight 37kg 40kg - IMPLEMENTS
