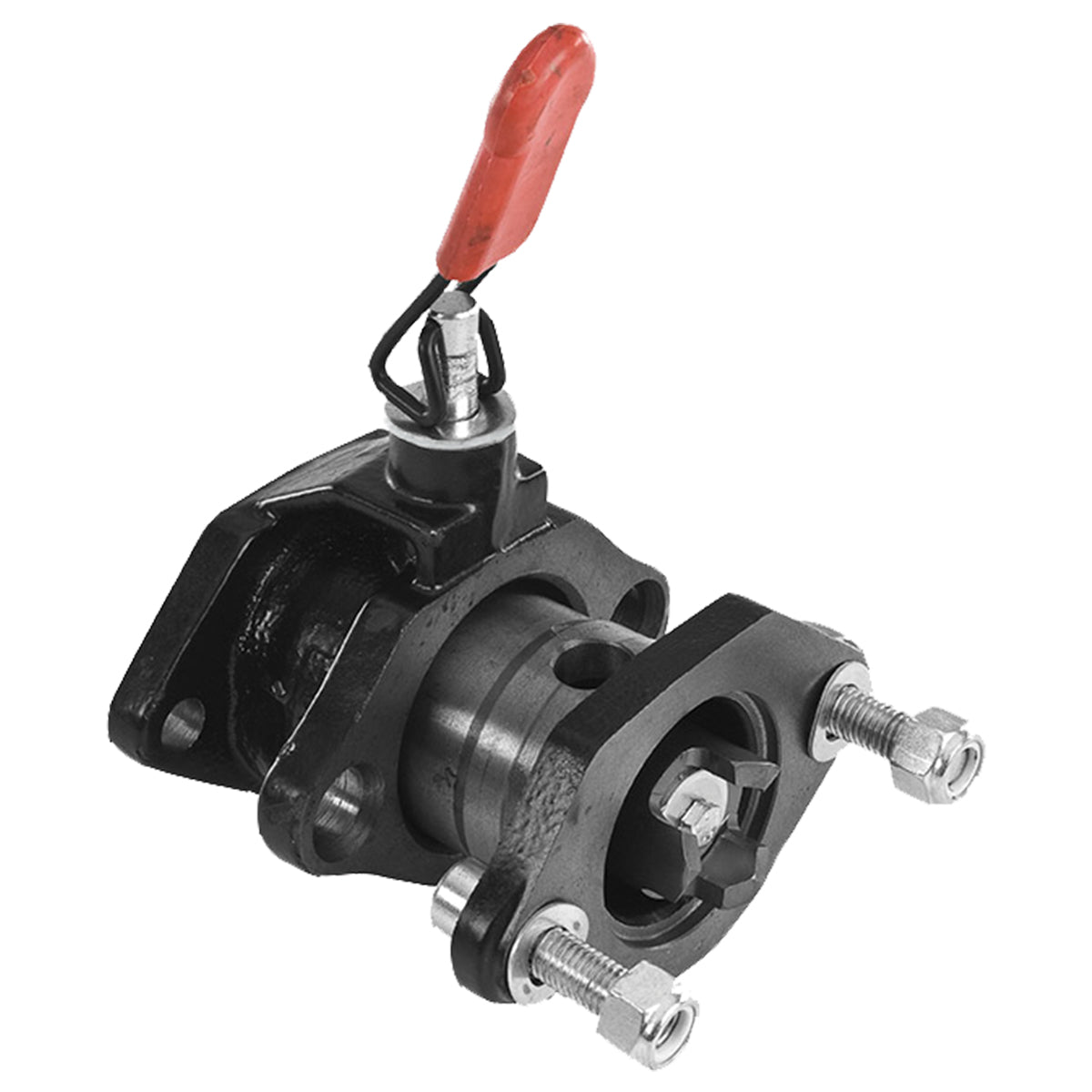

Implement Quick Coupling Assembly

The implement quick coupling assembly enables implements to be changed quickly and without the need for any tools.

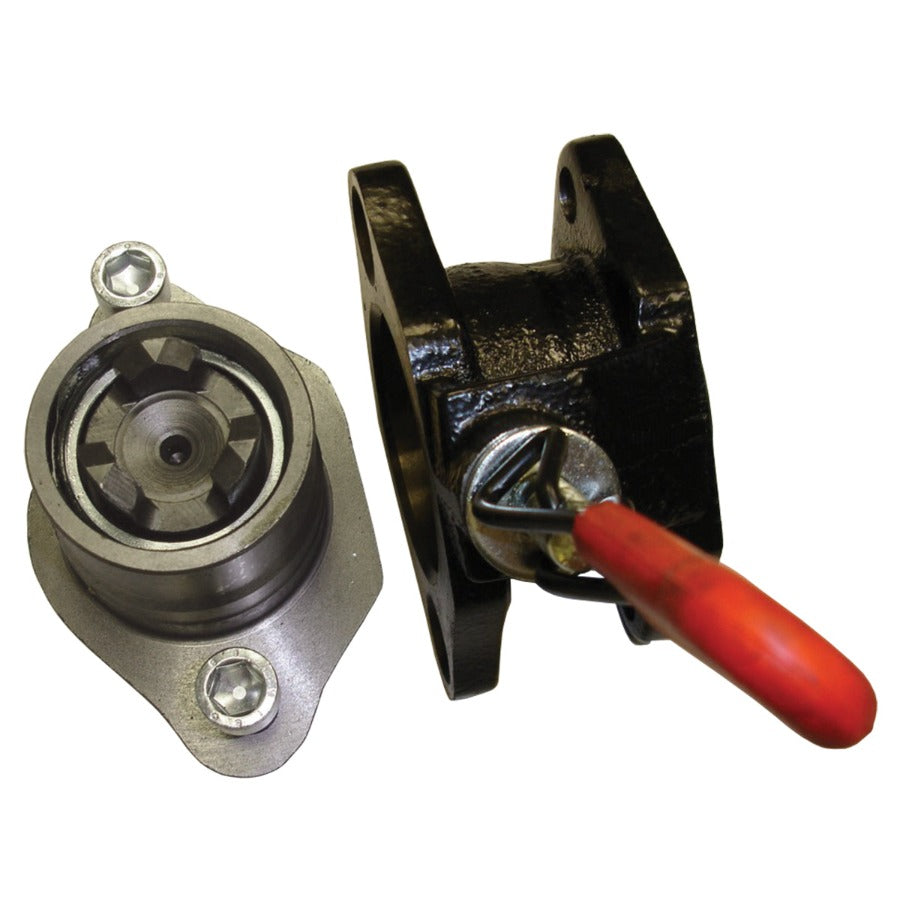

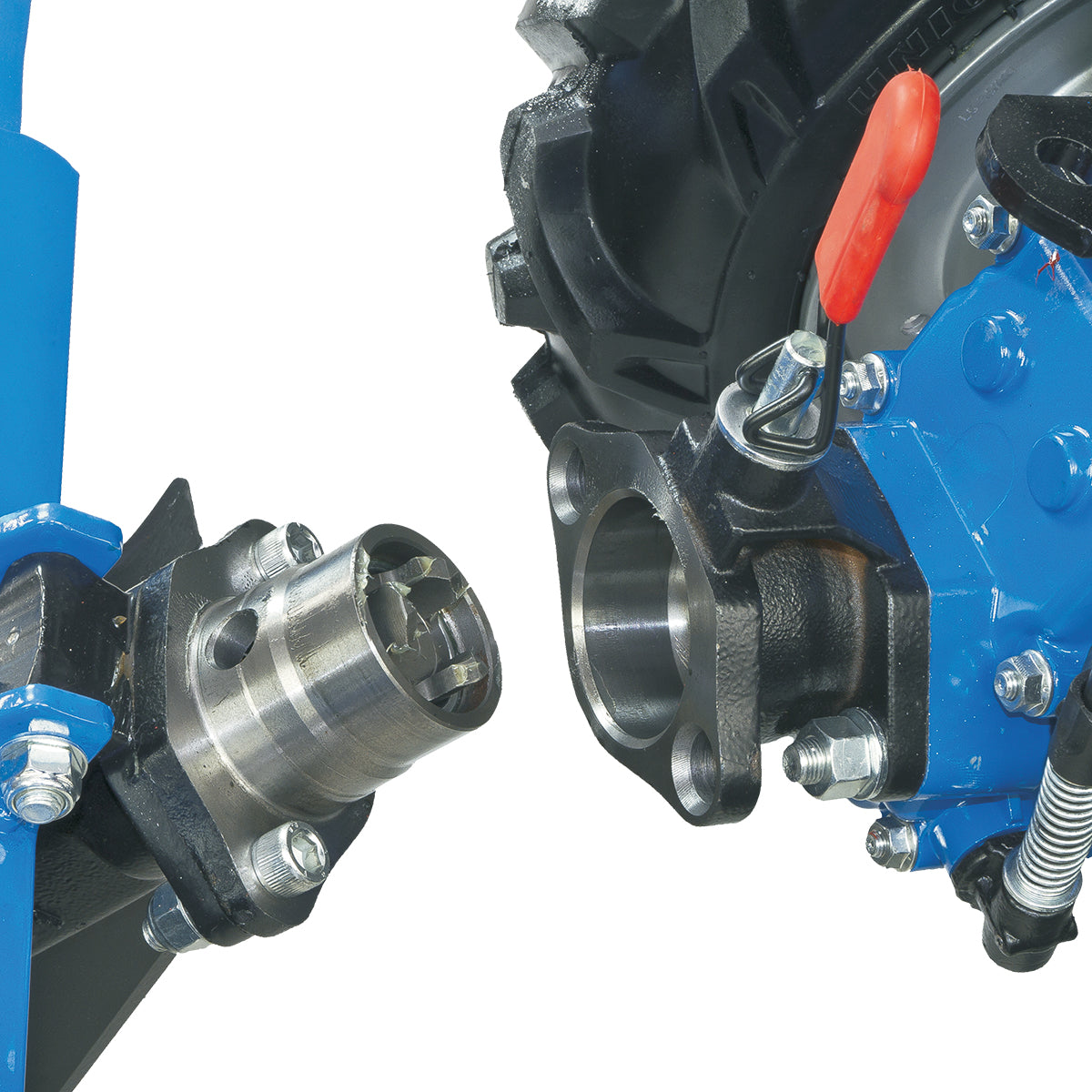

The assembly comprises two parts; one part fixes to the power unit and the other to the implement.

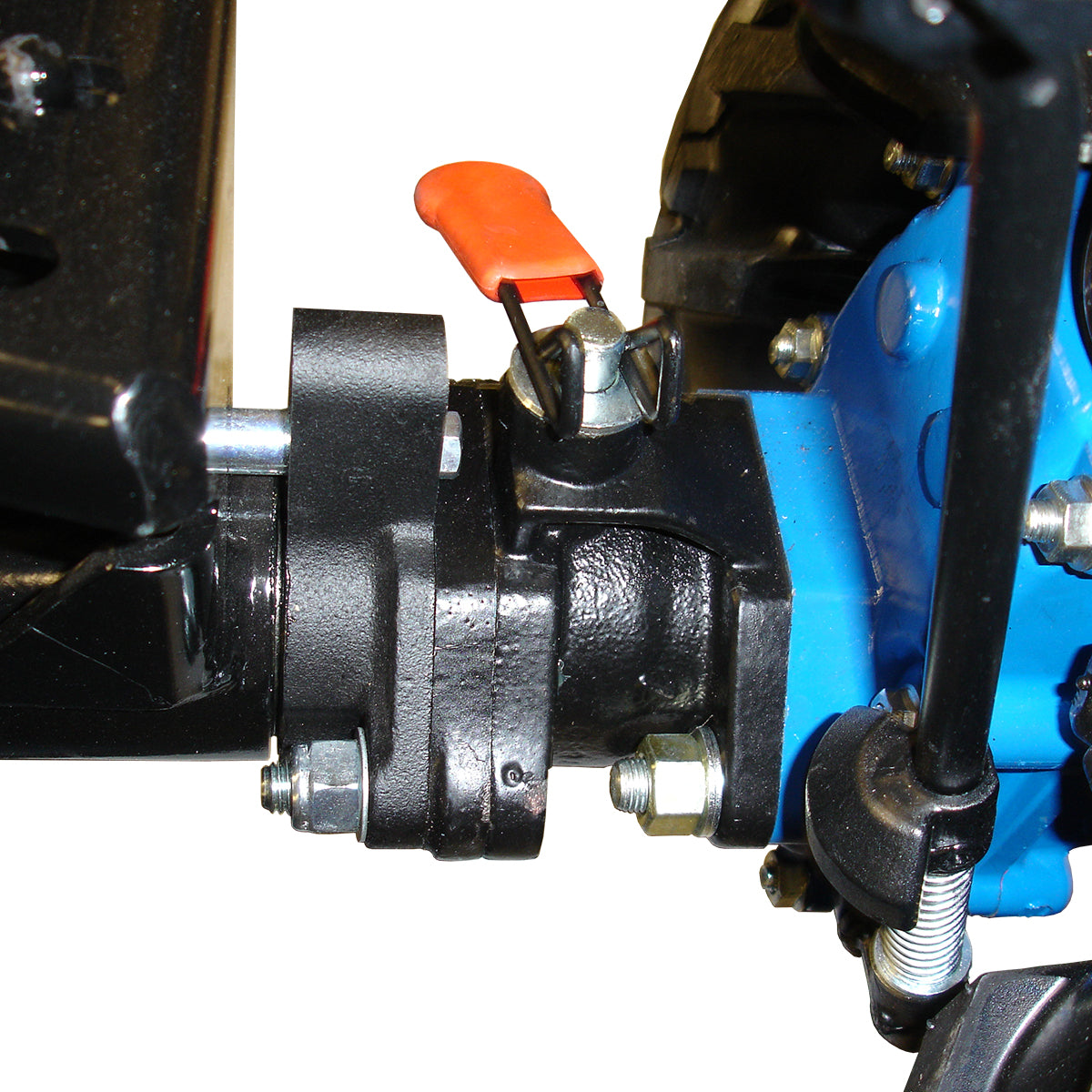

To remove the implement simply lift the red pin and slide the implement off.

For each additional implement, either an additional coupler or a blank coupler would be required. The type of coupler depends upon whether the implement is powered or not.

The BCS 660HY and 750 power units have inbuilt implement quick coupling, which is a different system to this. See here for details.
